3. Connect the PC Out connector to the PC graphics acceptor (for example, a
display).
4. Connect the Audio Out 5-pin terminal block to the balanced, stereo, audio
acceptor.
5. Connect the Remote 6-pin terminal block (pins 1, 2, 3, 4, and G) to up to four
remote, contact closure, input selector switches.
6. Connect the Remote 6-pin terminal block (pins Off and G) to a remote,
contact closure, mute switch.
7. If required, connect a PC/controller to the RS-232 port (see
and/or the Ethernet port (see
8. Connect the device to the mains electricity (not shown in
power the device on.
6.1

Connecting the Remote Selector and Mute Switches

You can connect:
Up to four remote switches to enable remote input selection and,
A remote output mute switch
The contact closure, remote selector pins operate in a similar way to the Input
Selector buttons.
Figure 4

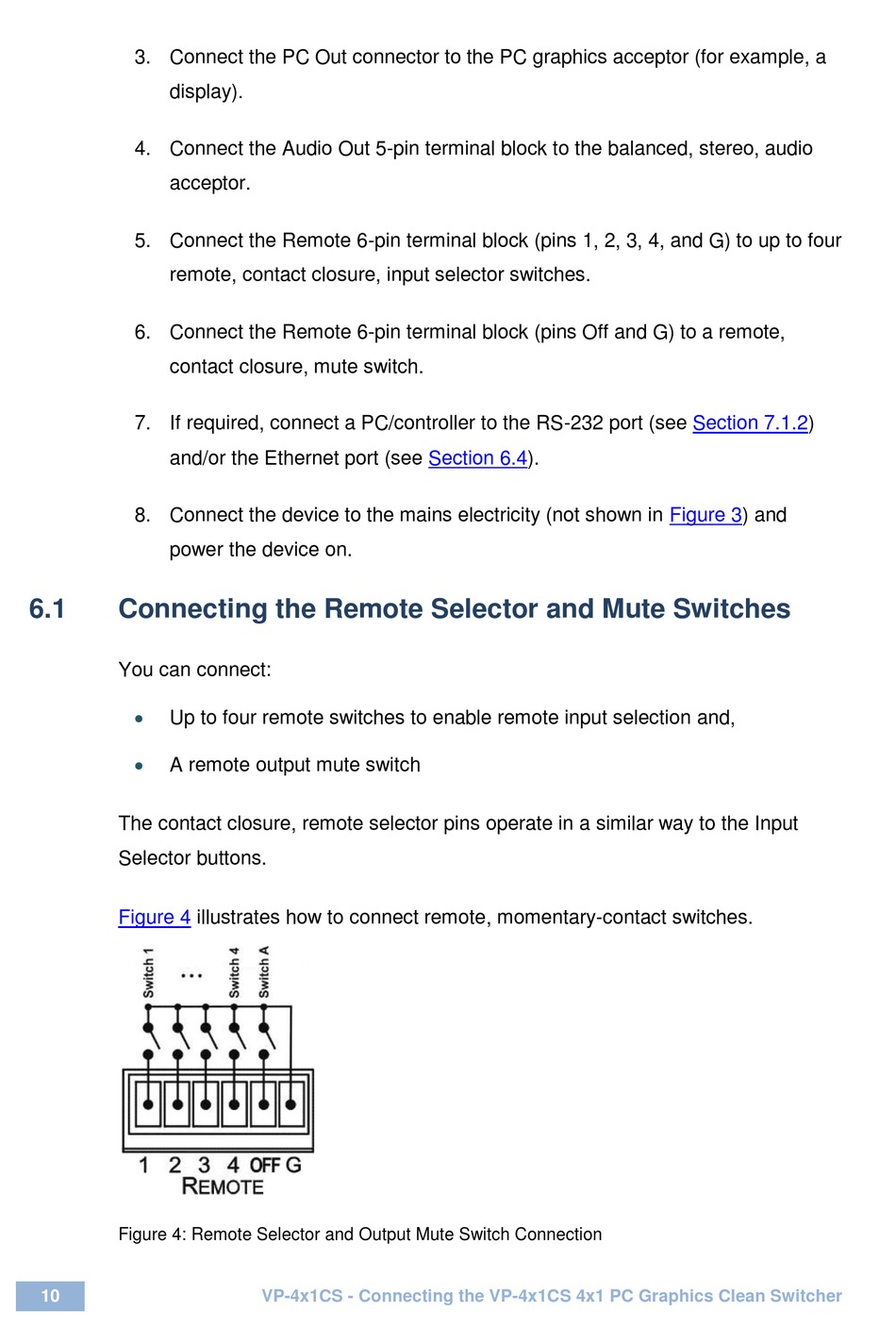

Figure 4: Remote Selector and Output Mute Switch Connection

10
illustrates how to connect remote, momentary-contact switches.
VP-4x1CS - Connecting the VP-4x1CS 4x1 PC Graphics Clean Switcher
Section
6.4).
Section
7.1.2)
Figure
3) and
