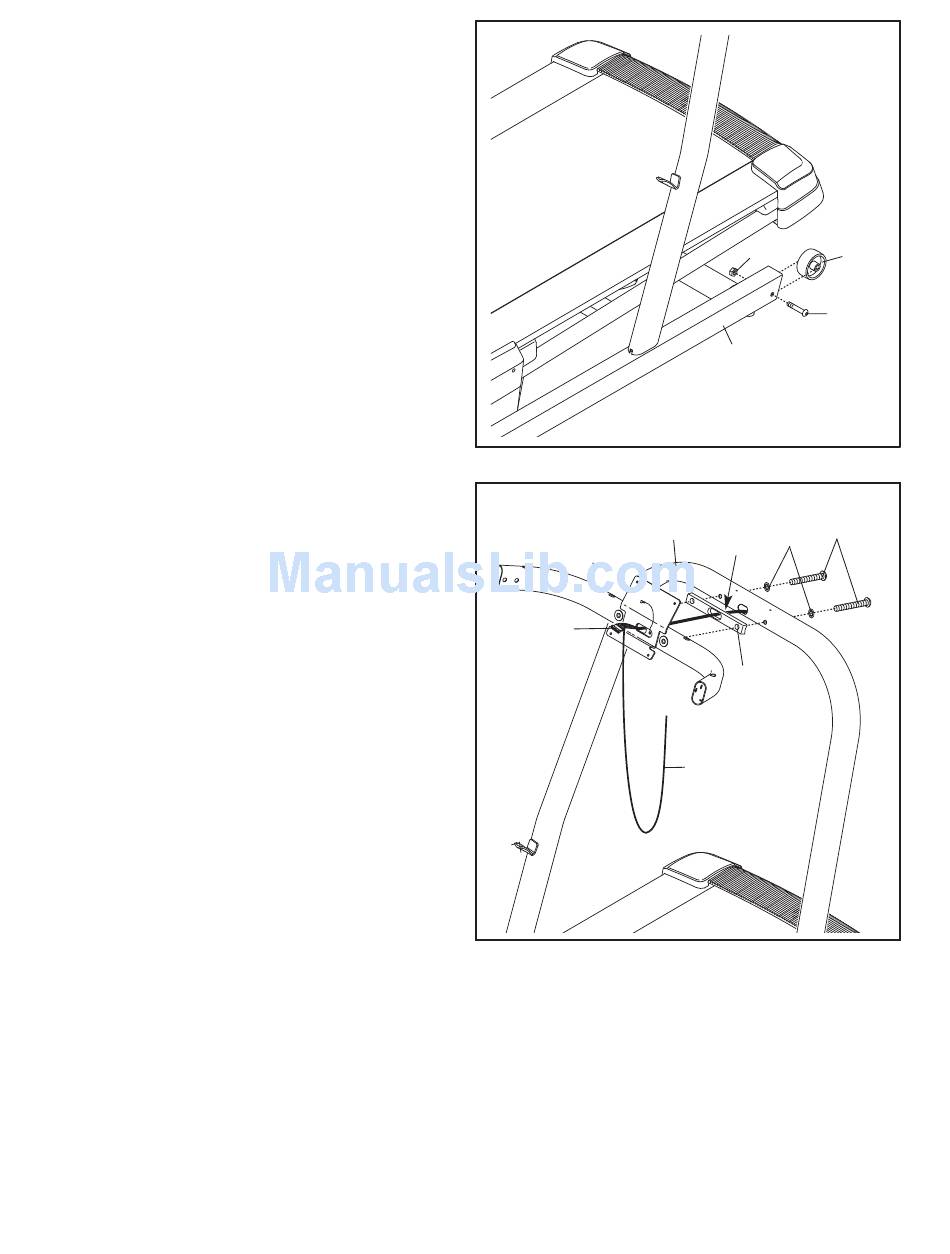

3. With the help of a second person, carefully tip
the incline trainer down so that the Base (78) is
flat on the floor.
Attach a Wheel (77) to each side of the Base
(78) with a 3/8" x 2 1/2" Bolt (4) and a 3/8" Nut
(8) (only one side shown).
4. Hold the Yoke Spacer (87) near the Upright
(74). Make sure that the curved side of the
Yoke Spacer is facing the Upright. Insert the
Upright Wire (72) through the Yoke Spacer.
Orient the Yoke (88) as shown. Insert the
Upright Wire (72) through the Yoke.
Attach the Yoke (88) and the Yoke Spacer (87)
to the Upright (74) with two 3/8" x 5" Bolts (7)
and two 3/8" Star Washers (9); do not fully
tighten the Bolts yet.
Remove the wire tie from the Upright Wire (72).
3
4
88
72
8
8
4
78
Curved
7
74
9
Side
87
Wire Tie
77
