4 Pin Main Harness

1 BLUE/BLACK
The Active Output/Ignition 3 output wire provides a ground output when the remote
start function is activated and remains until 4 seconds after the remote start is
shutdown. The Ignition 3 output wire can be used for several functions listed
below. If this wire will be used for multiple application's a 1 amp diode is required
in-line with the stripe facing the control module.
Factory transponder (coded key) bypass.

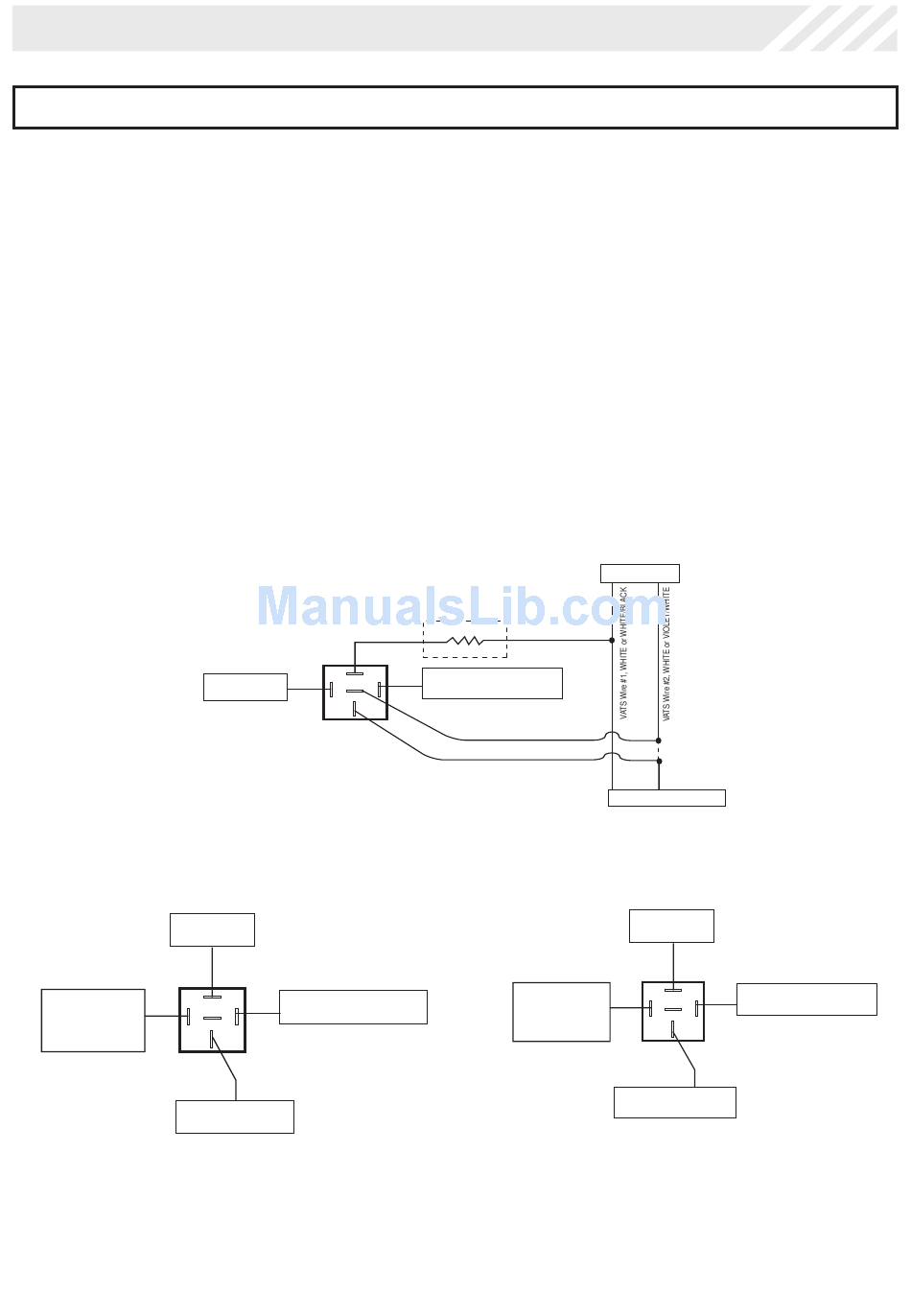

General Motors VATS bypass, see the following diagram. Use an SPDT relay (not
supplied).
Ignition 3 output, see the following diagram. Use an SPDT relay (not supplied).
Accessory 2/3 output, see the following diagram. Use an SPDT relay (not
supplied).
Ignition 3
Fused +12 Volt
Battery Source
Jump To PINK
Ignition Output
86
Wire From
Control Module
2010 Audiovox Electronics Corporation. All rights reserved.
GM VATS
87
Fused +12 Volt
87a
Battery Source
86
30
87
BLUE/BLACK Active Output
87a
Wire
85
30
To Vehicle's 2nd or
3rd Ignition Wire
IGNITION 3 / ACTIVE OUTPUT ( - )
Matching Value
Resistor
BLUE/BLACK ActiveOutput
Wire
85
Jump To ORANGE
Accessory Output
Wire From
Control Module
Ignition Switch
X CUT
VATS Control Module
Accessory 2/3
Fused +12 Volt
Battery Source
87
BLUE/BLACK Active Output
87a
Wire
85
86
30
To Vehicle's 2nd or 3rd
Accessory Wire
