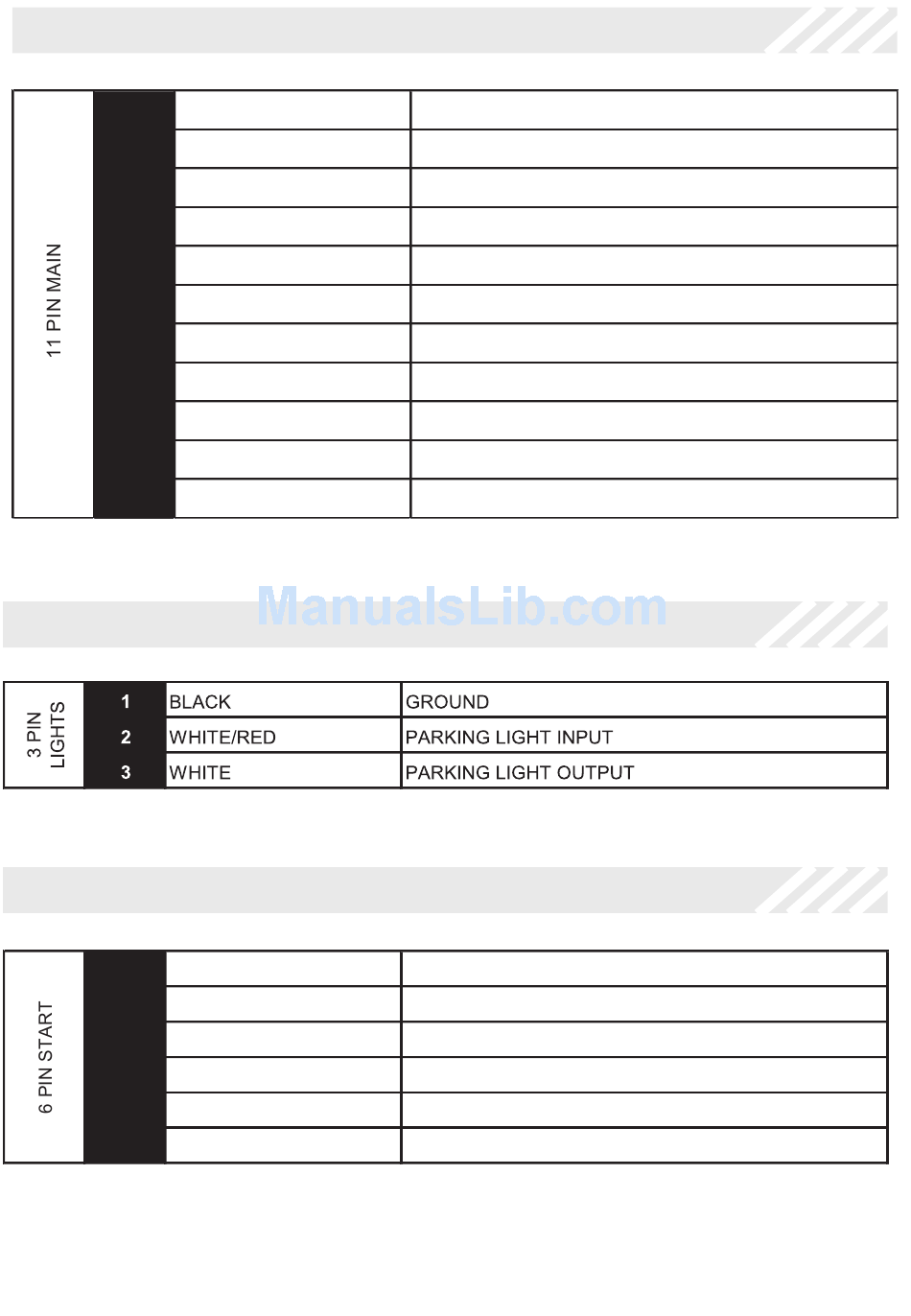

Pin Main Harness; Pin Parking Light Harness; Pin Start Harness - Code Alarm ca5554 PROFESSIONAL SERIES Installation Manual

11 Pin Main Harness

1
2
3
4
5
6
7
8
9
10
11

3 Pin Parking Light Harness

6 Pin Start Harness

1
PURPLE
2
RED
3
ORANGE
4
PINK/WHITE
5
RED/WHITE
6 PINK
4
GRAY/RED
PURPLE
GREEN
BLACK/WHITE
BROWN/BLACK
RED/WHITE
BLUE/BLACK
PURPLE/WHITE
GRAY
BROWN/RED
VIOLET/BLACK
PARKING BRAKE INPUT ( - )
DOOR INPUT ( + )
DOOR INPUT ( - )
ILLUMINATED ENTRY OUTPUT ( - )
HORN OUTPUT ( - )
TRUNK RELEASE OUTPUT ( - )
START STATUS / ACTIVE OUTPUT ( - )
TACH INPUT
HOOD PIN INPUT ( - )
BRAKE INPUT ( + )
AUX 1 OUTPUT ( - )
STARTER OUTPUT - MOTOR SIDE
BATTERY 12V ( + )
ACCESSORY 1 ( + )
IGNITION 2 ( + )
BATTERY 12V ( + )
IGNITION 1 ( + )
