Pin Main Harness - Code Alarm PROFESSIONAL CA 5150 Installation Manual

Remote start with keyless entry

Hide thumbs Also See for PROFESSIONAL CA 5150:

Table of Contents

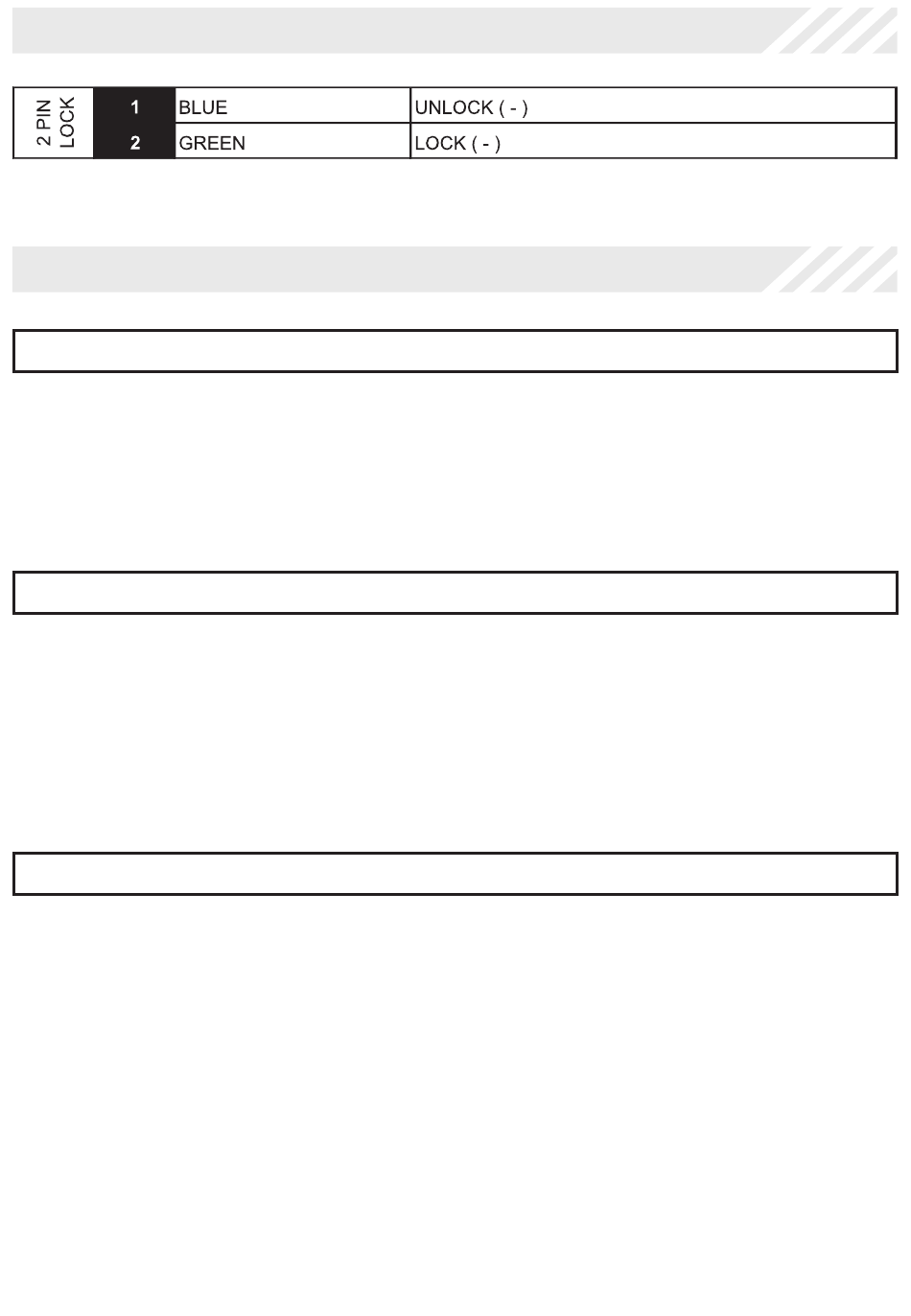

2 Pin Door Lock Harness

8 Pin Main Harness

VIOLET/BLACK

This wire provides a ( - ) 500mA output capable of driving relays. For Control of

optional accessories (i.e. Power Window/Sunroof, etc.).

To activate refer to the transmitter button configuration chart. Please refer to the

selectable options for timing.

BLACK/WHITE

This wire provides a ( - ) 500mA output for 30 seconds when the system is

disarmed capable of driving relays.

Locate the vehicle's dome light or pin switch wire.

Verification: This wire will register positive voltage or ground when the

vehicle's dome light is turned ON.

BROWN/BLACK

Locate the vehicle's horn wire.

Verification: This wire will register at positive voltage and register

ground when the horn switch is pressed.

Connect the BROWN/BLACK wire to the vehicle's horn wire. This is a low current

output, 500mA.

AUX 1

ILLUMINATED ENTRY OUTPUT ( - )

HORN OUTPUT ( - )
