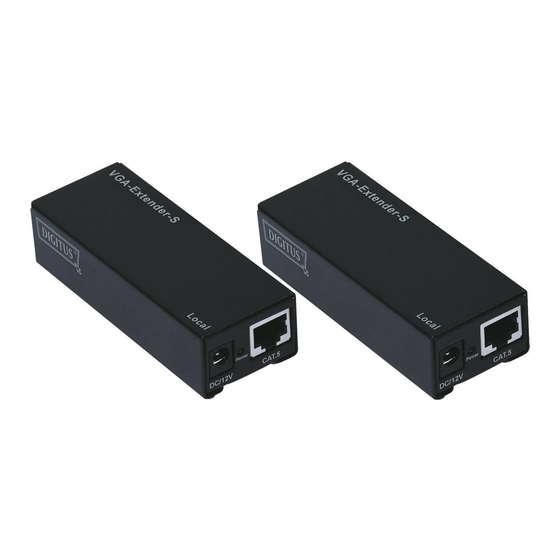

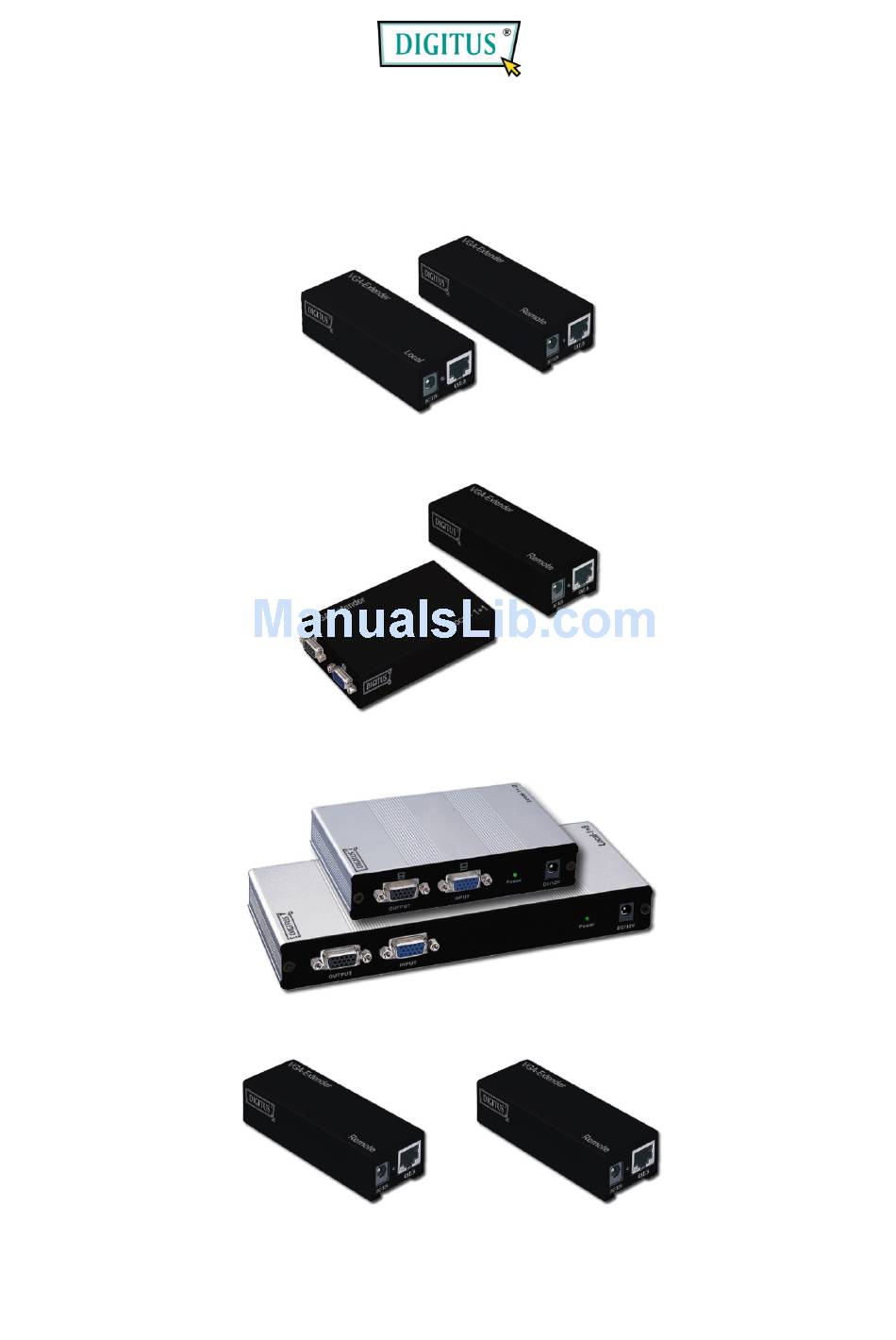

- Page 1 USER MANUAL VGA EXTENDER DC-53101 DC-53401 DC-53501/DC-53601/DC-53701 DC-59301 (Remote) DC-59302 (Remote)
- Page 2 Package Contents for DC-53101 VGA Local Unit VGA Remote Unit 1 user manual 2 power adapter DC 12V/600mA 1 VGA 1.2M cable (HD-15 Male to Male) Package Contents for DC-53401 VGA Local 1+1 Unit ...
-
Page 3: Specifications
VGA signal up to 180 meter or by using DC-59302 up to 300 meter on monitors. Equalization length is adjustable. VGA signal gain is adjustable. Specifications DC-53101 Function Local Unit Remote Unit VGA In/Out Connector HD-15 Female x 1 RJ-45 Connector Max. - Page 4 LOCAL FRONT VIEW DC-53101 DC-53401 DC-53601 DC-53701 1. CAT.5 (RJ-45 Connector) 2. Power LED 3. Power jack LOCAL REAR VIEW DC-53701 DC-53401 DC-53501 / DC-53601 DC-53701 1. VGA In (HD-15 Female Connector) 2. VGA Out (HD-15 Female Connector) 3. Power LED...
- Page 5 1. EQ – Equalization length adjust (Adjust it and weak characters be sharp) 2. GAIN – Adjust brightness Note: The DC-59301 is part of the article DC-53101 and DC-53401! But for the articles DC-53501, DC-53601 and DC-53701 a remote control (DC-59301 / DC-59302) has to be bought separately.
- Page 6 Distances and Resolutions for CAT.5/5E and CAT.6 cables 50 m 2048 × 1536 CAT 5/5e 100 m 1280 × 1024 180 m 1024 × 768 200 m 800 x 600 300 m 640 x 480 30 m 1920 × 1440 CAT 6 50 m 1280 ×...
- Page 7 Additional Options for longer distances: For transmitted RGB signals over Cat 5 cable with more than 150 meter the skew delay becomessignificant and a correction is necessary. Below 150 meter the delay is negligible. This unit DC-59100 allows a perfect skew delay correction of the video signals for a brilliant and sharp picture.
