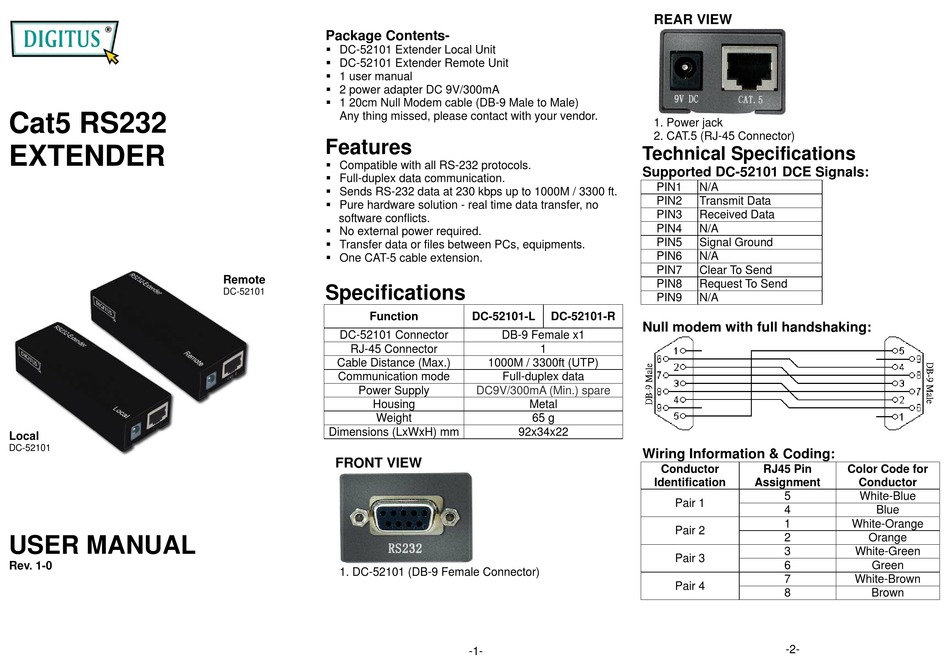

Digitus DC-52101 Quick Start Manual

Cat5 RS232
EXTENDER
Local
DC-52101
USER MANUAL
Rev. 1-0

Package Contents-

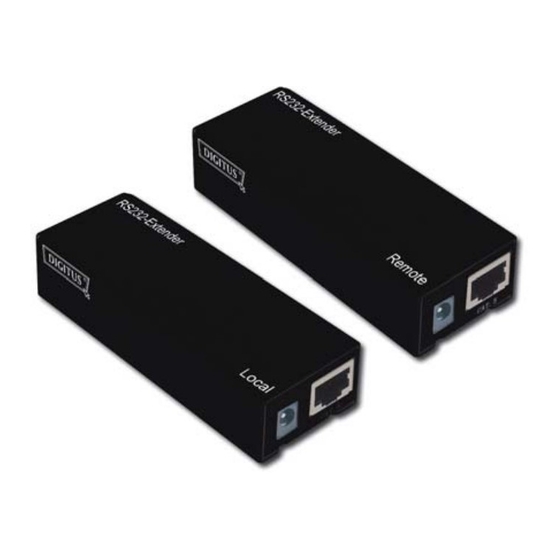

 DC-52101 Extender Local Unit
 DC-52101 Extender Remote Unit
 1 user manual
 2 power adapter DC 9V/300mA
 1 20cm Null Modem cable (DB-9 Male to Male)
Any thing missed, please contact with your vendor.

Features

 Compatible with all RS-232 protocols.
 Full-duplex data communication.
 Sends RS-232 data at 230 kbps up to 1000M / 3300 ft.
 Pure hardware solution - real time data transfer, no
software conflicts.
 No external power required.
 Transfer data or files between PCs, equipments.
 One CAT-5 cable extension.
Remote

Specifications

DC-52101
Function
DC-52101 Connector
RJ-45 Connector
Cable Distance (Max.)
Communication mode
Power Supply
Housing
Weight
Dimensions (LxWxH) mm
FRONT VIEW
1. DC-52101 (DB-9 Female Connector)

Technical Specifications

Supported DC-52101 DCE Signals:
DC-52101-L DC-52101-R
Null modem with full handshaking:
DB-9 Female x1
1
1000M / 3300ft (UTP)
Full-duplex data
DC9V/300mA (Min.) spare
Metal
65 g
92x34x22
Wiring Information & Coding:
-1-
REAR VIEW
1. Power jack
2. CAT.5 (RJ-45 Connector)
PIN1 N/A
PIN2 Transmit Data
PIN3 Received Data
PIN4 N/A
PIN5 Signal Ground
PIN6 N/A
PIN7 Clear To Send
PIN8 Request To Send
PIN9 N/A
Conductor RJ45 Pin
Identification Assignment
5
Pair 1
4
1
Pair 2
2
3
Pair 3
6
7
Pair 4
8
-2-
Color Code for
Conductor
White-Blue
Blue
White-Orange
Orange
White-Green
Green
White-Brown
Brown
