SG-1003/1103
SOHO Security Gateway
with 3 LANs
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SG-1003 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advantech SG-1003

Summary of Contents for Advantech SG-1003

  • Page 1 SG-1003/1103 SOHO Security Gateway with 3 LANs User’s Manual...
  • Page 2 Advantech equipment is destined for your home or the factory floor, you can be assured that your product will provide the reliability and ease of operation for which the name Advantech has come to be known for. Your satisfaction is our primary concern. Here is a guide to Advantech’s customer services.
  • Page 3 Safety Instructions 1. Please read these safety instructions carefully. 2. Please keep this User’s Manual for later reference. 3. Please disconnect this equipment from AC outlet before cleaning. Don’t use liquid or sprayed detergent for cleaning. Use moisture sheet or clothe for cleaning. 4.
  • Page 4 16. CAUTION: THE COMPUTER IS PROVIDED WITH A BATTERY-POWERED REAL-TIME CLOCK CIRCUIT. THERE IS A DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURE. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS. SG-1003/1103 User’s Manual...

  • Page 5: Table Of Contents

    Contents 1. Introduction 1.1 About the SG-1003/1103 1.2 Product Features 1.3 Hardware 1.4 Front Panel 1.5 Rear Panel 1.6 Packing Contents 2. Hardware Installation 2.1 Compact Flash Card Installation 2.2 RAM module Installation 2.3 Interface Connections 3. Product Specifications...
  • Page 7 Introduction...

  • Page 8: Introduction

    Chapter 1 Introduction 1.1 About the SG-1003/1103 A compact fan-less Security Gateway, the SG-1003/1103 is specifically designed for secure Internet connectivity and is suitable for SOHO Firewall/VPN applications. Designed with the SiS550 200 MHz processor, it has low power consumption that can meet the requirements needed for SOHO Firewall/VPN appliances.

  • Page 9: Front Panel

    1.4 Front Panel One LED indicates the power ON/OFF status. Figure 1-1 Front Panel of the SG-1003/1103...

  • Page 10: Rear Panel

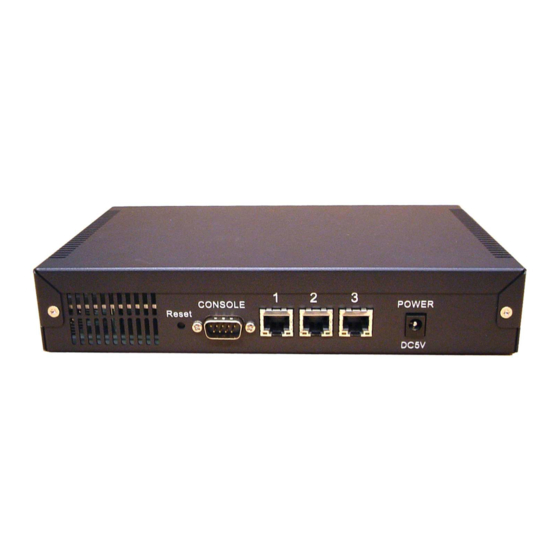

    1.5 Real Panel Figure 1-2 Rear Panel of the SG-1003 SG-1003/1103 User’s Manual...
  • Page 11 Figure 1-3 Rear Panel of the SG-1103 LAN1, LAN2, LAN3 ports The LAN port connectors are RJ-45 and support 10/100BaseTX Ethernet (10 Mbps/100 Mbps on a twisted pair cable). These ports are used for connecting LAN, WAN, DMZ. COM ports The console port supports a data terminal equipment (DTE) interface (cable included) with 8 data bits, no parity, and 1 stop bit, the default speed is 38400 bps.

  • Page 12: Packing Contents

    1.6 Packing Contents The SG-1003/1103 package includes the following items: SG-1003 or SG-1103 AC/DC Power adaptor VGA cable (SG-1003 only) SG-1003/1103 User’s Manual...
  • Page 13 Hardware Installation...

  • Page 14: Hardware Installation

    Chapter 2 Hardware Installation 2.1 Compact Flash Card Installation 1. Using a screwdriver, remove the bottom cover. 2. Once removed, the CompactFlash card socket can be observed. SG-1003/1103 User’s Manual...
  • Page 15 3. Insert the CompactFlash card into the socket. 4. Close the bottom cover and use screwdriver to screw it before...

  • Page 16: Ram Module Installation

    2.2 RAM Module Installation 1. Using a screwdriver, remove the top cover 2. Once removed, the CPU board with heat-sink can be observed SG-1003/1103 User’s Manual...
  • Page 17 3. Using screwdriver, remove the CPU board with chassis...
  • Page 18 4. Once removed, you will see the SO-DIMM socket on the back side of CPU board. SG-1003/1103 User’s Manual...
  • Page 19 5. Insert a SO-DIMM DRAM into the socket.

  • Page 20: Interface Connections

    Connect an AC to DC power adaptor to the power input port. The system accepts DC 5 V input only. VGA Connection Connect a CRT or LCD monitor to VGA port for system maintenance PS/2 Keyboard and Mouse Connection Connect Keyboard/Mouse to the PS/2 port for system maintenance SG-1003/1103 User’s Manual...
  • Page 21 Product Specifications...

  • Page 22: Chapter 3 Product Specifications

    Operating humidity: 5 ~ 95% @ 40 , non-condensing • Storage humidity: 5 ~ 95% • Transportation temperature/humidity: -20 ~ 75° C, 5 ~ 95% • Dimension: 228 mm x 44 mm x 146 mm (W x H x D) • EMI/EMC: FCC Class A SG-1003/1103 User’s Manual...
