Maintenance

The separation pad assembly and the feed-roller assembly in your Automatic
Document Feeder (ADF) are designed to make document feeding smooth. After
usage for a period of time, the separation pad assembly and feed-roller assembly
may become worn, and a problem such as document double-feed may occur. In
this case, check either the separation pad assembly or the feed-roller assembly,
and replace them if needed. Follow the procedure below for replacement of the
separation pad assembly and feed-roller assembly.

Replacing the Separation Pad Assembly

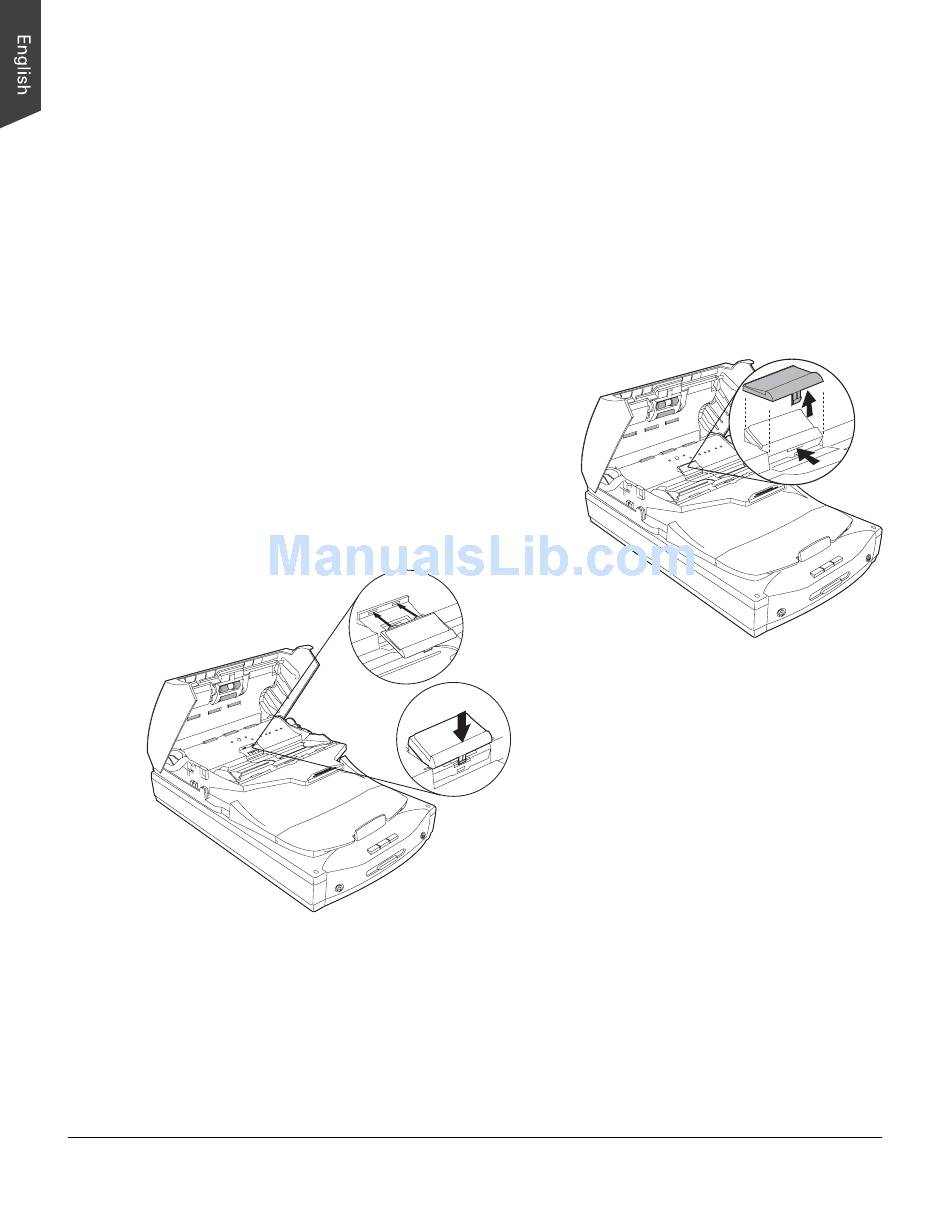

1. Push the button at the top of the
2. With the cover fully opened, use
Note:
•
•
•
44 ArtixScan DI 4020 Plus/ArtixScan DI 2020 Plus User's Manual
ADF, then move the cover of the
ADF up to see the separation pad
assembly, as indicated in the
graphic below.
your fingers to nip off the
separation pad assembly and pull
it out from its compartment.
a
b
A grey separation pad assembly comes installed with the ArtixScan DI 4020
Plus/2020 Plus for use with scanning paper that weighs from 10 to 30 lbs.
An additional grey separation pad assembly also comes with your scanner
package for replacement.
The recommended replacement point for the two separation pad assemblies is
approximately 30,000 sheets.
Please contact your local resellers for purchasing new separation pad
assembly for replacement.
3. Insert (as shown in "a") and
push down (as shown in "b")
the new separation pad assembly
into its compartment, making
sure that the separation pad
assembly snaps into place.
4. Close the cover.
