xStack
DGS-3120 Series Layer 2 Managed Stackable Gigabit Switch Hardware Installation Guide
LED Indicators
The Switch front panel presents LED indicators for Power, Console, RPS, Master (stack control), S1, S2, Fan, SD,
Stack ID and Link/Act indicators for all ports including the Gigabit Ethernet ports. The DGS-3120-24PC and DGS-
3120-48PC switches are equipt with an additional PoE light, to indication whether the ports are running in Power over
Ethernet mode.

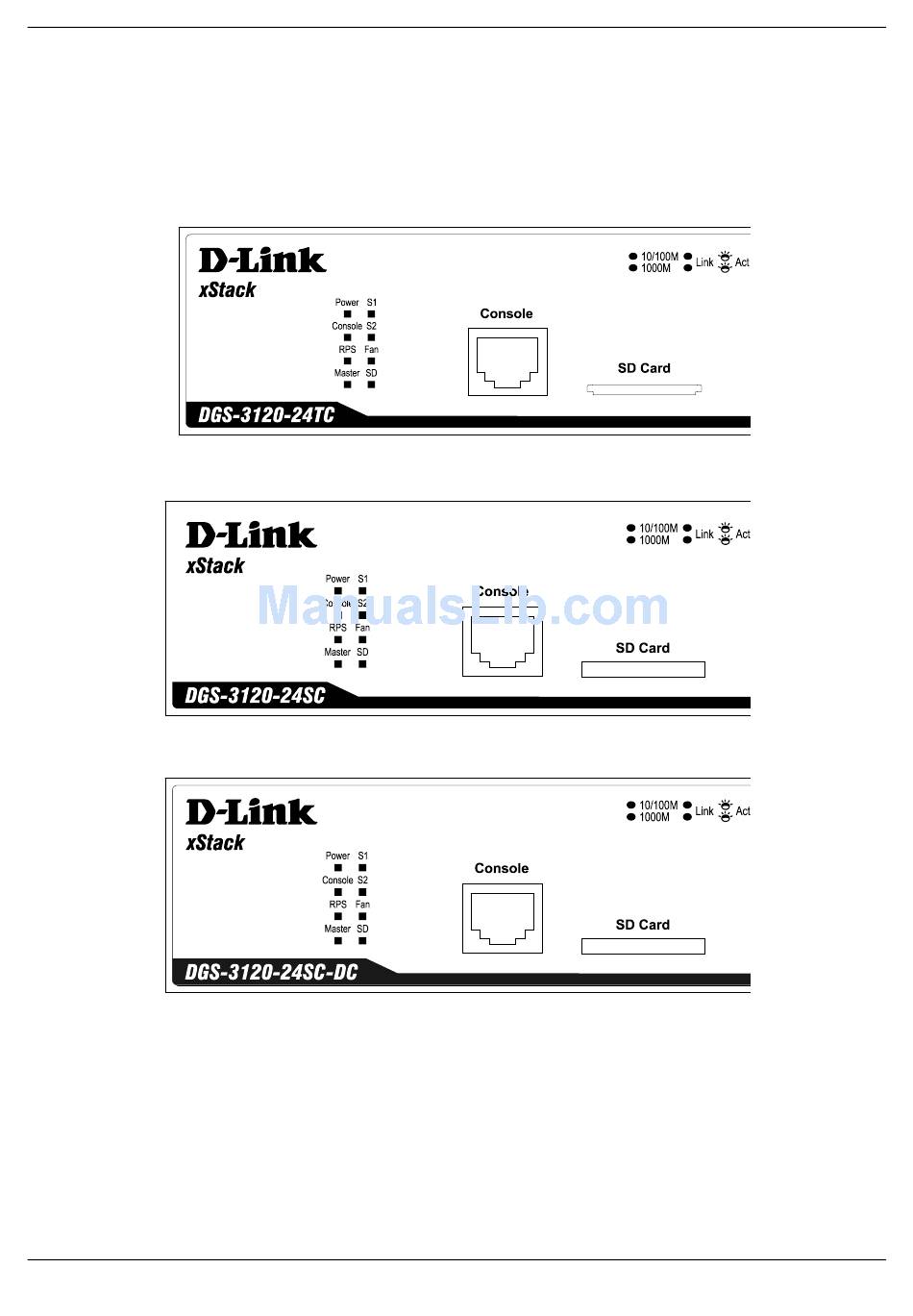

Figure 1-7 LED indicators for the DGS-3120-24TC
Figure 1-8 LED indicators for the DGS-3120-24SC
Figure 1-9 LED indicators for the DGS-3120-24SC-DC
6
