xStack DGS-3120 Series Layer 2 Managed Stackable Gigabit Switch Hardware Installation Guide
stacking. The Switch supports a stacking cable length of up to 3 meters.

Side Panel Description

The system heat vents located on each side dissipate heat. Do not block these openings. Leave at least 6 inches of
space at the rear and sides of the Switch for proper ventilation. Be reminded that without proper heat dissipation and
air circulation, system components might overheat, which could lead to system failure or even severely damage
components.

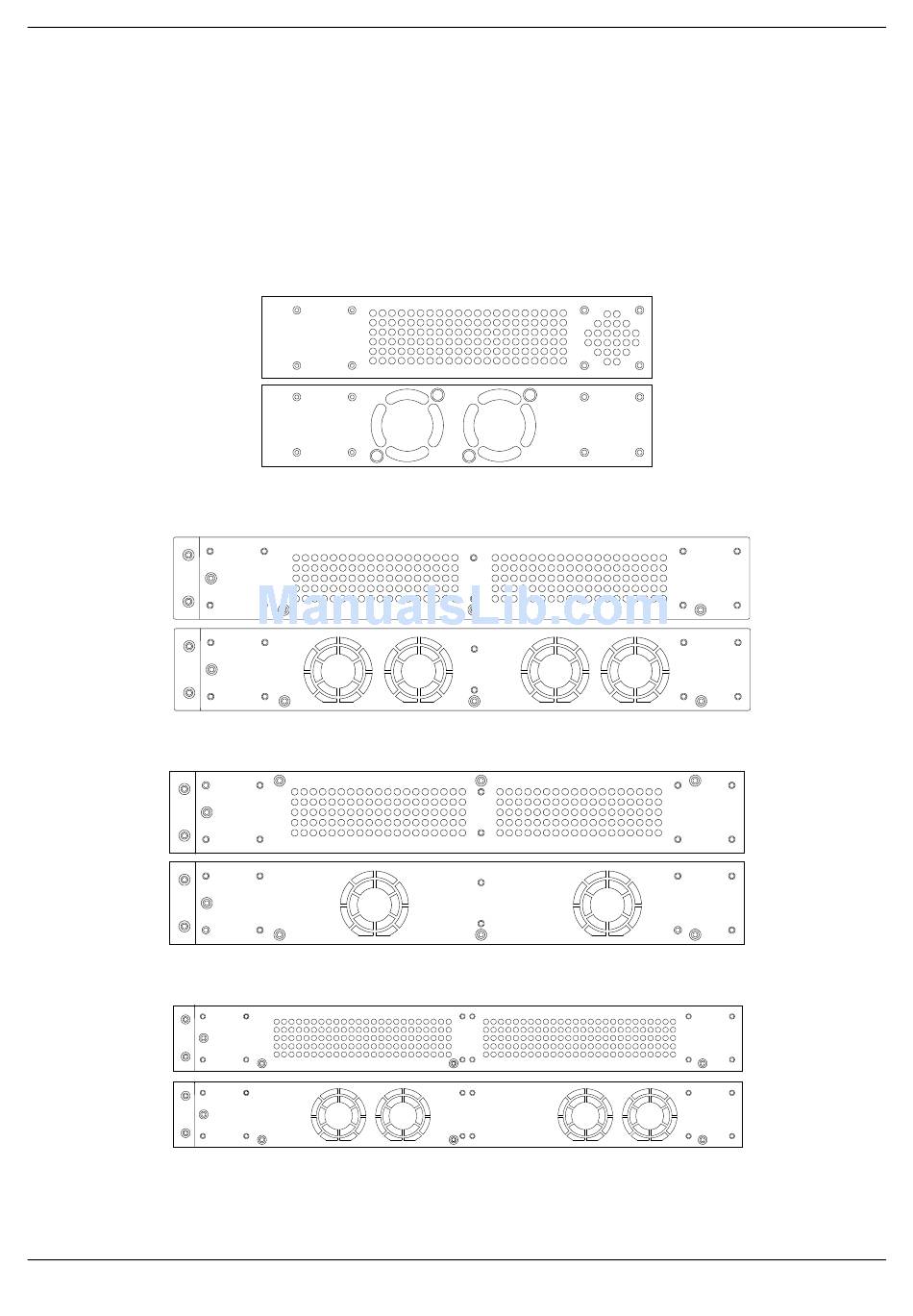

Figure 1-19 Identical side panels of the DGS-3120-24TC, DGS-3120-24SC, and DGS-3120-24SC-DC
Figure 1-20 Identical side panels of the DGS-3120-24PC
Figure 1-21 Identical side panels of the DGS-3120-48TC
Figure 1-22 Identical side panels of the DGS-3120-48PC
10
