xStack DGS-3120 Series Layer 2 Managed Stackable Gigabit Switch Hardware Installation Guide
Chapter 3

Switch to End Node

Switch to Switch
Connecting to Network Backbone or Server
NOTE: All high-performance N-Way Ethernet ports can support both MDI-II and MDI-X connections.
Switch to End Node
End nodes include PCs outfitted with a 10, 100 or 1000 Mbps RJ-45 Ethernet Network Interface Card (NIC) and
routers. An end node connects to the Switch via a twisted-pair UTP/STP cable. Connect the end node to any of the
1000BASE-T ports of the Switch. The Link/Act LEDs for each Ethernet port will light green or amber when the link is
valid. A blinking LED indicates packet activity on that port.
xStack
Power S1
Console S2
RPS Fan
Master SD
DGS-3120-24TC
Connecting the Switch
10/100M
Link Act
1000M
1 2 3 4 5 6 7 8 9 10 11

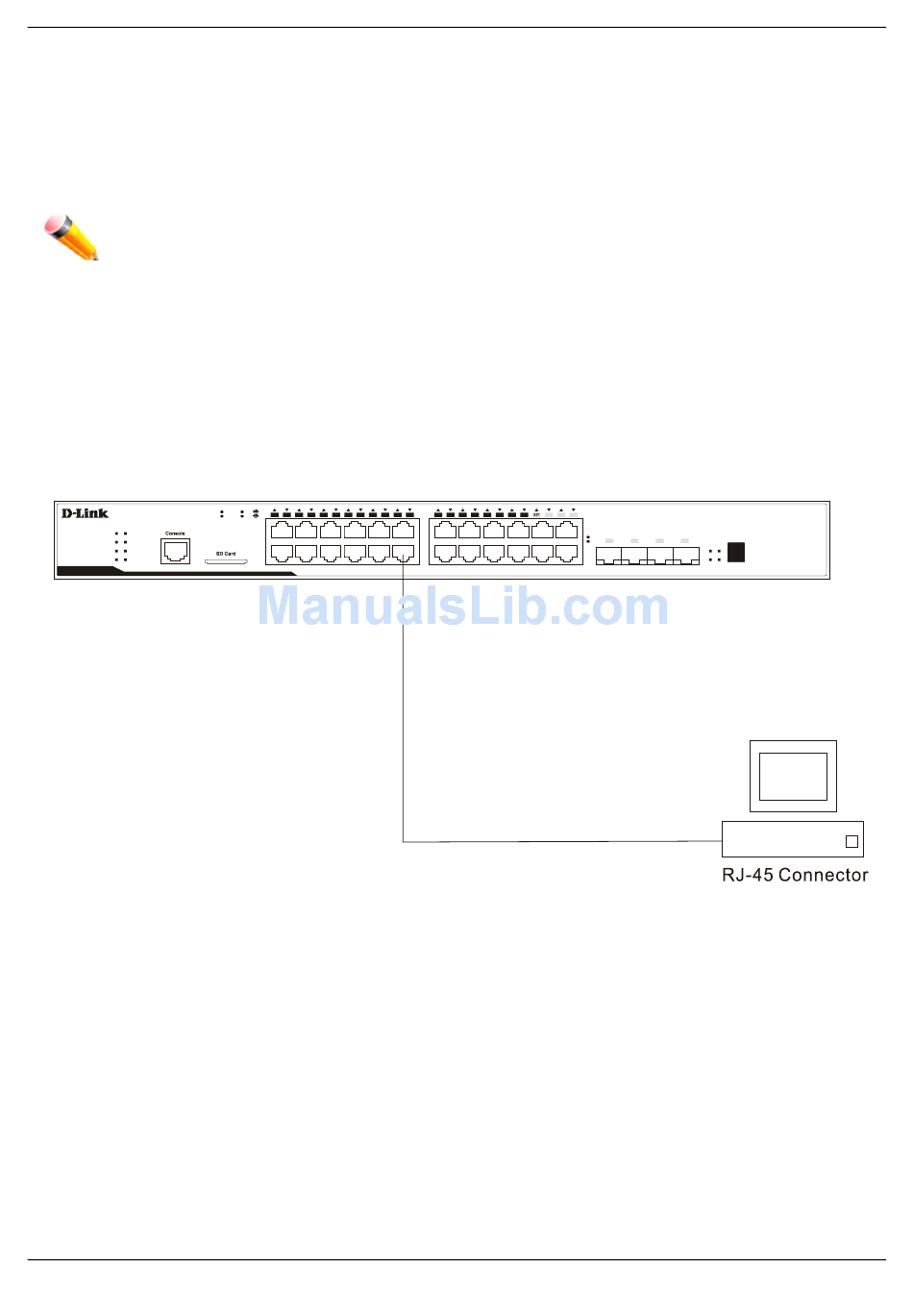

Figure 3-1 Connecting the Switch to an end node
22T 23T 24T
12 13 14 15 16 17 18 19 20
21
100M
Stack ID
21F 22F 23F 24F
1000M
21F 23F
22F 24F
