Front Panel Components

The front panel of the Switch consists of LED indicators for Power, Console, RPS, Master, S1, S2, Fan, SD, Stack ID,
and for Link/Act for each port on the Switch including SFP port LEDs. A separate table below describes LED
indicators in more detail. The DGS-3120-24PC and DGS-3120-48PC switches are equipt with an additional PoE light,
to indication whether the ports are running in Power over Ethernet mode.

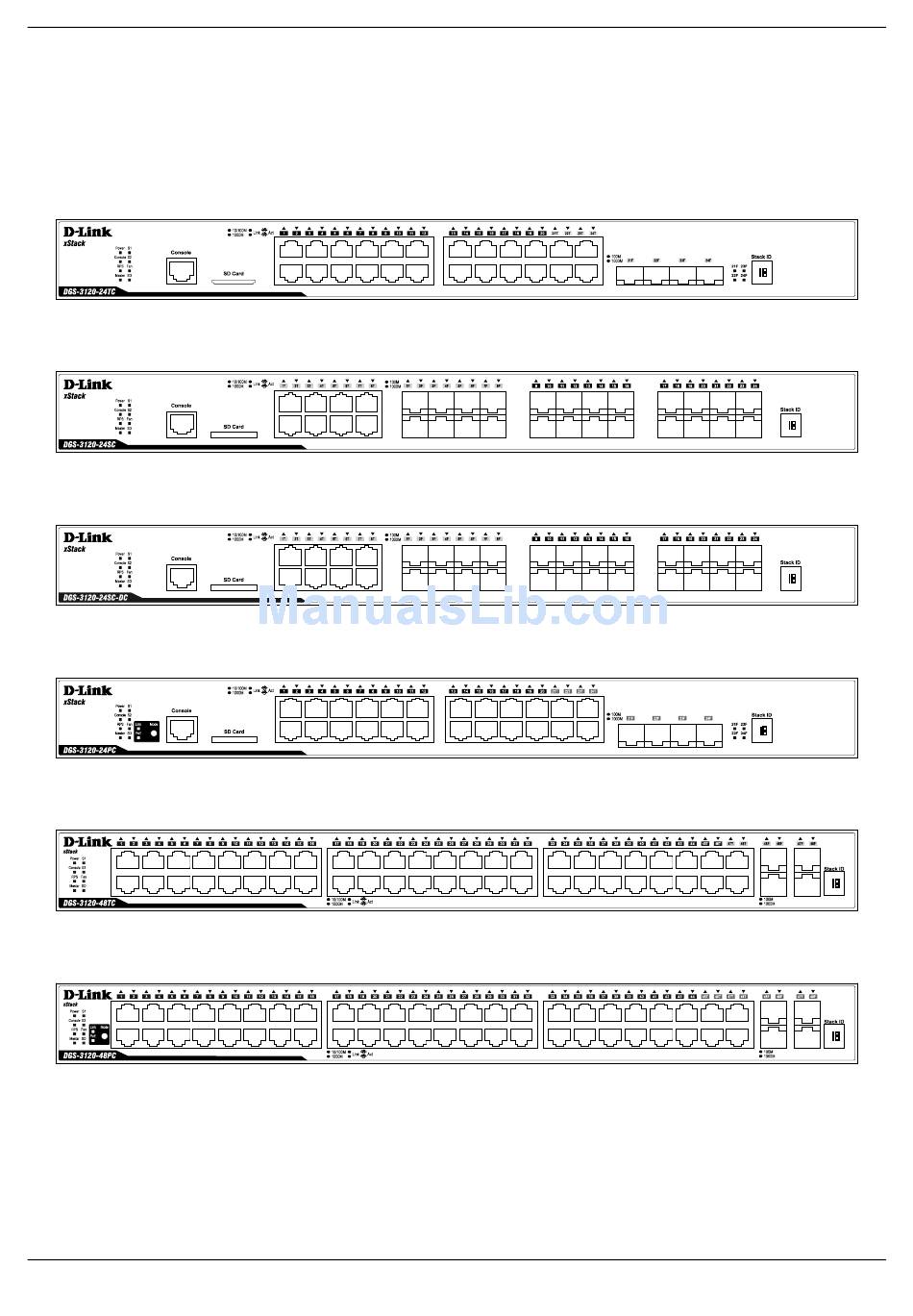

Figure 1-1 Front panel view of the DGS-3120-24TC
Figure 1-2 Front panel view of the DGS-3120-24SC
Figure 1-3 Front panel view of the DGS-3120-24SC-DC
Figure 1-4 Front panel view of the DGS-3120-24PC
Figure 1-5 Front panel view of the DGS-3120-48TC
Figure 1-6 Front panel view of the DGS-3120-48PC
