DGS-3120 Series Layer 2 Managed Stackable Gigabit Switch Hardware Installation Guide
Switch to Switch
There is a great deal of flexibility on how connections are made using the appropriate cabling.
•
Connect a 10BASE-T switch port to the Switch via a twisted-pair Category 3, 4 or 5 UTP/STP cable.
•
Connect a 100BASE-TX switch port to the Switch via a twisted-pair Category 5 UTP/STP cable.
•
Connect 1000BASE-T switch port to the Switch via a twisted pair Category 5e UTP/STP cable.
•
Connect switch supporting a fiber-optic uplink to the Switch's SFP ports via fiber-optic cabling. See cabling
guidelines in Appendix B for more information.

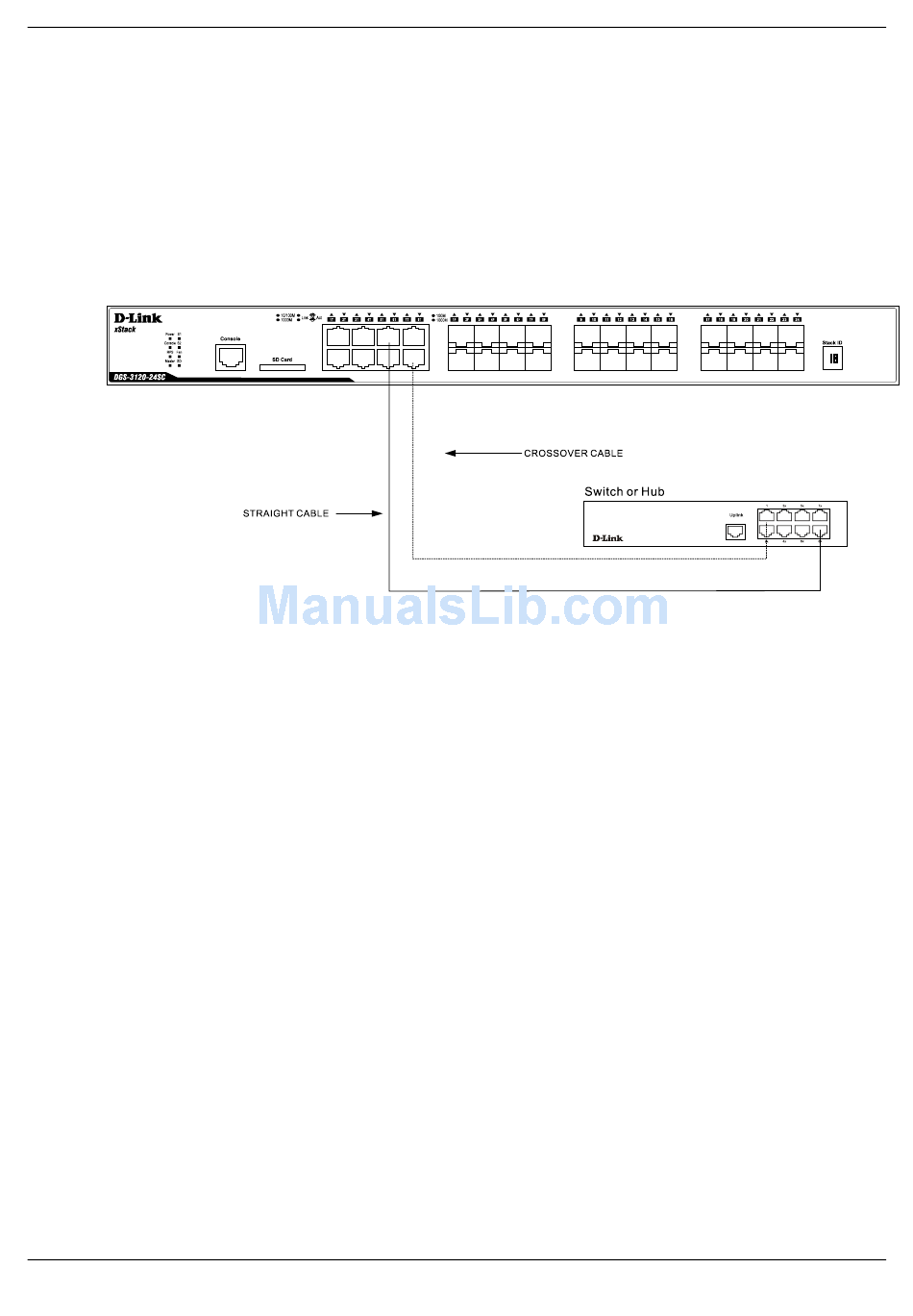

Figure 3-2 Connecting a Switch to another switch
22
