xStack DGS-3120 Series Layer 2 Managed Stackable Gigabit Switch Hardware Installation Guide

Connecting to Network Backbone or Server

The combo SFP ports and the 1000BASE-T ports are ideal for uplinking to a network backbone, server or server farm.
The copper ports operate at a speed of 1000, 100 or 10Mbps in full or half duplex mode. The fiber-optic ports can
operate at both 100Mbps and 1000Mbps in full duplex mode.
Connections to the Gigabit Ethernet ports are made using a fiber-optic cable or Category 5e copper cable, depending
on the type of port. A valid connection is indicated when the Link LED is lit.
xStack
Power S1
Console S2
RPS Fan
Master SD
DGS-3120-24TC
10/100M
Link Act
1000M
1 2 3 4 5 6 7 8 9 10

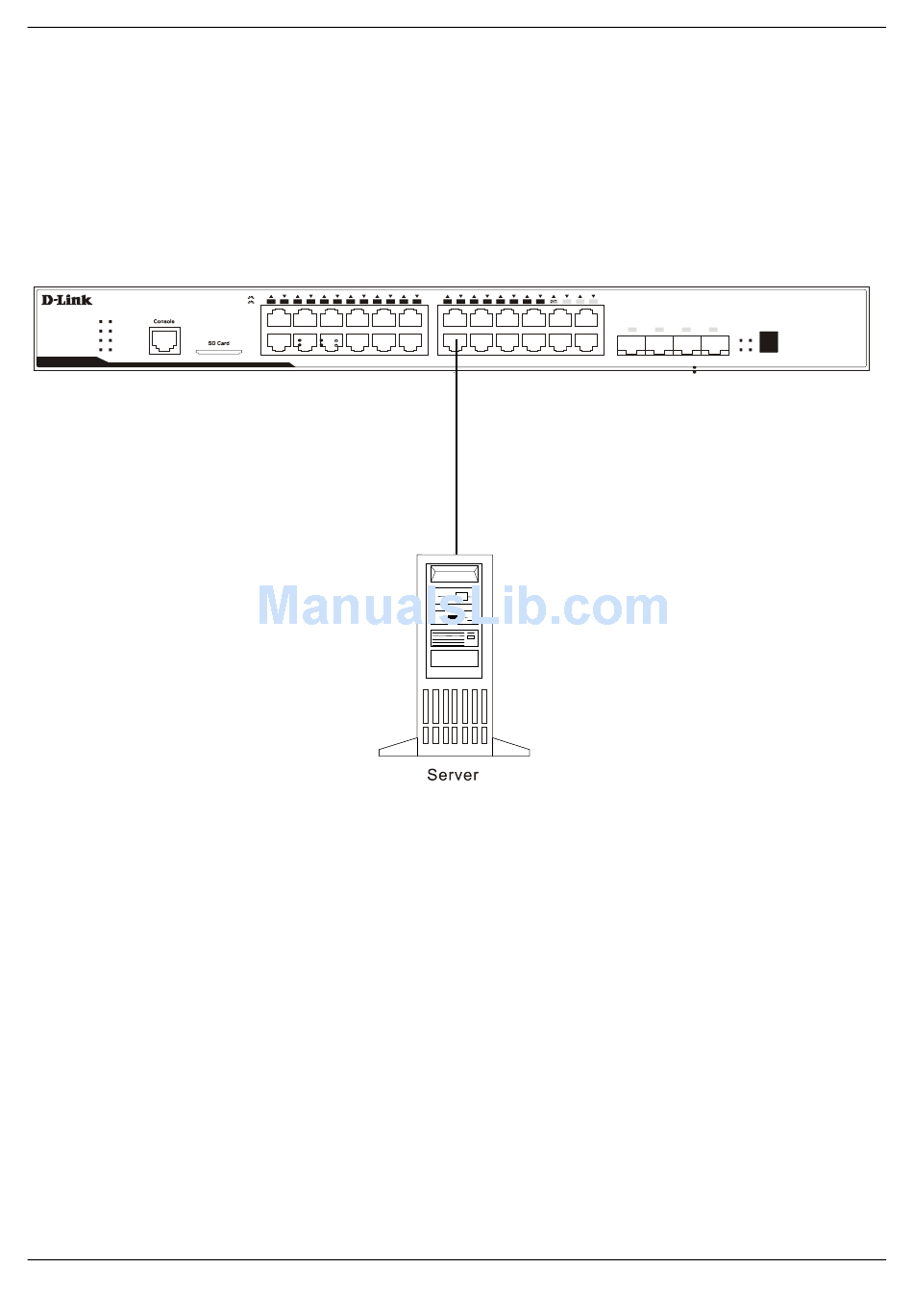

Figure 3-3 Connecting the Switch to a server
22T
11 12 13 14 15 16 17 18 19 20
23
23T 24T
100M
1000M 21F 22F 23F 24F
21F 23F
22F 24F
Stack ID
