Page 1: Analog Audio
DCT-9 Universal Digital/ Analog Audio Converter Operation Manual DCT-9... - Page 2 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
-
Page 3: Safety Precautions
Safety Precautions Please read all instructions carefully before installing or operating this product. Always follow basic safety precautions to reduce the risk of fire, electrical shocks and injuries. To prevent fires or shocks do not expose this product to rain, moisture or install it near water. -
Page 4: Table Of Contents
Table of Contents Introduction…………………………………………………..………. Applications……………………..…………………………....…. Package Contents…………………………..…………….....… System Requirements..……………………..….…………..……. Features……………………………………………..……..……… Specifications..………………………………………...………...…. 6.1 Input Audio Reference Level............6.2 Input Audio with Output Audio Comparison Chart....Operation Controls and Functions………………...……..…….… Top Panel ................. Right Panel …………………………………………..…….… Left Panel ................. Back Panel ……………………………..…………..……...… Connection and Installation …….…………………..…..…..…... -
Page 5: Introduction

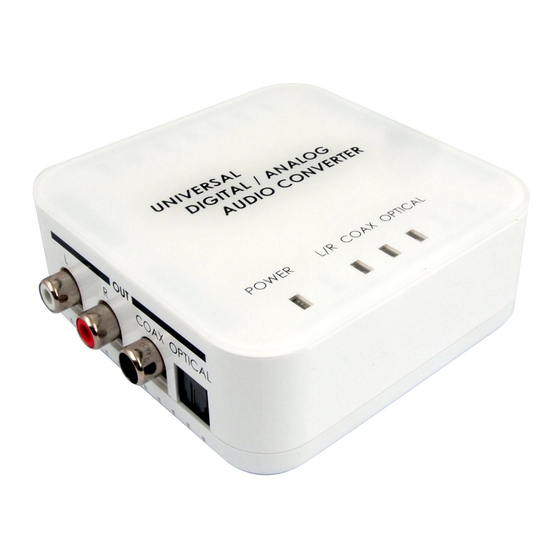

1. Introduction The Universal Digital/Analog Audio Converter is a gadget that can convert Optical, Coaxial and L/R audio signals. With the ability of audio formates conversion, this gadget can either convert digital audio into analog L/R audio or convert analog L/R audio into digital audio. If you find yourself limited by multiple audio formats, why not consider the Universal Digital/Analog Audio Converter and find out what pure audio sounds like. -
Page 6: Specifications
6. Specifications Input Ports Optical, Coaxial and L/R Input Format Toslink, SPIDIF and LPCM 2CH Sample Frequency 32kHz, 44.1kHz, 48kHz and 96kHz Output Ports Coaxial, Optical and L/R L/R Input Impedance 47K Ω L/R Output Impedance 47K Ω ESD Protection Human body model: ±... -
Page 7: Input Audio With Output Audio Comparison Chart
Input OPTICAL Output Output Signal to Output Level/Freq Level T.H.D+N Noise Ratio 1Vrms ± 0.05 0.01% ↓ >90dB OPTICAL OdBFS COAX 0 dB ± 0.05 0.01% ↓ >90dB 1KHz OPTICAL 0 dB ± 0.05 0.01% ↓ >90dB 6.2 Input Audio with Output Audio Comparison Chart Audio Input Output Output... -
Page 8: Operation Controls And Functions
7. Operation Controls and Functions 7.1 Top Panel UNIVERSAL DIGITAL / ANALOG AUDIO CONVERTER POWER L/R COAX OPTICAL ① When the device is turned on the LED is green, and when turned off the devices LED is red. ② Input Analog 2CH LED indicator: When selecting L/R input, the blue LED will turn on. -
Page 9: Left Panel
7.3 Left Panel ① L/R: Connect to a compatible audio device, such as a TV or amplifier with an L/R audio cable. ② COAX: Connect to an audio sources (TV or amplifier) coaxial input. ③ OPTICAL: This is used to connect with a TV or amplifiers optical jack. 7.4 Back Panel DC 5V Power Jack: Plug the 5V 1A DC power supply into the unit and ①... -
Page 10: Connection And Installation
8. Connection and Installation Coaxial or Optical Amplifier Optical Blue Ray Coaxial Set-top-Box... - Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20090810 MPM-DCT9...
