Quick Start Guide — MDA EQ Series
To install and set up an MDA EQ Series mini distribution
amplifier, follow these steps:
Step 1
Turn all of the equipment off and disconnect it from the power
source.
Step 2

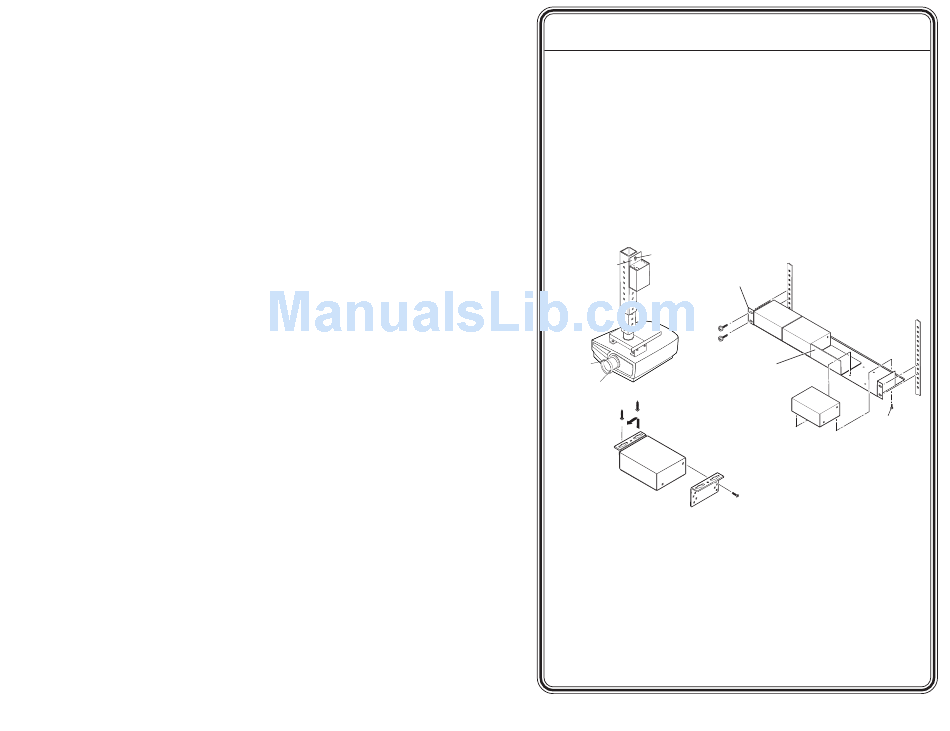

Mount the MDA EQ on a projector, under a desktop, or on a rack
shelf, as illustrated below. (The illustration shows a VersaTools
rack shelf; you can also use the 9-inch or 6-inch deep Universal or
basic 19-inch rack shelves. See Optional Accessories in appendix A.)
See Mounting the MDA EQ Series in chapter 2 for more options.
Mounting
Bolt
Projector
Mounting
Bracket
VersaTools Rack Shelf
Projector
1/4 Rack Width Front
False Faceplate
Use 2 mounting holes on
opposite corners.
Step 3
Wire the MDA EQ power cord and connect it. To wire the power
cord, follow these steps, referring to the illustration on the next page.
a. Cut the DC output cord to the length needed.
b. Strip the jacket to expose 0.3 inches (7 mm) of the
conductors.
c. Slide the leads into the supplied captive screw plug and
lock them, using an Extron Tweeker (small screwdriver).
Use the supplied tie-wrap to strap the power cord to the
d.
extended tail of the connector.
VersaTools ® MDA EQ Series • Quick Start Guide
®
(2) 4-40 x 3/16"
Screws
