SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

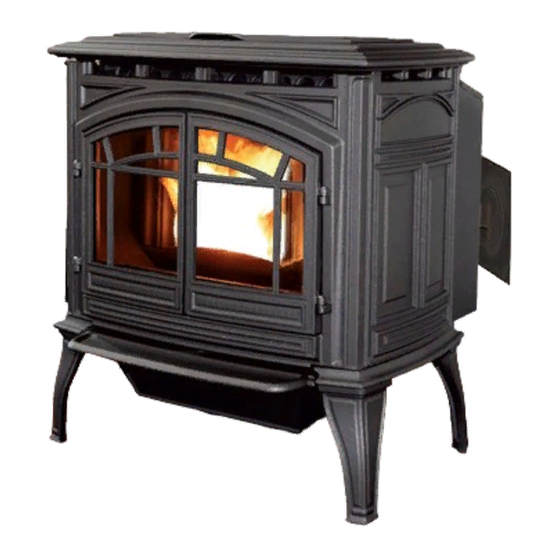

PELLET STOVE
M-55C-FS
OWNER'S MANUAL
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION
AND USE OF THIS PELLET-BURNING ROOM HEATER. FAILURE TO
FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY
DAMAGE, BODILY INJURY OR EVEN DEATH.
Contact your building or fire officials about restrictions and installation
inspection requirements in your area.
50-2100
Version Française: www.enviro.com/fr.html

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M-55C-FS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Enviro M-55C-FS

Summary of Contents for Enviro M-55C-FS

  • Page 1 AND USE OF THIS PELLET-BURNING ROOM HEATER. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH. Contact your building or fire officials about restrictions and installation inspection requirements in your area. 50-2100 Version Française: www.enviro.com/fr.html...

  • Page 2: Table Of Contents

    Table of Contents Introduction........................3 Rating Label Location........................3 Fuel Quality..........................3 Safety Warnings & Recommendations......................4 Operating Instructions..........................6 Dimensions & Specifications......................6 Control Board Functions.......................7 Automatic Safety Features of Your Pellet Stove................7 Operating Your Pellet Stove......................7 Turning Your Pellet Stove Off......................9 Slider/Damper Set-Up........................9 Routine Cleaning and Maintenance......................10 Technical Installation Instructions......................13 Deciding Where to Locate Your Pellet Appliance................14 Removing Pellet Stove From Pallet....................14...

  • Page 3: Introduction

    Fuel quality is important, please read the following: Your Enviro pellet stove has been designed to burn ¼” (6mm) dia wood pellets and other organic fuels. DO NOT use this appliance as an incinerator. DO NOT use unsuitable and non recommended fuels, including liquid fuels as this will void any warranties stated in this manual.

  • Page 4: Safety Warnings & Recommendations

    To prevent the possibility of a fire, ensure that the appliance is properly installed by adhering to the installation instructions. An Enviro dealer will be happy to assist you in obtaining information with regards to your local building codes and installation restrictions.
  • Page 5 If this power cord should become damaged, a replacement power cord must be purchased from the manufacturer or a qualified Enviro dealer. Be careful that the electrical cord is not trapped under the appliance and that it is clear of any hot surfaces or sharp edges. This unit’s maximum power requirement is 504 watts.

  • Page 6: Dimensions & Specifications

    (703mm) " (819mm) " 17" (724mm) (431mm) Figure 1: Dimensions of M-55C-FS. peciFicationS Input rating when using: Wood Pellets/Corn - 55,000BTU (16.1KW•hr) & Wheat/Barley - 53,000BTU (15.5KW•hr). Table 1: M-55C-FS Specifications. Description Fuel type Residential Pellet Heater 6mm (¼”) dia. Pellets - wood, corn, wheat, & barley*...

  • Page 7: Operating Instructions

    Operating Instructions ontRoL oaRd unctionS Note: The Control Panel is located underneath the units Cast Hopper Lid which is attached to a safety switch that will immediately stop the auger. The switch will stop operation of the stove and display a #4 flash code if the lid is not closed within two minutes.
  • Page 8 Operating Instructions peRating eLLet tove THE UNIT WILL NOT OPERATE WITH THE DOOR OR ASH BOX OPEN. Open the hopper lid only to re- fuel or to adjust the controls. the unit will shut down if the hopper lid is left open for longer than two minutes.

  • Page 9: Turning Your Pellet Stove Off

    Operating Instructions setting. If the thermostat contacts remain open, the stove automatically begins its shutdown routine. The stove will re-light when the thermostat contacts close again. uRning eLLet tove • MANUAL and HI / LOW mode: To turn the unit OFF, simply press the ON / OFF button. This will stop the feed of pellets.

  • Page 10: Routine Cleaning And Maintenance

    10. Set the fire grate in place, it should sit level on the front and back of the burn pot liner. Lock it in with the lever on the burn pot. 11. Close the door Figure 8: M-55C-FS Burn Pot Assembly.
  • Page 11 Figure 9: M-55C-FS Heat Exchanger Cleaning. DOOR GLASS CLEANING (Weekly) It is recommended that the door glass be cleaned weekly to keep creasote/soot levels to a minimum.
  • Page 12 Burner System 7. Close the firebox and ash pan Figure 10: M-55C-FS Exhaust Passages. doors and secure. BLOWER MECHANISMS (Annually) Unplug the stove then open the right and left side panels to access the two blowers. Remove the T-20 torx Screws located on the top and bottom of the rear access panels..

  • Page 13: Technical Installation Instructions

    Technical installation instructions FoR QuaLiFied inStaLLeRS onLy...

  • Page 14: Deciding Where To Locate Your Pellet Appliance

    Installation eciding HeRe to ocate youR eLLet ppLiance 1. Do not install the stove in a bedroom or room where people sleep in. 2. Locate the stove in a large and open room that is centrally located in the house. This will optimize heat circulation.

  • Page 15: Clearances To Combustibles

    48 inches (122 cm) Alcove Minimum Height 60 inches (152 cm) The unit must be installed with a minimum of 6” Figure 4: M-55C-FS Clearance to Combustibles. (152 mm) of floor protection in front of and to the sides of the door opening.

  • Page 16: Vent Termination Requirements

    Installation eRmination eQuiRementS IT IS RECOMMENDED THAT YOUR PELLET STOVE BE INSTALLED BY AN AUTHORIZED DEALER/INSTALLER. Table 2: Use in conjunction with Figure 6 for allowable exterior vent termination locations. Letter Minimum Clearance Description 24 in (61 cm) Above grass, top of plants, wood, or any other combustible materials. 48 in (122 cm) Beside/below any door or window that may be opened.

  • Page 17: Outside Fresh-Air Connection

    FRESH AIR INTAKE. " (392mm) Base of unit to center of intake 12" (305mm) 12” (305 mm) Center of unit to center of intake ” (126 mm) " " " " (236mm) (162mm) (200mm) (126mm) Figure 8: M-55C-FS Inlet and Outlet Location.

  • Page 18: Mobile Home Installation

    Installation obiLe nStaLLation ● Secure the heater to the floor using the four (4) holes in the pedestal. ● Ensure the unit is electrically grounded to the chassis of your home (permanently). ● Do not install in a room people sleep in.

  • Page 19: Horizontal Exhaust Through Wall Installation

    Installation oRizontaL XHauSt HRougH nStaLLation Vent installation: install vent at clearances specified by the vent manufacturer. A chimney connector shall not pass through an attic or roof space, closet or similar concealed spaces, or a floor, or ceiling. Where passage through a wall or partition of combustible construction is desired, the installation must conform to CAN/CSA-B365 Installation Code for Solid-Fuel-Burning Appliances and Equipment and with all local regulations, including those referring to regional and national.
  • Page 20 Installation 8. The pipe must extend at least 12” (30 cm) away from the building. If necessary, bring another length of pipe to the outside of the home to connect to the first section. Do not forget to place high temperature silicone around the pipe that passes through the thimble if required by vent manufacturer.

  • Page 21: Recommended - Through Wall With Vertical Rise And Horizontal Termination Installation

    Installation Recommended - t HRougH eRticaL iSe and oRizontaL eRmination nStaLLation Termination cap 90°elbow Wall framing A 45° down elbow with a screen may be used in Vertical section of vent pipe place of the termination cap (or stainless steel Wall strap termination hood).

  • Page 22: Outside Vertical Installation

    Installation utSide eRticaL nStaLLationS To accomplish an outside vertical pipe installation, follow the “h ” orizontal xhauSt hrough nStallationS section and then finish it by performing the following (refer to Figure 15). 1. Install a tee with clean out on the outside of the house. 2.

  • Page 23: Inside Vertical Installation

    Installation nSide eRticaL nStaLLationS 1. Place the unit on the hearth pad if a hearth pad is to be used (or on solid material if installed on a carpeted surface) and space the unit in a manner so when the pellet vent is installed vertically, it will meet the minimum clearance from a combustible wall stated by the vent manufacturer.

  • Page 24: Hearth Mount Installation

    Installation eaRtH ount nStaLLation Damper Removed or Fastened Open Mantel Minimum (8") 200mm from top of stove Clean-out tee Min (6") 150mm Fresh-air intake should com from chimney. If holes already exist fresh-air intake Floor can be taken through back Protection of the fireplace or through the ash dump.

  • Page 25: Troubleshooting

    Troubleshooting DO NOT: ● Service the stove with wet hands. The stove is an electrical appliance, which may pose a shock hazard if handled improperly. Only qualified technicians should deal with possible internal electrical failures. ● Do not remove from the firebox any screws without penetrating oil lubrication. WHAT TO DO IF: 1.

  • Page 26: Wiring Diagram

    Troubleshooting • Exhaust Temperature Sensor failure. Bypass sensor located on Exhaust Blower, if stove now operates properly, the unit may require cleaning or a new sensor. Contact your local dealer for service. • Check the agitator to make sure it is turning properly 3.
  • Page 27 Troubleshooting 7. The convection blower will not function normally. • Check the line fuse to see if it has blown. • Clean all grill openings at the back and below unit . • Check the Voltage across the blower wires, It should adjust with the heat output settings. If not contact your local dealer for service.

  • Page 28: Wiring Diagram

    Wiring Diagram Black Brown 2µF Capacitor Black Exhaust Blue Combustion Temperature Brown Blower Blue Blue Sensor Black White 120V Ground Air Pump White Plug Green Ground Ignitor White Ground Thermostat White Agitator Blue/Yellow Black Motor White Auger Yellow Yellow Motor Purple Brown Blue...

  • Page 29: Parts List

    Parts List ITEM # DESCRIPTION PART # AUGER WITH PADDLES 50-1161 VACUUM SWITCH LOW PRESSURE 50-1390 AUGER STOPS (CLEAR RUBBER) 50-1559 AUGER PLATE AND BUSHING (ASSEMBLY) 50-1658 BURN POT 50-1692 STAINLESS STEEL CAST AGITATOR W COUPLER 50-1697 AGITATOR DRIVE SHAFT W/ SPROCKET 50-1698 MOTOR DRIVE SPROCKET 50-1700...
  • Page 30 Parts List ITEM # DESCRIPTION PART # M55C-FS CAST FRONT WITH DOORS - BEACH 50-2120 M55C-FS CAST FRONT WITH DOORS - CHESTNUT 50-2130 CONTROL PANEL WITH DECAL 50-2108 M55C-FS DAUGHTER BOARD 50-2109 M55C-FS MOTHER BOARD 50-2110 M55C-FS CAST SIDE LEFT 50-2111 M55C-FS CAST SIDE LEFT - BEACH 50-2123...

  • Page 31: Parts Diagram - Components

    Parts Diagram - Components...

  • Page 32: Parts Diagram - Cast

    Parts Diagram - CAST...

  • Page 34: Installation Data Sheet

    SERIAL NUMBER:___________________________ _________________________________________ DATE OF PURCHASE: _____________ (dd/mm/yyyy) ADDRESS: DATE OF INSTALLATION:___________ (dd/mm/yyyy) _________________________________________ MAGNEHELIC AT INSTALL:___________________ _________________________________________ INSTALLER’S SIGNATURE: _________________________________________ _________________________________________ PHONE:___________________________________ MANUFACTURED BY: SHERWOOD INDUSTRIES LTD. 6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3 www.enviro.com March 6, 2013 C-13844...
