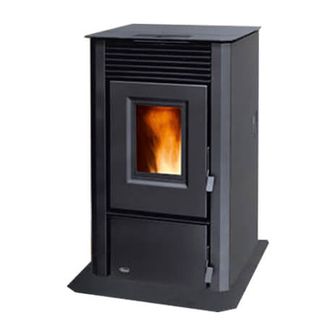

Enviro Maxx-1 Manual

Heat distribution kit
Hide thumbs Also See for Maxx-1:

Advertisement

Quick Links

Download this manual See also: Owner's Manual, Technical Manual
PLEASE SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

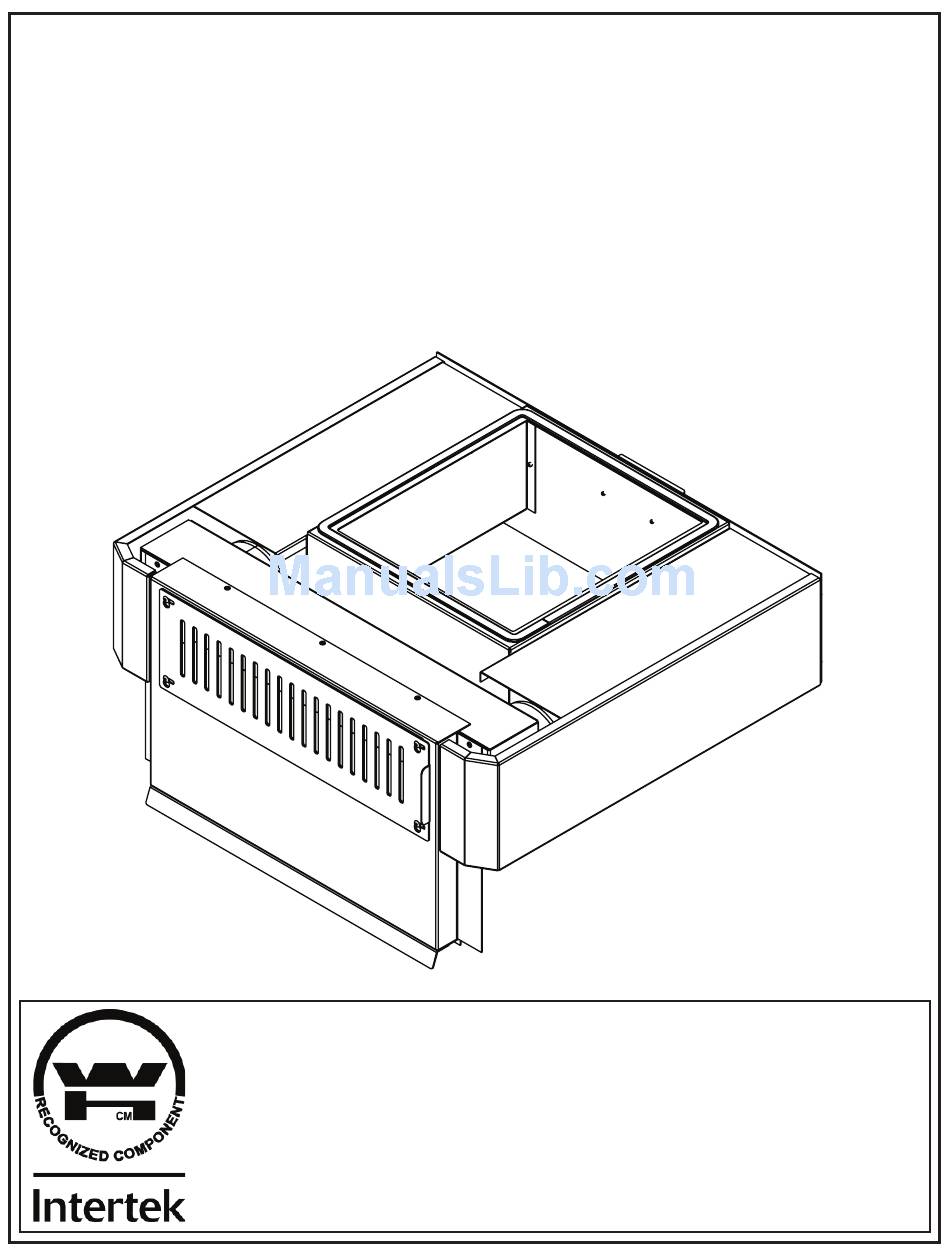

Enviro Maxx-1
Heat Distribution Kit
MANUAL
50-3067
PLEASE READ TAHIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS
PELLET-BURNING ROOM HEATER. FAILURE TO FOLLOW THESE INSTRUCTIONS
COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.
CONTACT YOUR LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS
AND INSTALLATION INSPECTION REQUIREMENTS IN YOUR AREA.
2

Advertisement

loading

Related Manuals for Enviro Maxx-1

Summary of Contents for Enviro Maxx-1

  • Page 1 PLEASE SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. Enviro Maxx-1 Heat Distribution Kit MANUAL 50-3067 PLEASE READ TAHIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS PELLET-BURNING ROOM HEATER. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.

  • Page 2: Table Of Contents

    Parts List..............................11 SAFETY WARNINGS & RECOMMENDATIONS Please read this entire Manual before installing or operating your Enviro Pellet Stove with Heat Distribution Kit. Failure to follow these instructions may result in property damage, bodily injury or even death. Any unauthorized modifi cation of the stove or Heat Distribution Kit is prohibited. All national and local regulations must be followed when operating this pellet stove with Heat Distribution Kit option.

  • Page 3: Installation

    INSTALLATION INSTRUCTIONS 1. Remove combustion adjustment slider knob as well as lock collar on left side of unit. Unscrew knob to remove. To remove the lock collar you will need a 3/32 Allen key. Figure 1: Adjustment knob and lock collar removal. 2.

  • Page 4: Remove The Four T-20 Screws Securing The Front Grill Assembly, See Fi Gure

    3. After loosening the screws holding on the cabinet sides, slide the sides toward front of stove to remove, fi gure 3. 4. Remove the four T-20 screws securing the Front Grill assembly, see fi gure 4. Figure 3: Cabinet sides removal. Figure 4: Original front gill removal.
  • Page 5 7. Remove old lid gasket, a utility knife may be required, fi gure 7. 8. Install the Air defl ectors, remove three screws fom each side shown in fi gure 8, pull the vertical frame part forward slightly so the defl ector can be fi t behind. Re-install the screws two of them will secure the defl...
  • Page 6 11. Attach the hopper extension side fl anges where the screw clearance holes are cut, line up edge of hopper extension with edge of support rail and use self drilling screws to secure. Attach the front fl ange on hopper extension using self drilling screw, fi...
  • Page 7 14.Attach Cab Extensions to back plate using two #8 sheet metal screws on each side. Mount one hinge using #8 T-20 screws, see fi gure 15. Figure 15: Cabinet side extension install. 15. Re-install hinges and lid. Hinge mounting holes have been shifted vertically up on the back plate.

  • Page 8: Ducting Specifi Cations

    DUCTING SPECIFICATIONS Ducting coming from the Heat Distribu- tion Kit must have a one inch clearance to any combustible materials. Ducts must be installed with a minimum 36” vertical section before the register boot. Maximum reccommend run would be 20ft with 1-2 elbows, performance will declince as the length is increased and with changes in direction.

  • Page 9: Wiring

    WIRING *DISCONNECT POWER FROM UNIT BEFORE WIRING OR SERVICING* a. Check sensor connections are correct. The top sensor should have white wires, middle sensor should have black wires, and the bottom sensor should have grey wires. Route the wires as shown and use the 6”...

  • Page 10: Wiring Diagram

    WIRING DIAGRAM Brown Exhaust Temperature Sensor Brown White Combustion Blue Blower Black White Black 120V Grounded Plug Ignitor Ground Thermostat White Auger Black White Motor Yellow 5 Amp Fuse Vacuum Yellow Switch Black Yellow White Blue Brown White Brown Convection Purple Blower Purple...

  • Page 11: Parts List

    PARTS LIST " "& 50-2887 50-2886 " ) *$ + EC-002 " EC-001 ,& " 50-2888...
  • Page 12 MANUFACTURED BY: SHERWOOD INDUSTRIES LTD. 6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3 www.enviro.com July 17 2015 C-14699...
