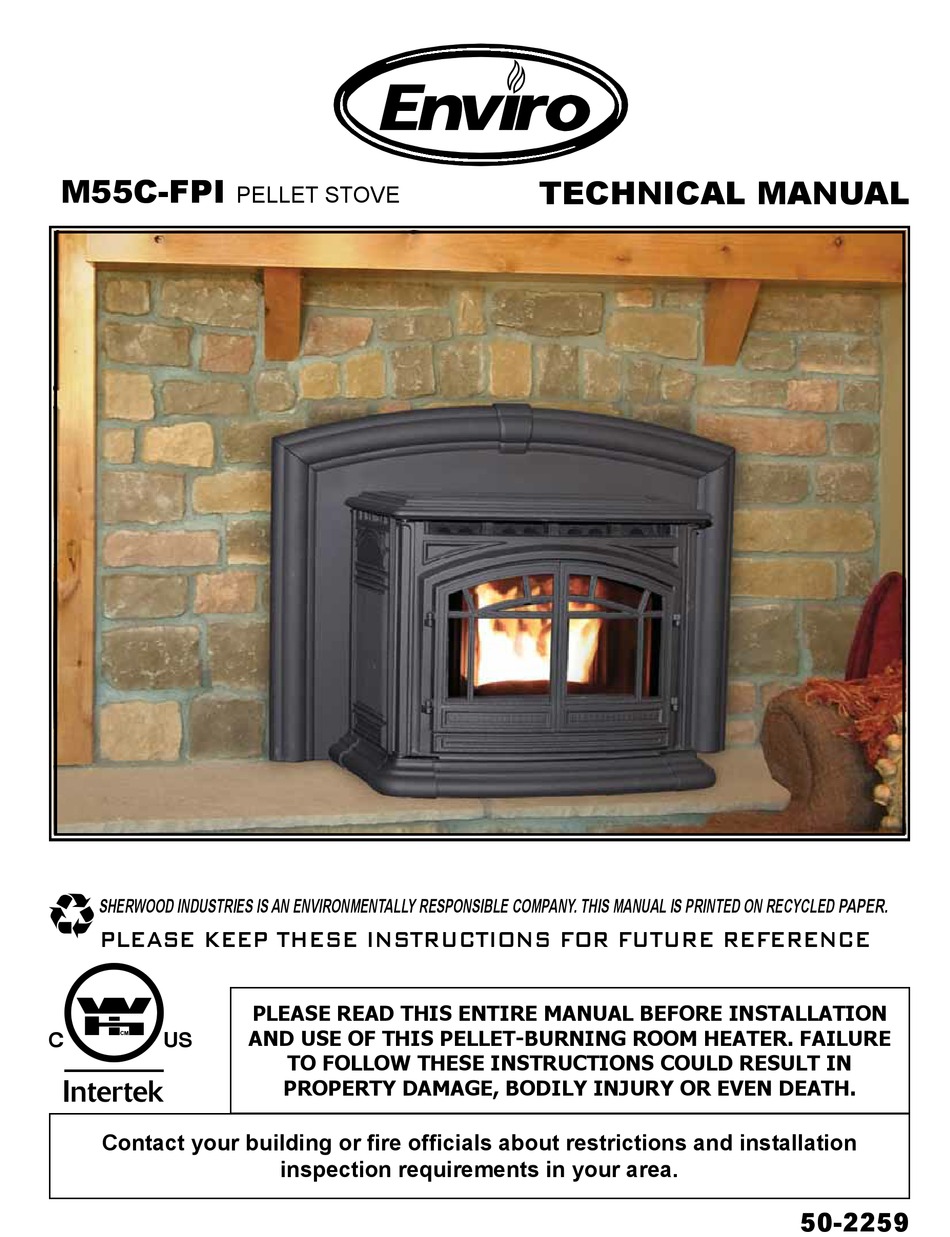

Page 1 M55C-FPI TECHNICAL MANUAL PELLET STOVE SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS PELLET-BURNING ROOM HEATER. FAILURE ...
Page 2: Table Of Contents
Table of Contents Safety Warnings & Recommendations....................3 Specifications..........................5 Rating Label & Location......................5 Dimensions..........................6 Specifications...........................6 Installation.............................7 Deciding Where to Locate your Pellet Appliance................7 Removing Pellet Stove From Pallet.....................7 Installing the Insert Frame & Levelling...................8 Clearances to Combustibles.......................9 Thermostat Installation......................9 Vent Termination Requirements....................10 Outside Fresh-Air Connection....................11 Exhaust And Fresh Air Intake Locations..................11 Masonry Fireplace Installation....................12...
Page 3: Safety Warnings & Recommendations
To prevent the possibility of a fire, ensure that the appliance is properly installed by adhering to the installation instructions. An Enviro dealer will be happy to assist you in obtaining information with regards to your local building codes and installation restrictions.
Page 4 If this power cord should become damaged, a replacement power cord must be purchased from the manufacturer or a qualified Enviro dealer. Be careful that the electrical cord is not trapped under the appliance and that it is clear of any hot surfaces or sharp edges. This unit’s maximum power requirement is 504 watts.
Page 5: Specifications
Specifications & l ating abel ocation The rating label is located on the top of the hopper.
Page 6: Dimensions
16 1/8" 24 3/4" 26 7/8" 12" 32 7/8" 23" 44" Figure 2: Dimensions of M55C-FPI. pecificationS Input rating when using: Wood Pellets/Corn - 55,000BTU (16.1KW•hr) & Wheat/Barley - 53,000BTU (15.5KW•hr). Table 1: M55C-FPI Specifications. Description Fuel type Residential Pellet Heater 6mm (¼”) dia.
Page 7: Installation
Installation eciding here to ocate your ellet ppliance 1. Unit must be installed in a masonry fireplace. 2. Do not install the stove in a bedroom or room where people sleep in. 3. Locate the stove in a large and open room that is centrally located in the house. This will optimize heat circulation.
Page 8: Installing The Insert Frame & Levelling
5. Adjust the top anchor bolts to secure it to the lintel. Ready-rod may be substituted if the bolts are not long enough. Anchor Bolts NOTE: Surround Panel removed for clarity Levelling Bolts Figure 4: M55C-FPI Frame.
Page 9: Clearances To Combustibles
Pour éteindre eur. Figure 4: M55C-FPI Clearance to Combustibles. MODE "AUTO CAUTION: ATTENTION: hermoStat nStallation L'APPAREIL EST CHAUD LORSQU'IL HOT WHILE IN OPERATION. DO 1.
Page 10: Vent Termination Requirements
Installation ermination equirementS IT IS RECOMMENDED THAT YOUR PELLET STOVE BE INSTALLED BY AN AUTHORIZED DEALER/INSTALLER. Table 2: Use in conjunction with Figure 6 for allowable exterior vent termination locations. Letter Minimum Clearance Description 24 in (61 cm) Above grass, top of plants, wood, or any other combustible materials. 48 in (122 cm) Beside/below any door or window that may be opened.
Page 11: Outside Fresh-Air Connection
Base of unit to center of intake ” (130 mm) Center of unit to center of 16.273 intake 5” (128 mm) 5.120 3.000 4.952 9.624 Figure 8: M55C-FPI Inlet and Outlet Location. DATE: 20/7/2010 SHERWOOD INDUSTRIES LTD. SPECIAL NOTE: BACK VIEW DESC: M55C-FPI MODEL:...
Page 12: Masonry Fireplace Installation
Installation Installation aSonry ireplace nStallation non-combustible manufactured Rain Cap Steel Plate or Flashing hearth pad (min. 24 gauge galvanized steel or similar) must cover combustible flooring underneath, as well as 6” (150 Flexible or Rigid 4" mm) in front of the heater and 6” (150 Stainless Steel Liner mm) to the side of the heater.
Page 13: Positive Flue Connection
Installation (uSa o oSitive onnection Without a eline This unit does not require a full reline (in USA only) when installing into a masonry fireplace, however, it is recommended to ensure proper drafting of the appliance. IMPORTANT: Ensure the chimney and firebox are cleaned and free of all debris, including soot and ashes, before proceeding with this installation.
Page 14: Built-In Installation
Installation without a masonry fireplace - The M55C-FPI can be installed without an existing masonry fireplace by building an enclosure for the unit to be installed in. This enclosure must be a minimum of 18” deep, 36” wide and 23-1/4” high and made with ½”...
Page 15: Horizontal Exhaust Through Wall Installation
Installation orizontal xhauSt hrough nStallation Vent installation: install vent at clearances specified by the vent manufacturer. A chimney connector shall not pass through an attic or roof space, closet or similar concealed spaces, or a floor, or ceiling. Where passage through a wall or partition of combustible construction is desired, the installation must conform to CAN/CSA-B365 Installation Code for Solid-Fuel-Burning Appliances and Equipment and with all local regulations, including those referring to regional and national.
Page 16: Through Wall With Vertical Rise And Horizontal Termination Installation
Installation recommended - t hrough ertical iSe and orizontal ermination nStallation NOTE - This venting configuration is only for use with the Built-In installation. Termination cap 90°elbow Wall framing Vertical section of vent pipe Wall strap Horizontal frame for thimble Clean out tee Wall thimble...
Page 17: Outside Vertical Installation
Installation utSide ertical nStallationS To accomplish an outside vertical pipe installation, follow the “H ” orizontal xHaust HrougH nstallations section and then finish it by performing the following. 1. Install a tee with clean out on the outside of the house. 2.
Page 18: Inside Vertical Installation
Installation nSide ertical nStallationS 1. Install a tee or 90° elbow on the inside of the house. 2. Install PL vent upward from the tee. Make sure that you install support brackets to keep the vent straight and secure. All joints in the exhaust venting system must be fastened with at least three (3) screws.
Page 19: Slider/Damper Set-Up
Installation lider amper This is used to regulate the airflow through the pellet stove. CONVECTION SLIDER EXHAUST DAMPER CHANNEL EXHAUST SENSOR & NOTE: THE SURROUND REMOVABLE PLATE PANEL MOUNT WAS REMOVED FOR CLARITY Figure 15: Slider/Damper Plate & Rod in Unit. Figure 16: Efficient Flame.
Page 20: Troubleshooting
Troubleshooting DO NOT: ● Service the stove with wet hands. The stove is an electrical appliance, which may pose a shock hazard if handled improperly. Only qualified technicians should deal with possible internal electrical failures. ● Do not remove from the firebox any screws without penetrating oil lubrication. WHAT TO DO IF: 1.
Page 21 Troubleshooting • Exhaust Temperature Sensor failure. Bypass sensor located on Exhaust Blower, if stove now operates properly, the unit may require cleaning or a new sensor. Contact your local dealer for service. • Check the agitator to make sure it is turning properly 3.
Page 22 Troubleshooting 7. The convection blower will not function normally. • Check the line fuse to see if it has blown. • Clean all grill openings at the back and below unit . • Check the Voltage across the blower wires, It should adjust with the heat output settings. If not contact your local dealer for service.
Page 23: Wiring Diagram
Wiring Diagram Black Brown 2µF Capacitor Black Exhaust Blue Combustion Temperature Brown Blower Blue Blue Sensor Black White 120V Ground Air Pump White Plug Green Ground Ignitor White Ground Thermostat White Agitator Blue/Yellow Black Motor White Auger Yellow Yellow Motor Purple Brown Blue...
Page 24: Parts List
50-2155 OPTION Pellet Stove Thermostat 50-1971 OPTION Glass Tinted M55C 50-2247 OPTION M55C-FPI Service Rails 50-2262 Hopper Switch 50-2052 High Limit Temp Sensor 200°F (93°C) Manual Reset EF-016 120°F (49°C) Ceramic Fan Temp Sensor EC-001 ⅝” I.D. Auger Brass Bushings (Set of 2)
Page 25 50-2288 Burn Pot Scraper Tool 50-1254 Door And Ash Door Gasket /16 Firm - 10ft (3.05m) 50-2058 M55C-FPI Cast Front Mounting Brackets (Set of 2) 50-2289 4” Exhaust Starter Tube C/W Gasket 50-2290 Cast Fluted Firebox Liner 50-2291 Pedestal & Ash Pan Gasket - 10ft (3.05m)
Page 26 M55C-FPI Cast Ash Door - Beach 50-2276 M55C-FPI Cast Ash Door - Chestnut 50-2282 M55C-FPI Cast Ash Door - DB 50-2299 M55C-FPI Cast Surround Trim Only - PD 50-2272 M55C-FPI Cast Surround Trim Only - Beach 50-2278 M55C-FPI Cast Surround Trim Only - Chestnut 50-2284...
Page 27: Parts Diagram - Components
Parts Diagram - Components...
Page 28: Parts Diagram - Steel
Parts Diagram - Steel...
Page 29: Warranty
Industries, our commitment to the highest level of quality and customer service is the most important thing we do. Each Enviro stove is built on a tradition of using only the finest materials and is backed by our Exclusive Lifetime Limited Warranty to the original purchaser. With Enviro, you’re not just buying a stove, you’re buying a company with years of unequalled performance and quality.
Page 30 Limited Warranty on this stove. If unsure as to the extent of this Limited Warranty, contact your authorized Enviro dealer before installation. 10. Sherwood Industries Ltd. will not be responsible for inadequate performance caused by environmental conditions.
Page 31 If the stove is used for commercial purposes, it is excluded from the Limited Warranty. 24. No dealer, distributor, or similar person has the authority to represent or warrant Enviro products beyond the terms contained within the Limited Warranty. Sherwood Industries Ltd. assumes no liability for such warranties or representations.
Page 32: Installation Data Sheet
SERIAL NUMBER:___________________________ _________________________________________ DATE OF PURCHASE: _____________ (dd/mm/yyyy) DATE OF INSTALLATION:___________ ADDRESS: (dd/mm/yyyy) MAGNEHELIC AT INSTALL:___________________ _________________________________________ INSTALLER’S SIGNATURE: _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ MANUFACTURED BY: SHERWOOD INDUSTRIES LTD. 6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3 www.enviro.com July 11, 2011 C-12333...
