Enviro Meridian Owner's Manual

Freestanding and fireplace insert
Hide thumbs Also See for Meridian:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Technical Manual
SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

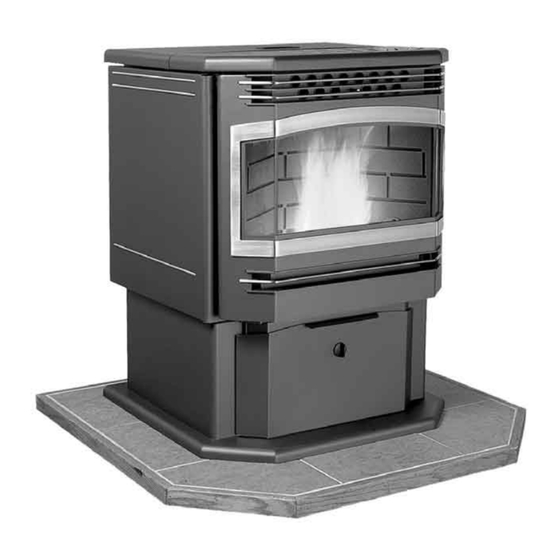

PELLET STOVE
MERIDIAN
Freestanding and Fireplace Insert
OWNER'S MANUAL
Contact your building or fire officials about restrictions and installation
inspection requirements in your area.
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION
AND USE OF THIS PELLET-BURNING ROOM HEATER. FAILURE TO
FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY
DAMAGE, BODILY INJURY OR EVEN DEATH.
50-765

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Meridian and is the answer not in the manual?

Questions and answers

Related Manuals for Enviro Meridian

Summary of Contents for Enviro Meridian

  • Page 1 SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE PELLET STOVE MERIDIAN Freestanding and Fireplace Insert OWNER’S MANUAL Contact your building or fire officials about restrictions and installation inspection requirements in your area.

  • Page 2: Table Of Contents

    Table of Contents Introduction...3 Pellet Quality...3 Rating Label Location...3 Important Safety Data...4 Safety Warnings And Recommendations...4 Operating Instructions...6 Automatic Safety Features...6 Control Board Functions...6 Operating Your Pellet Stove...7 Turning Your Pellet Stove Off...7 Routine Cleaning and Maintenance...8 Installation...11 Deciding Where to Locate your Pellet Appliance...11 Removing Pellet Stove From Pallet...11 Dimensions - Freestanding...12 Dimensions - Fireplace Insert...12...

  • Page 3: Introduction

    UALITY Pellet quality is important, please read the following: Your enviro pellet stove has been designed to burn wood pellets only. Do not use any other type of fuel, as this will void any warranties stated in this manual. The performance of your pellet stove is greatly affected by the type and quality of wood pellets being burned.

  • Page 4: Important Safety Data

    To prevent the possibility of a fire, ensure that the appliance is properly installed by adhering to the installation instructions. An ENVIRO dealer will be happy to assist you in obtaining information with regards to your local building codes and installation restrictions.

  • Page 5: Save This Instruction Manual For Future Reference

    GLASS: Do not abuse the glass by striking or slamming the door. Do not attempt to operate the stove with broken glass. The stove uses ceramic glass. Replacement glass must be purchased from an ENVIRO dealer. Do not attempt to open the door and clean the glass while the unit is in operation or if glass is hot.

  • Page 6: Operating Instructions

    Operating Instructions UTOMATIC AFETY EATURES Your pellet Stove has the following safety features: A) The stove will shut off when the fire goes out and the exhaust temperature drops below 120 °F (49°C). B) The stove has a high temperature safety switch. If the temperature on the hopper reaches 200 °F (93 °C) the auger will automatically stop, and the stove will shut off when the exhaust temperature cools.

  • Page 7: Operating Your Pellet Stove

    Operating Instructions PERATING ELLET TOVE PRE-BURN INSTRUCTIONS: The burn pot liner holes must be clear and the liner installed correctly against the ignitor tube for proper operation. Check the hopper for enough pellets to start the unit. DO NOT OPERATE THE UNIT WITH THE DOOR OR ASH PAN OPEN. MANUAL MODE: To START: Press the ON / OFF button.

  • Page 8: Routine Cleaning And Maintenance

    Routine Cleaning and Maintenance The following list of components should be inspected and maintained routinely to ensure that the appliance is operating at its optimum and giving you excellent heat value: 2-3 Days / Weekly Semi-annually or 2 Tons of Fuel Burn Pot and Liner Exhaust Vent Ash Pan...
  • Page 9 ASH PAN AND DOOR GASKETS (weekly) After extended use the gasketing may come loose. To repair this, glue the gasketing on using high- temperature fiberglass gasket glue available from your local ENVIRO dealer. This is important to maintain an airtight assembly.

  • Page 10: Firebox Panel

    REPLACING DOOR GLASS It is recommended that your ENVIRO dealer replace the glass if broken. The door glass is made of high temperature PYRO CERAMIC 5 mm thick. The center panel is 15.4” x 9.0”...

  • Page 11: Installation

    ECIDING HERE TO OCATE YOUR 1. Check clearances to combustibles (see I REESTANDING NSTALLATION LEARANCES TO OMBUSTIBLES 2. Do not obtain combustion air from an attic, garage or any unventilated space. Combustion air may be obtained from a ventilated crawlspace. 3.

  • Page 12: Dimensions - Freestanding

    IMENSIONS REESTANDING " (826mm) IMENSIONS IREPLACE NSERT " (605mm) Installation " (632mm) Figure 8: Meridian Freestanding Dimensions. " (326mm) " (583mm) Figure 9: Meridian Fireplace Insert Dimensions. " (604mm)

  • Page 13: Clearances To Combustibles - Freestanding

    6“ (150 mm) in front for ember protection. LCOVE LEARANCES REESTANDING Minimum Width 36" (914mm) Minimum Height 48" (1219mm) Maximum Depth 30" (762mm) Figure 12: Alcove Clearances Freestanding Meridian.

  • Page 14: Clearances To Combustibles - Fireplace Insert

    EDESTAL AND There are two parts to the Meridian insert pedestal and they can be found inside the hopper. Place unit on its back. Two (2) hex head screws are used on each side of the pedestal (refer to Figure 13). Using a ”...

  • Page 15: Mobile Home Installation - Freestanding

    Installation Figure 15: Hopper Cover Screw Placement. Figure 16: Hopper Extension Screw Placement. OBILE NSTALLATION REESTANDING ● Secure the heater to the floor using the holes in the pedestal of the appliance. ● Ensure the unit is electrically grounded to the chassis of your home (permanently). WARNING: Do not install in a room people sleep in.

  • Page 16: Exhaust And Fresh Air Intake Locations

    " (332mm) " 1" (291mm) (25mm) Figure 18: Meridian Freestanding Inlet and Outlet Location. EXHAUST Base of unit to center of flue Side of unit to center of flue Center of unit to center of flue FRESH AIR INTAKE. Base of unit to center of intake...

  • Page 17: Vent Termination Requirements

    ERMINATION EQUIREMENTS IT IS RECOMMENDED THAT YOUR PELLET STOVE BE INSTALLED BY AN AUTHORIZED DEALER/INSTALLER. Table 1: Use in conjunction with Figure 21 for allowable exterior vent termination locations. Letter Minimum Clearance 24 in (61 cm) 48 in (122 cm) 24 in (61 cm) 24 in (61 cm) 24 in (61 cm)

  • Page 18: Corner Through Wall Installation - Freestanding

    ORNER HROUGH NSTALLATION ORIZONTAL XHAUST HROUGH Vent installation: install vent at clearances specified by the vent manufacturer. A chimney connector shall not pass through an attic or roof space, closet or similar concealed spaces, or a floor, or ceiling. Where passage through a wall or partition of combustible construction is desired, the installation shall conform to CAN/CSA-B365 Installation Code for Solid-Fuel-Burning Appliances and Equipment.
  • Page 19 Wall framing Horizontal frame for thimble Figure 24: Straight through Wall Installation - Side View. 3" (75mm) or 4" (100mm) "PL" or "L" vent Wall Thimble 45° Elbow with screen or Termination Cap Vent pipe Termination Wall thimble ENVIRO Meridian...

  • Page 20: Vertical Rise With Horizontal Termination Installation (Recommended) - Freestanding

    Figure 26: Vertical rise with Horizontal Termination. ) - F ECOMMENDED REESTANDING Termination cap 90°elbow Wall framing Horizontal frame for thimble Wall thimble ENVIRO Meridian REESTANDING Termination cap Concrete Wall Clean out tee ������ �������� Wall strap Clean out tee...

  • Page 21: Inside Vertical Installations - Freestanding

    Roof rafter Fire stop with Support Collar Ceiling joist Vertical vent pipe Clean out tee with Pipe adapter ENVIRO Meridian NOTE: All vent sections must maintian 3" (76 mm) clearances to combustibles. Figure 27: Inside Vertical Installation. ECIDING HERE TO...

  • Page 22: Outside Vertical Installations - Freestanding

    UTSIDE ERTICAL NSTALLATIONS To accomplish a outside vertical pipe installation, follow steps 1 through 5 in the “I ” section and then finish it by performing the following (refer to Figure 28). REESTANDING 1. Install a tee with clean out on the outside of the house. 2.

  • Page 23: Hearth Mount Installation - Freestanding

    EARTH OUNT NSTALLATION Clean-out Fresh-air intake should com from chimney. If holes already exist fresh-air intake can be taken through back of the fireplace or through Masonry Fireplace the ash dump. Figure 29: Hearth Mount - Side View. 1. Lock fireplace damper in the open position.

  • Page 24: Installation With Exterior Mounted Exhaust Blower - Freestanding

    NSTALLATION WITH XTERIOR The MERIDIAN can be equipped with an externally mounted exhaust blower (PART #20-070). This optional kit will include all components necessary to install the exhaust blower on any external vertical wall surface. Choose a location for your stove that meets the requirements stated in this manual and allows installation with the least amount of interference to house framing, plumbing, wiring, etc.
  • Page 25 Hook up to wires from the wiring harness for the exhaust blower. All electrical connections must be in accordance with local code requirements (see IRING IAGRAM Installation Siding 90° elbow Wall framing Wall thimble ENVIRO Meridian...

  • Page 26: Through Wall Vertical Installation With Exhaust Blower - Freestanding

    HROUGH ERTICAL NSTALLATION Refer to I NSTALLATION NSTALLATION WITH UTSIDE ERTICAL NSTALLATIONS straps. Maintain clearances to combustibles on vent pipe as well as unit. Rain Cap Roof sheathing Storm collar Roof flashing Roof rafters Ceiling joists Vent Pipe Exterior wall sheathing Outside vent termination...

  • Page 27: Masonry Fireplace Insert Installation - Fireplace Insert

    If the fireplace insert does not fit into a zero clearance fireplace we recommend you use an ENVIRO freestanding model and install as a hearth mounted unit. Install a 3” (76 mm) flex pipe from the stove to the top of the chimney (see “I...

  • Page 28: Installation And Removal Of Control Panel In The Surround Panel - Fireplace Insert

    NSTALLATION AND EMOVAL OF When installing the circuit board control panel into the surround panel, the surround does not need to be assembled. The circuit board will be found in the firebox. Place the circuit board control panel on the backside of the right surround panel so the hinge is on the outside and the top and bottom holes on the control panel line up with those on the surround.
  • Page 29 Magnetic Strips Figure 38: Magnet placement on trim. Surround Panel Figure 39: Corner brackets for trim. Installation 6. Place the second side of the trim 7. On the side trims, there are holes 8. Place Figure 40: Two pieces of corner bracket.

  • Page 30: Plated Trim Installation

    LATED NSTALLATION TO AVOID PERSONAL INJURY DO NOT REMOVE OR REPLACE TRIMS WHEN PELLET STOVE IS HOT! KIT COMPONENTS: Quantity Description Upper Cabinet Trim Lower Cabinet Trim Top Trim Louver #8 nut plated (spares) TOOLS REQUIRED: ● T-20 screwdriver ● REMOVAL OF SIDE TRIMS: When stove is off and cool, open the door.

  • Page 31: Plated Door Installation

    Close door when all three louvers are replaced. Clean all plated surfaces before starting the stove. See in R LEANING LATED URFACES LEANING OUTINE LEANING AND AINTENANCE Figure 46: Inner side of Meridian door. in R LATED URFACES OUTINE LEANING...

  • Page 32: Thermostat Installed

    HERMOSTAT NSTALLED This control board can be placed into two (2) different modes: HI / LOW OPERATION: When the jumper J9 is not jumped then the control board is in a HI / LOW mode operation. If the unit has been placed in the HI / LOW mode, the unit will be taken to a low or idle setting when the thermostat is not calling for heat.

  • Page 33: Special Notes

    HEAT LEVEL and when turned down to LOW HEAT LEVEL, a 0.07” to 0.11” w.c. (0.018 to 0.028 KPa). Some fuels may require higher or lower settings. The pressure readings are taken through a hole in the front of the firebox under the door, using a Magnehelic Gauge.

  • Page 34: Troubleshooting

    DO NOT: ● Service the stove with wet hands. The stove is an electrical appliance, which may pose a shock hazard if handled improperly. Only qualified technicians should deal with possible internal electrical failures. ● Do not remove from the firebox any screws without penetrating oil lubrication. ●...

  • Page 35: Wiring Diagram

    Troubleshooting hose from vacuum switch. Check exhaust vacuum readings by placing the open end of the vacuum hose on a Magnahelic Gauge (readings must be above 0.18” to 0.20” W.C. (44.8 to 49.8 Pa) on low fire). If the motor fails to reach a 0.10” W.C. readings, then replace the combustion blower. üPoor quality fuel –...

  • Page 36: Fuses

    6. The 200 °F ( 93 °C) high limit temperature sensor has tripped. üReset sensor and determine cause – was it convection blower failure or 160 °F ( 71 °C) temperature sensor failure? Bypass the 160 °F ( 71 °C) sensor, does the convection blower come on high? If no, replace the blower.

  • Page 37: Wiring Diagram

    Wiring Diagram White Black Grey Vacuum Grey Switch Blue White Combustion Blower Brown F (49 Exhaust Temperature Sensor Brown Black White Black Ignitor Brown F (49 C) Convection Temperature Sensor Purple Convection White Blower Yellow Auger White Motor F (93 Orange High Limit Orange...

  • Page 38: Parts List

    Reference Number Parts List Description 120 °F (49 °C) Ceramic Fan Temperature Sensor Domestic Power Cord - 115V Auger Motor - 115V Convection Blower 115V Fan Temp Sensor 160 °F (71 °C) High Limit Temp Sensor 200 °F (93 °C) Manual Reset Vacuum Switch - 115V Silicone Hose Aluminum Hose Barb...
  • Page 39 Parts List Reference Number Description Louver Bar Set - Gold Louver Bar Set - Pewter Louver Bar Set - Antique Copper Burn Pot Ash Pan (Freestanding) Pedestal (Freestanding) Cabinet Side Left (Freestanding) Lower Cabinet Trim (1 piece) - Painted (Freestanding) Lower Cabinet Trim (1 piece) - Gold (Freestanding) Lower Cabinet Trim (1 piece) - Pewter (Freestanding) Lower Cabinet Trim (1 piece) - Antique Copper (Freestanding)

  • Page 40: Parts Diagram - Freestanding Steel

    Parts Diagram - Freestanding Steel...

  • Page 41: Parts Diagram - Insert Steel

    Parts Diagram - Insert Steel...

  • Page 42: Parts Diagram - Components

    Parts Diagram - Components MERIDIAN - Components December 2004 � � �� � �� � � � �� �� � �...

  • Page 43: Warranty

    Warranty Sherwood Industries Ltd. gives a five year limited warranty on all steel manufactured parts. A one-year warranty is provided on all electrical components. The above limited warranties are extended only to the original purchaser. There is no warranty on the following parts: ●...

  • Page 44: Installation Data Sheet

    Installation Data Sheet The following information must be recorded by the installer for warranty purposes and future reference. NAME OF OWNER: _________________________________________ ADDRESS: _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ MODEL:___________________________________ SERIAL NUMBER:___________________________ DATE OF PURCHASE: _____________ DATE OF INSTALLATION:___________ MAGNEHELIC AT INSTALL:___________________ INSTALLER’S SIGNATURE: _________________________________________ NAME OF DEALER:...
