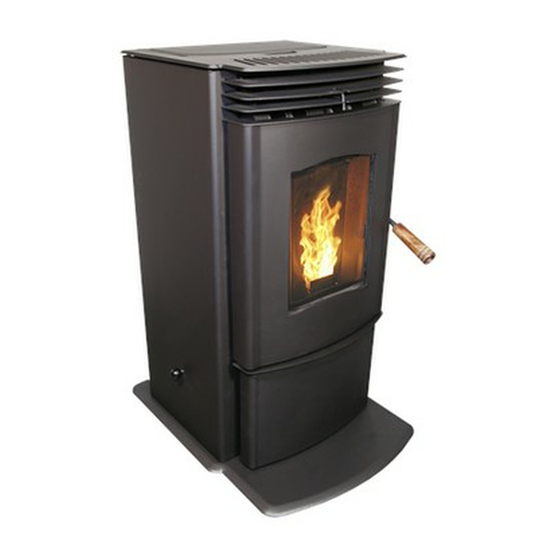

MINI
A U T O P O R T A N T E P O Ê L E À G R A N U L É S
MANUEL DU
PROPRIÉTAIRE
S'IL VOUS PLAÎT LIRE CE MANUEL EN ENTIER AVANT L'INSTALLATION
ET L'UTILISATION DE CE CHAMBRE PELLET-POÊLE. NE PAS SUIVRE CES
INSTRUCTIONS POURRAIT CAUSER DES DOMMAGES, BLESSURES OU
MÊME LA MORT.
Contactez votre bâtiment ou d'incendie au sujet des
restrictions et des exigences d'inspection d'installation
dans votre région.
4001609
50-1927
Version Française: www.enviro.com/fr.html

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MINI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Enviro MINI

Summary of Contents for Enviro MINI

  • Page 1 ET L’UTILISATION DE CE CHAMBRE PELLET-POÊLE. NE PAS SUIVRE CES INSTRUCTIONS POURRAIT CAUSER DES DOMMAGES, BLESSURES OU MÊME LA MORT. Contactez votre bâtiment ou d’incendie au sujet des restrictions et des exigences d’inspection d’installation dans votre région. 4001609 50-1927 Version Française: www.enviro.com/fr.html...

  • Page 2: Table Of Contents

    Table des Matières Introduction...........................3 Rating Label Location........................3 Safety Warnings And Recommendations..................3 Pellet Quality..........................6 Emissions and Efficiencies........................7 Specifications.............................8 Operating Instructions........................9 Routine Mainenance and Cleaning....................12 Installation..........................14 Deciding Where to Locate your Pellet Appliance................14 Appliance Dimensions and Specifications..................14 Removing Pellet Stove From Pallet.....................15 Hearth Pad (50-1219) Installation....................15 Clearances to Combustibles.......................16 Alcove Clearances........................16...

  • Page 3: Introduction

    Pour éviter la possibilité d’un incendie, veiller à ce que l’appareil est correctement installé en adhérant aux instructions d’installation. Un concessionnaire de ENVIRO sera heureux de vous aider à obtenir des informations au sujet de vos codes de construction locaux et des restrictions d’installation.
  • Page 4 Pour éviter la possibilité d’un incendie, veiller à ce que l’appareil est correctement installé en adhérant aux instructions d’installation. Un concessionnaire de ENVIRO sera heureux de vous aider à obtenir des informations au sujet de vos codes de construction locaux et des restrictions d’installation.
  • Page 5 GLASS: Do not abuse the glass by striking or slamming the door. Do not attempt to operate the stove with broken glass. The stove uses ceramic glass. Replacement glass must be purchased from an ENVIRO dealer. Do not attempt to open the door and clean the glass while the unit is in operation or if glass is hot.

  • Page 6: Pellet Quality

    Pellet quality is important, please read the following: Your enviro pellet stove has been designed to burn wood pellets only. Do not use any other type of fuel, as this will void any warranties stated in this manual. The performance of your pellet stove is greatly affected by the type and quality of wood pellets being burned.

  • Page 7: Emissions And Efficiencies

    Rates: This manual describes the installation and operation of the Enviro Mini 1200 wood heater. This heater meets the 2015 U.S. Environmental Protection Agency’s pellet emission limits for pellet emission limits sold after May 15, 2015. Under specific test conditions this heater has been shown to deliver heat at rates ranging from 22,600-30,00 Btu/hr.

  • Page 8: Specifications

    (483 mm) " (868 mm) AUGER MODE AUTO/OFF HIGH/LOW MANUAL FEED RATE HEAT LEVEL TRIM COMBUSTION BLOWER TRIM ROOM AIR ON/OFF FAN ON/OFF " " (444 mm) (496 mm) " " (503 mm) (632 mm) Figure 2: Dimensions of Mini.

  • Page 9: Operating Instructions

    Operating Instructions oNtrol oard uNctioNs 1. AUGER LIGHT: This green light will flash in conjunction with the auger pulse. 2. MODE LIGHT: Responsible for signaling the state of the control AUGER board. When the light is flashing the stove is in an automatic start mode or the thermostat has control of the unit.
  • Page 10 Operating Instructions AUGER AUGER MANUAL MODE: MODE MODE All control of circuit board function is adjusted at the circuit board. To START: Press the ON / OFF button. The stove will turn on. The AUTO/OFF AUTO/OFF system light will flash. The Auger Light will flash with each pulse of the HIGH/LOW HIGH/LOW MANUAL...
  • Page 11 Operating Instructions lider amper THE SLIDER / DAMPER MUST BE SET AT TIME OF INSTALLATION. This is used to regulate the airflow through the pellet stove. If, after long periods of burning, the fire builds up and overflows the burn pot or there is a build up of clinkers, this would be a sign that the pellet quality is poor, this requires more primary air, the slider damper must be pulled out to compensate.

  • Page 12: Routine Mainenance And Cleaning

    Cloth, Vacuum with fine filter bag BURNER POT AND LINER (2-3 days) Figure 9: Mini Burn pot and Liner Every two to three days (when the unit is cold), remove the burn-pot liner from the stove. Using a metal scraper, remove material that has accumulated or is clogging the liner’s holes. Then dispose of the scraped ashes from the liner and from inside the burn-pot.
  • Page 13 • Vacuum out all three (3) chambers. • Close all the clean-out covers Loosen the four (4) screws, rotate and tighten the screws. counter-clockwise & remove. Figure 11: Mini Clean-Out Covers.

  • Page 14: Installation

    (483 mm) " (868 mm) AUGER MODE AUTO/OFF HIGH/LOW MANUAL FEED RATE HEAT LEVEL TRIM COMBUSTION BLOWER TRIM ROOM AIR ON/OFF FAN ON/OFF " " (444 mm) (496 mm) " " (503 mm) (632 mm) Figure 12: Dimensions of Mini.

  • Page 15: Removing Pellet Stove From Pallet

    T-20 screws. 8. Adjust the leveling legs to level and support stove. 9. Re-install the cab sides and ash pan Figure 16: Screws to take out to remove cover. Figure 17: Mini Bern Hearth Pad in Place. stove from pallet.

  • Page 16: Clearances To Combustibles

    If you do not use the supplied hearth pad a hearth pad must be used when on combustible material. If the Mini is installed on carpet the use of a solid material must be used under leveling legs. 3"...

  • Page 17: Vent Termination Requirements

    Installation ermiNatioN equiremeNts IT IS RECOMMENDED THAT YOUR PELLET STOVE BE INSTALLED BY AN AUTHORIZED DEALER/INSTALLER. Table 1: Use in conjunction with Figure 9 for allowable exterior vent termination locations. Letter Minimum Clearance Description 24 in (61 cm) Above grass, top of plants, wood, or any other combustible materials. 48 in (122 cm) Beside/below any door or window that may be opened.

  • Page 18: Outside Fresh-Air Connection

    [at center of unit] FRESH AIR INTAKE. Base of unit to center of intake 6⅜” (162 mm) Center of unit to center of intake 2 (53 mm) ” " (260mm) " (162mm) " (53mm) Figure 22: Mini Inlet and Outlet Location.

  • Page 19: Mobile Home Installation

    (3) screws evenly spaced. CAUTION: THE STRUCTURAL INTEGRITY OF THE MANUFACTURED HOME FLOOR, WALL AND CEILING/ROOF MUST ENVIRO Mini BE MAINTAINED. Optional Hearth Pad Flooring Steel Frame ” Lag Bolts...

  • Page 20: Horizontal Exhaust Through Wall Installation

    Installation orizoNtal XHaust HrougH NstallatioN Vent installation: install vent at clearances specified by the vent manufacturer. A chimney connector shall not pass through an attic or roof space, closet or similar concealed spaces, or a floor, or ceiling. Where passage through a wall or partition of combustible construction is desired, the installation shall conform to CAN/CSA-B365 Installation Code for Solid-Fuel-Burning Appliances and Equipment.

  • Page 21: Through Wall With Vertical Rise And Horizontal Termination Installation - Freestanding

    Installation 9. The pipe must extend at least 12” (30 cm) away from the building. If necessary, bring another length of pipe (PL type) to the outside of the home to connect to the first section. Do not forget to place high temperature silicone around the pipe that passes through the thimble.

  • Page 22: Inside Vertical Installations

    Installation Nside ertical NstallatioNs 1. Choose a stove location that is ideal. See the Rain Cap (ensure cap is section “d eciding here to ocate your eLLet at least 3ft above the 2 ft .” roof at the lowest point) ppLiance (600 mm) 2.

  • Page 23: Hearth Mount Installation

    Rain Cap Steel Plate or Flashing Installation Flexible or Rigid 6" Stainless Steel Liner eartH ouNt NstallatioN Damper Removed or Fastened Open Refer to Figures 20 and 21. 10" (25.4 cm) Mantel Minimum 8" (20 cm) 1. Install the hearth pad. from top of stove Flue 2.

  • Page 24: Exterior Mounted Exhaust Blower (20-070)

    XHaust loWer The Mini can be equipped with an externally mounted exhaust blower. This optional kit includes all components necessary to install the exhaust blower on any vertical wall surface. Choose a location for your stove that meets the requirements...

  • Page 25: Typical Through Wall With Exterior Blower Kit Installation - Horizontal Termination

    Installation ypical HrougH Xterior loWer NstallatioN orizoNtal ermiNatioN 90° Elbow 45°Elbow with Rodent screen or stainless steel termination hood 2ft (610mm) Riser Pipe Adaptor Exterior Blower and Housing Electrical Cable Figure 36: Through Wall Installation with Exterior Blower Kit. NOTE: Ensure that all interior vent connections are sealed by placing a small bead of high temperature silicone around each chimney connection.

  • Page 26: Typical Through Wall With Exterior Blower Kit Installation - Vertical Termination

    Installation ypical HrougH Xterior loWer NstallatioN ertical ermiNatioN Roof Sheathing Rain Cap Roof Flashing Roof Rafters Ceiling Joists Follow the previous pages for through wall installations. Ensure that vent pipe is properly secured to wall using wall straps. Maintain clearances to combustibles on vent pipe as well as unit.

  • Page 27: Slider/Damper Set-Up

    Installation lider amper This is used to regulate the airflow through the pellet stove. The slider damper should be initially set by a trained technician using magnehelic. The slider damper knob is located on the left side of the stove. The combustion exhaust blower is a variable speed blower controlled by the heat output button.

  • Page 28: Troubleshooting

    Troubleshooting DO NOT: ● Service the stove with wet hands. The stove is an electrical appliance, which may pose a shock hazard if handled improperly. Only qualified technicians should deal with possible internal electrical failures. ● Do not remove from the firebox any screws without penetrating oil lubrication. WHAT TO DO IF: 1.

  • Page 29: Wiring Diagram

    Troubleshooting Poor Quality Fuel – Insufficient energy in the fuel to produce enough heat to keep the stove burning or operational. Exhaust Temperature Sensor failure. – Bypass sensor located on Exhaust Blower if stove now operates properly, the unit may require cleaning or a new sensor. Contact your local dealer for service. Check the fuse on the circuit board.
  • Page 30 Troubleshooting 7. The convection blower will not function normally. Clean all grill openings at the back and below unit . Press the fan button; does the fan come on? Press again to verify that the blower turns on; if, not contact your local dealer for service.

  • Page 31: Wiring Diagram

    Wiring Diagram Armor Cable Supplied Grey Optional Exterior Vacuum Exhaust Blower Grey Switch Black White White Combustion Blue Brown Blower Exhaust Temperature Sensor Power Cord Brown Ground Black 115V 115V White Black Black White 220V 220V Brown Blue Thermostat Common 5 Amp Fuse Ignitor...

  • Page 32: Parts List

    Parts List Reference Description Part Number Number 120°F (49°C) Ceramic Fan Temperature Sensor EC-001 Auger Motor - 115V EF-001 High Limit Temp Sensor 200°F (93°C) Manual Reset EF-016 Vacuum Switch - 115V EF-017 Silicone Hose EF-018 Aluminum Hose Barb EF-019 Shoulder Bolt, Hardened Bushing &...
  • Page 33 50-1178 Ash Pan Cover 50-1180 Ash Pan 50-1969 Ash Shelf Louver 50-1182 Starter Pipe 3” 50-1185 60mm Tangential Blower Mini - 115V 50-1217 Mini Hearth Pad 50-1219 Burner Scraper Tool 50-1254 Leveling Legs (Set of 4) 50-1342 Back Grill 50-1297...

  • Page 34: Parts Diagram - Components

    Parts Diagram - Components G H/ M AN A IR T IO Mini - Components September 2008...

  • Page 35: Parts Diagram - Steel

    Parts Diagram - Steel...

  • Page 36: Warranty

    6782 Old eld Road, Victoria, BC . Canada V8M 2A3 Sherwood Industries Ltd et ses employés ou représentants ne pourront en Enregistrement de la garantie en ligne: www.enviro.com/warranty/ charge des dommages, que ce soit directement ou indirectement causés par un usage impropre, le fonctionnement, l'installation, l'entretien ou la maintenance de cet appareil.

  • Page 37: Notes

    Notes...

  • Page 38: Installation Data Sheet

    SERIAL NUMBER:___________________________ _________________________________________ DATE OF PURCHASE: _____________ (dd/mm/yyyy) DATE OF INSTALLATION:___________ ADDRESS: (dd/mm/yyyy) MAGNEHELIC AT INSTALL:___________________ _________________________________________ INSTALLER’S SIGNATURE: _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ MANUFACTURED BY: SHERWOOD INDUSTRIES LTD. 6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3 www.enviro.com June 13, 2016 C-14941...
