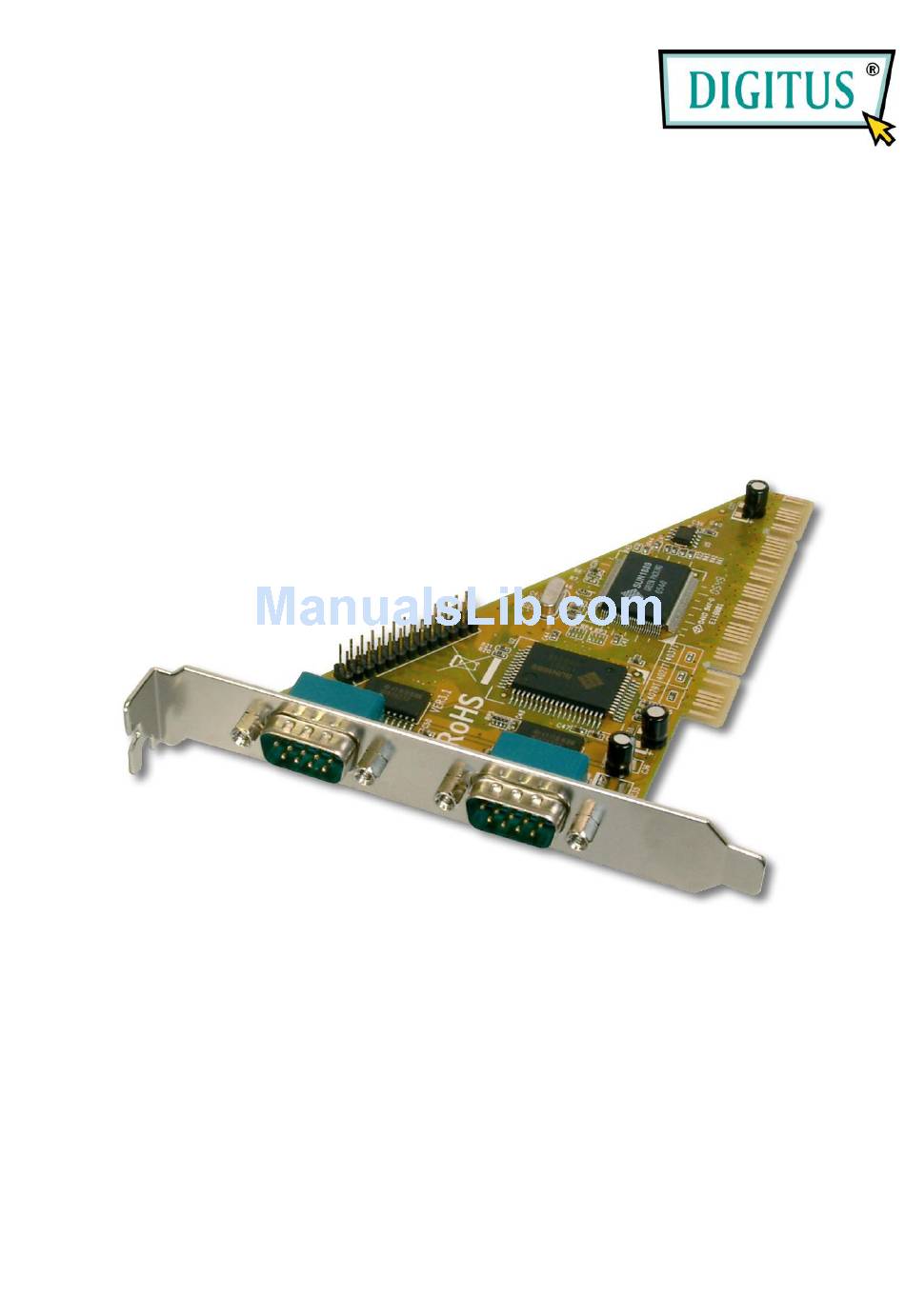

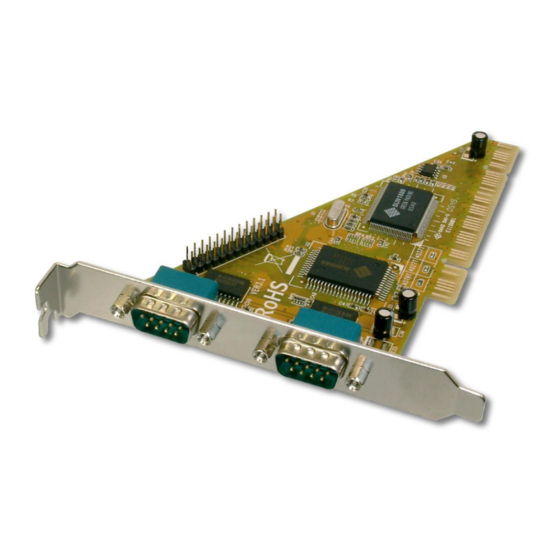

- Page 1 MULTI I/O COMBI PCI ADD-ON CARD User Manual...
-
Page 2: Features And Benefits
Features and Benefits Features Supports Standard Parallel Port(SPP), Enhanced Parallel Port(EPP) & Enhanced Capability Port(ECP) Parallel data transfer rate up to 1.5MB/Sec Supports 2 x 16550 Fast UART serial Ports Serial data transfer rate up to 115200bps Easy Plug and Play Automatically selects IRQ &... -
Page 3: System Requirements
System Requirements Windows® 2000/XP/Server 2003/Vista Available PCI slot Hardware Installation Turn Off the power to your computer. Unplug the power cord and remove your computer’ s cover. Remove the slot bracket from an available PCI slot. To install the card, carefully align the card’ s bus connector with the selected PCI slot on the motherboard. -
Page 4: For Windows Xp
(recommended), and click Next. Check Specify a location, uncheck the other boxes, then click Next. Insert the Driver CD, type in D:\PCI_IO\nm9xxx\2000, then click OK. (Change D: to match your CD-ROM driver letter) Click Next and Finish. Restart Windows to complete the installation. For Windows®... -
Page 5: For Windows Vista
At the Found New Hardware Wizard, select Install from a list or specific location (Advanced), then click Next. Insert the Driver CD, check Include this location in the search, uncheck the other box, type in D:\PCI_IO\nm9xxx\2003, then click OK. (Change D: to match your CD-ROM drive letter) If the Hardware Installation window pops up, click Continue Anyway, then Finish. -
Page 6: To Verify Windows® Driver Installation
Click on Close to complete the driver installation. To Verify Windows® Driver Installation Right click My Computer, then click Manage. Click Device Manager. Click on the +(plus sign) in front of Ports(COM & LPT), two MosChip PCI Serial Port … and one MosChip PCI Parallel Port …... - Page 7 Follow steps 1-4 again to change the other one serial port if needed. Change Parallel Port Address parallel Some parallel devices need a specific port in order to work. If your parallel devices works properly, do not change this settings. For Windows®...
