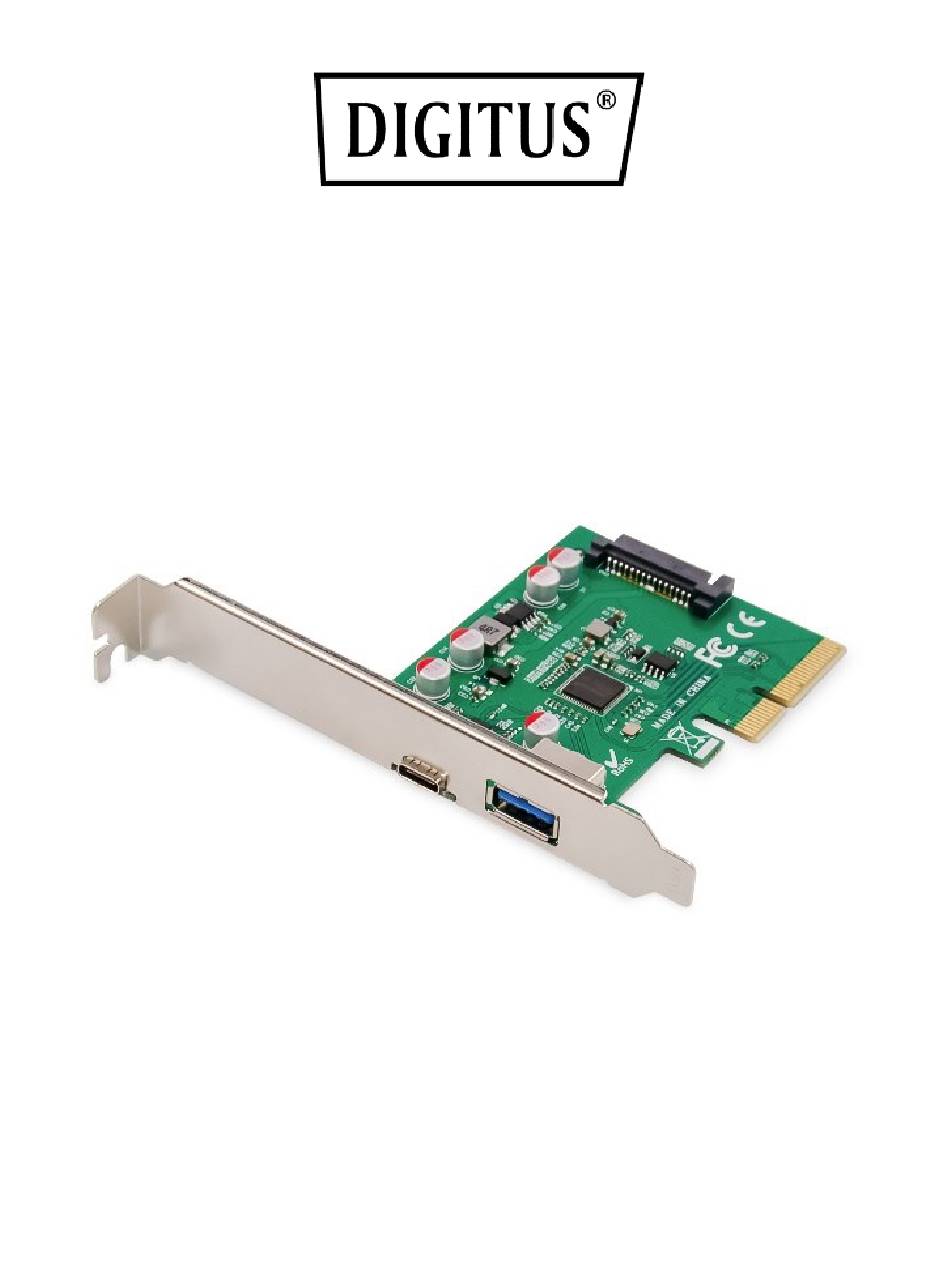

- Page 1 PCIe CARD, USB Type-C™ + USB A Manual DS-30225...
- Page 2 DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or using this product. Please keep this manual for future reference. 1.0 Description The PCIe USB 3.1 2-Port Card is the next generation Universal Series Bus xHCI host controller, bridging PCI Express to USB 3.1 Gen-II, compliant with USB 3.1 Specification Revision1.0 and Intel eXtensible...
-
Page 3: Specification
2.0 Specification • Support PCI Express Gen-IIx2 or Gen3x1 • Support high bandwidth performance with low latency • Support PCI Express Link power management • Compliant with PCI Express Base 3.0 Specification • Compliant with Universal Serial Bus 3.1 Specification Revision 1.0 •... -
Page 4: Package Content
• Support driver on Windows 7, Windows 8, Window 8.1, and Windows 10 • Support various Linux kernels • Chipset: ASM1142 3.0 Package Content Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton: •... -
Page 5: Hardware Description
5.0 Hardware Description A) USB Type-C™ B) USB 3.1 Type A C) SATA Power Jack... -
Page 6: Hardware Installation
6.0 Hardware Installation 1. Turn Off the power to your computer. 2. Unplug the power cord and remove your computer’s cover. 3. Remove the slot bracket from an available PCIe X16 slot. 4. To install the card, carefully align the card’s bus connector with the selected PCIe slot on the motherboard. -
Page 7: Install Drivers
7.0 Install Drivers Windows® Operating Systems For Windows 7 32 or 64bit 1. Please insert the CD driver bound with PCIe USB 3.1 2 Port Card into your CD-ROM Drive. 2. At the Windows desktop, click “Computer” 3. Double click CD-ROM Drive to Brower drivers files. - Page 8 To Verify Windows® Driver Installation Click on the Device Manager tab in System Properties, which you access from the Windows Control Panel. If you has installed successfully, you should see “ASMedia USB3.1eXtensible Host controller”…installed under Universal Serial Bus Controllers item. Support More information and settings please refer to the User Guides or you can contact us.
