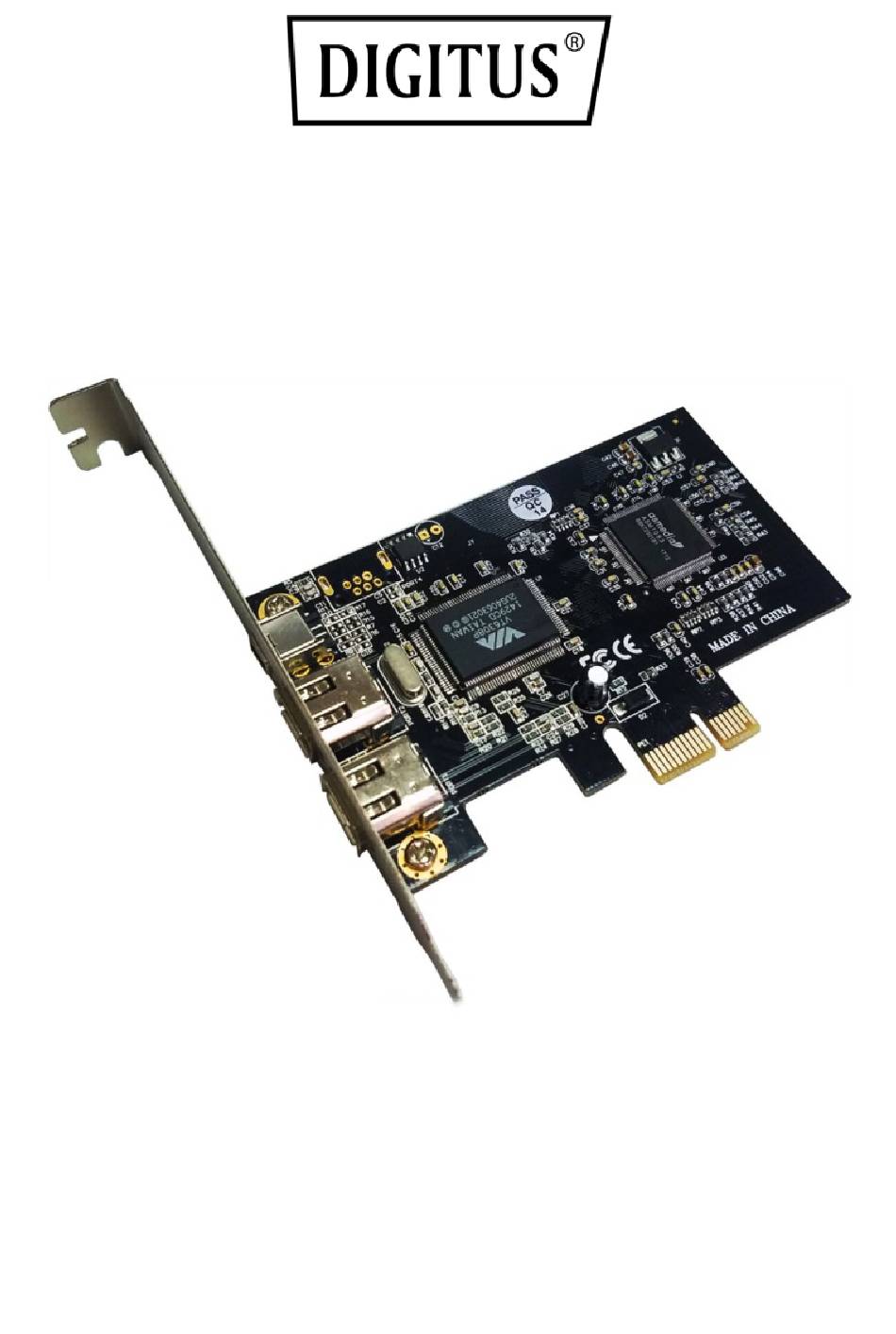

Page 1
PCI Express FireWire 1394-A Card User Manual DS-30201-5 All brand names and trademarks are properties of their respective owners.
Page 2
Features and Benefits Compliant with 1394 Open HCI Specification v1.0 and v1.1 Compliant with PCI Express Base Specification 1.1 Compliant with Physical Layer services as defined in IEEE Std 1394a-2000 Supports PCI-Bus Power Management interface Specification R1.1 ...
Page 3

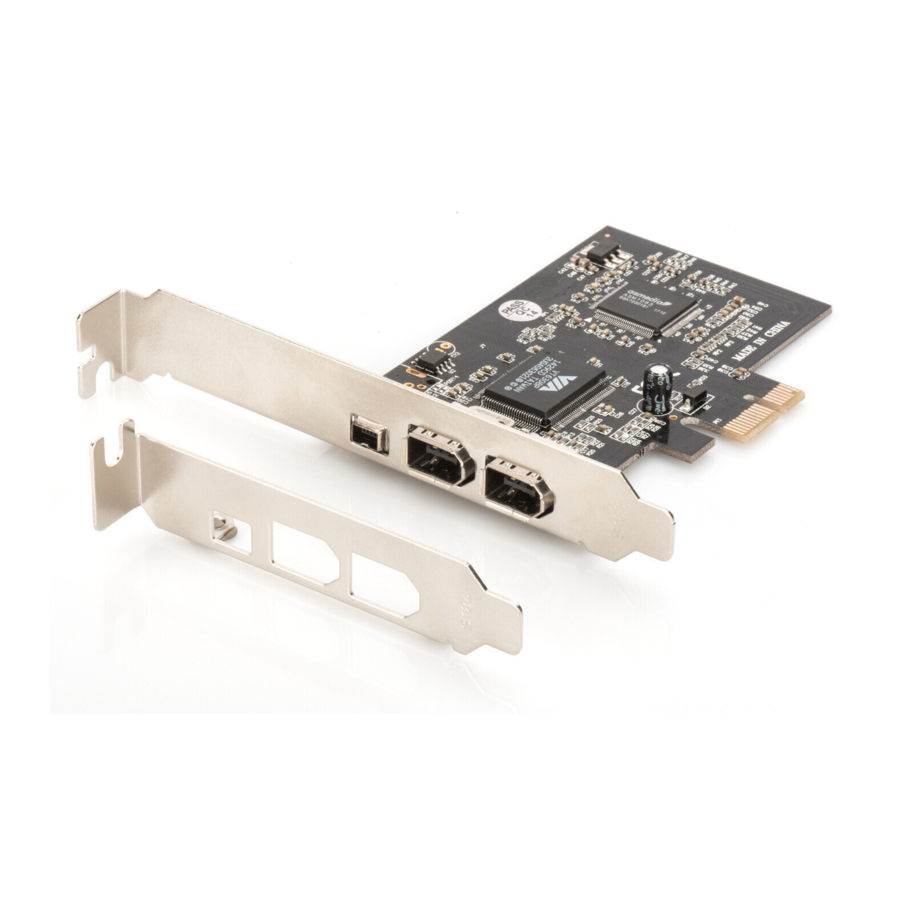

Hardware Description Bus Interface PCI-Express x 1 Connector 2x 1394-A 1x 1394 mini Hardware Installation Turn Off the power to your computer. Unplug the power cord and remove your computer’s cover. Remove the slot bracket from an available PCIe slot. To install the card, carefully align the card’s bus connector with the selected PCIe slot on the motherboard.
Page 4
Driver Installation No driver is required for this product. Windows® 2000/XP/2003/Vista /Win7/Win8/Win10 will automatically detect and install the correct driver for the FireWire 3-Port PCI Card. Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
