Digitus PCI-Add-On-Card Firewire IEEE1394 User Manual

Download this manual

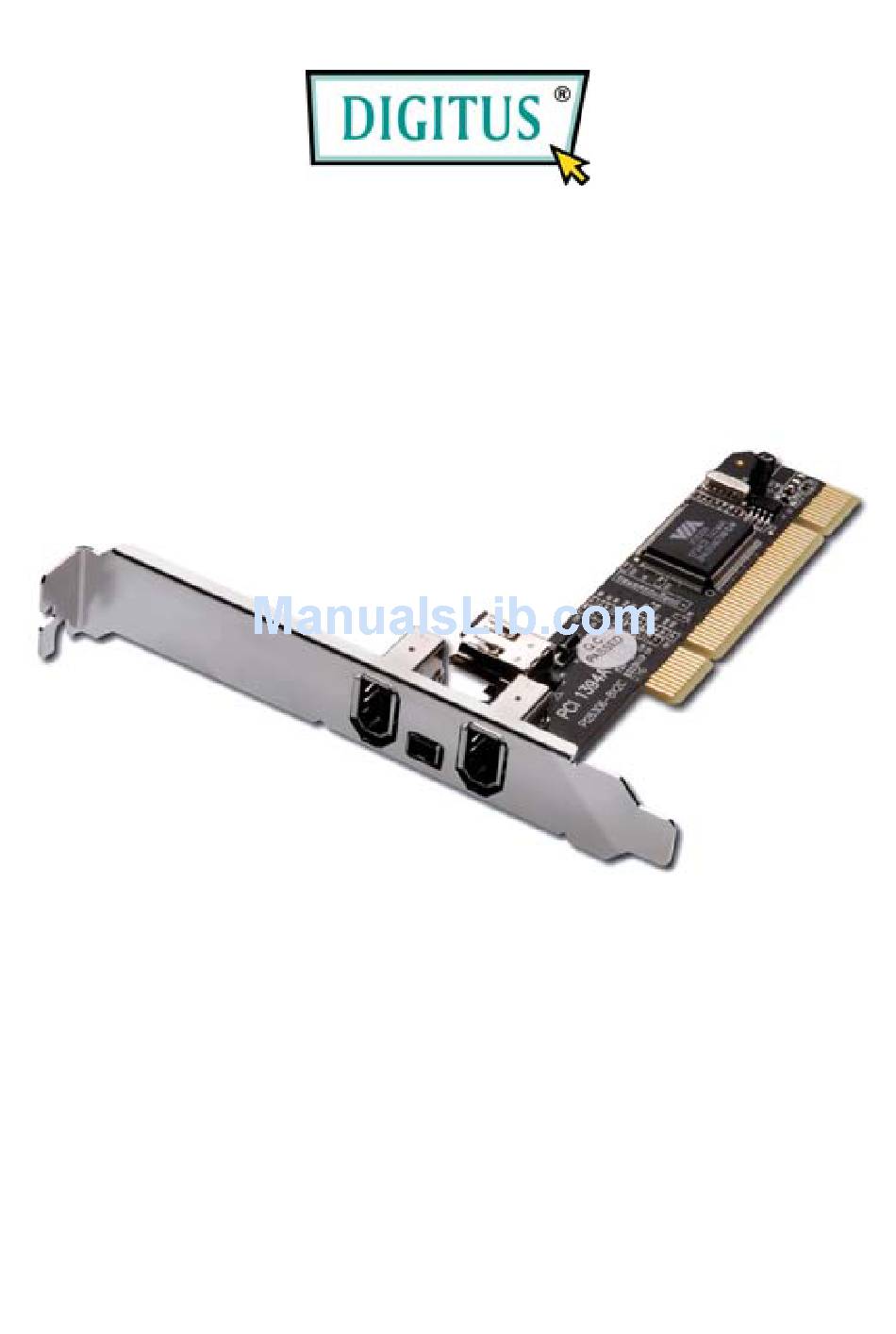

PCI-Add-On-Card

Firewire IEEE1394

User Manual

Table of Contents

Page 1 PCI-Add-On-Card Firewire IEEE1394 User Manual...
Page 2: Features And Benefits
Features and Benefits  VIA VT6306 chipset  PCI 32-bit 33MHz Interface  Compliant IEEE 1394-1995, 1394a (rev. 1.1) and OHCI Interface Specification 1.0  Supports data transfer rates of 100, 200 and 400 Mbps  Hot-swapping features allows you to connect/disconnect devices without powering down your system ...
Page 3: System Requirements

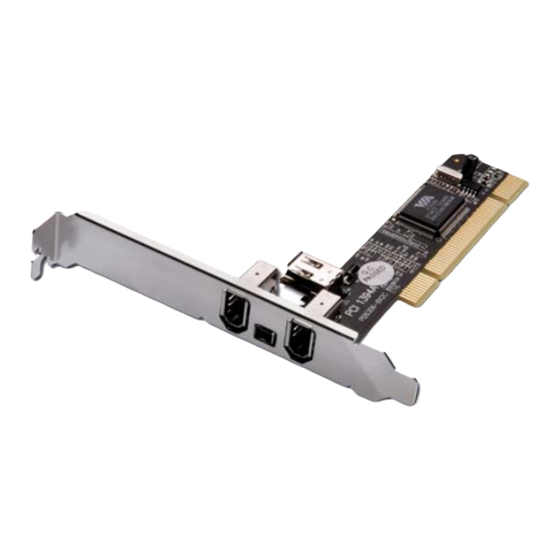

Connectors  2 x external IEEE 1394A 6-pin connectors  1 x external IEE 1394A 4-pin connector  1 x internal IEEE 1394A 6-pin connector System Requirements  Windows 7, Vista, XP, 2000  Available PCI slot Hardware Description Before installing the VIA PCI IEEE 1394 Adapter, please see the photo below highlighting the available IEEE 1394 ports of the card.
Page 4: Hardware Installation
Note: The Internal Port (P1)) shares with first External Port (P2). DO NOT use P1 and P2 at the same time. Hardware Installation Turn Off the power to your computer. Unplug the power cord and remove your computer’s cover.
Page 5: Driver Installation
Remove the slot bracket from an available PCI slot. To install the card, carefully align the card’s bus connector with the selected PCI slot on the motherboard. Push the board down firmly. Replace the slot bracket’s holding screw to secure the card. Replace the computer cover and reconnect the power cord.
