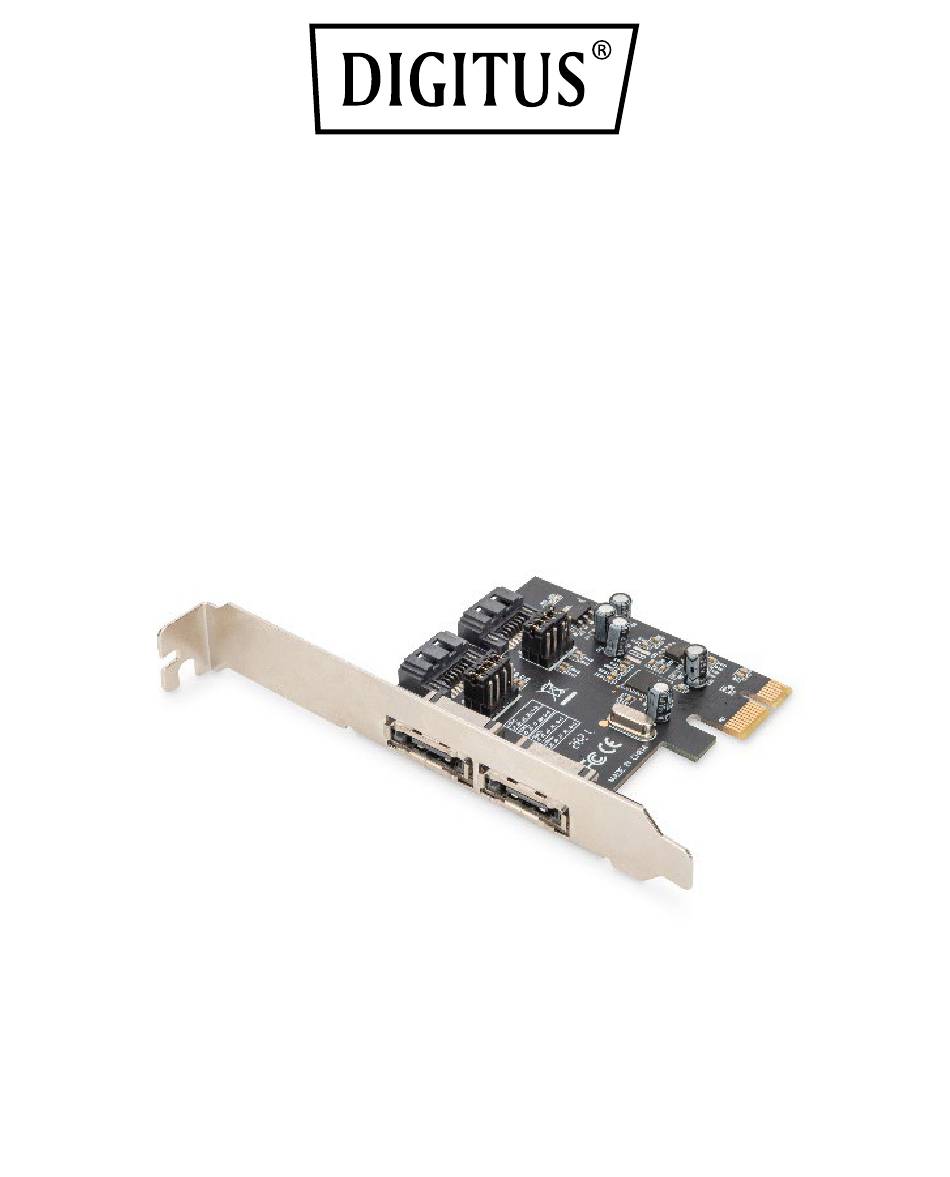

- Page 1 SATA III PCI Express Card, 2-port Quick Installation Guide DS-30105...
-
Page 2: Package Content
1. Introduction The DIGITUS PCI Express SATA Card expands the PC with 2 internal or 2 external SATA ports. Various devices can be connected to this card, such as SSDs, hard disks, DVD drives and more. This card enables the use of the latest and fastest hard disks with 6 Gbit/s and also offers backwards compatibility with older SATA drives with 1.5 Gbit/s or... -
Page 3: Hardware Description

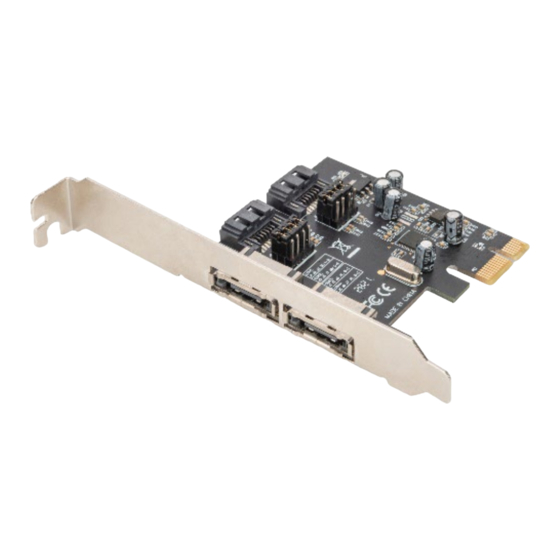

4. Hardware Description There are four SATA ports available on the SATA 6G PCIe Card, 2 internally SATA connectors and 2 eSATA connectors externally. Based on the image below, the respective ports have been name Conl1 through Con4. Con3 & Con4 are internal SATA ports, while Con1 and Con2 are external SATA ports. - Page 4 Jumper Settings (Default Mode: 2 ~ 3 close) J (Jumper Settings) Description Active Port J1 J2 J3 J4 2-3 Close Enable SATA Port (Con3 , Con4) J5 J6 J7 J8 2-3 Close J1 J2 J3 J4 1-2 Close Enable eSATA Port (Con1 , Con2) J5 J6 J7 J8 1-2 Close J1 J2 J3 J4...
-
Page 5: Hardware Verify
5. Hardware verify Verifying for Windows XP / Vista / 7 1. Right click My Computer and click Manage 2. Select Device Manager 3. Look for the following Windows® xp: Double click SCSI and RAID Controller： ASMedia 106X SATA Controller should be displayed ...
