Summary of Contents for Digitus DN-10161

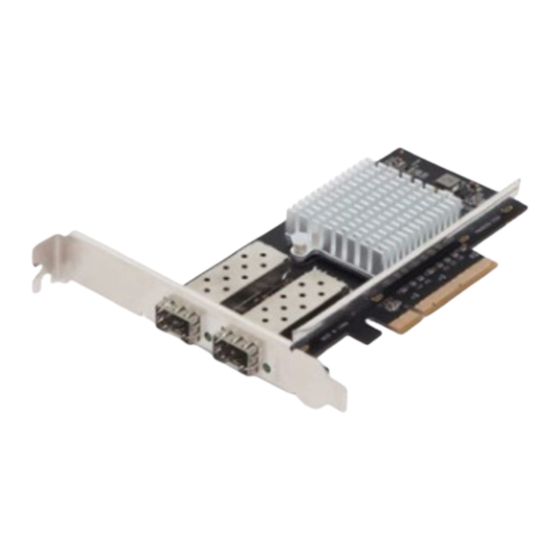

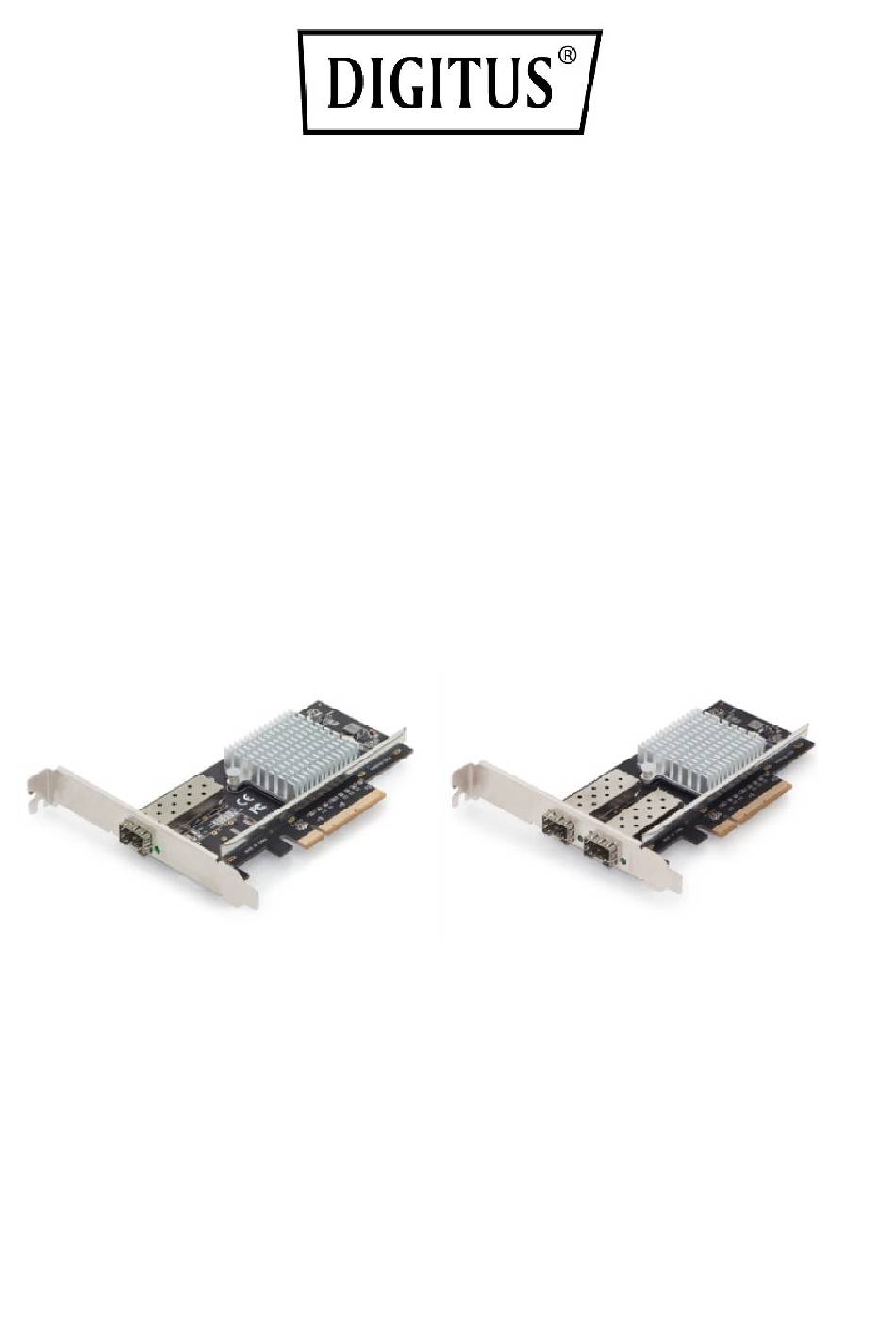

- Page 1 PCIe 10G SFP+ Network Controller Card User Manual DN-10161 DN-10162...
-
Page 2: Table Of Contents
Table of Contents Introduction ............3 1.1 Product Introduction ........3 1.2 Features ............3 1.3 Requirements ........... 3 1.4 Package Contents ..........4 Getting Started ............ 4 2.1 Hardware Installation ........4 2.2 Driver Installation ..........5 2.2.1 Installation for Linux ........ 6 2.3 Verifying the installation ........ -
Page 3: Introduction
1. Introduction 1.1 Product Introduction This PCIe 10G SPF+ Network Card is a cost-effective solution that delivers fast and reliable 10 Gbps network access at longer distances than copper-based networks. Using the SPP+ transceiver of your choice, you can connect your PCI Express-based server or workstation directly to your 10G fiber optic network. -
Page 4: Package Contents
Software Operating systems supported (64 bits only) • Windows 7 • • Windows Server 2008 R2 • Windows Server 2012 • Windows 8.1 • Windows Server 2012 R2 • Windows 10 Linux 2. 6.x or later • 1.4 Package Contents 1 x PCIe 10G SFP+ Network Card •... -
Page 5: Driver Installation
2.2 Driver Installation Windows Operating Systems You must have administrative rights to the operating system to install the drivers. insert the CD driver bound with Intel network driver into your CD-ROM drive (also you can download the latest drivers from www.assmann.com if the Found New Hardware Wizard screen is displayed, click Cancel. -
Page 6: Installation For Linux
2.2.1 Installation for Linux Installing Linux Drivers from Source Code Download and expand the base driver tar file. Compile the driver module Install the module using the modprobe command Assign an IP address using the ifconfig command. 2.3 Verifying the installation 2.3.1 Verifying for Windows Click on the “Device Manager”... -
Page 7: Verifying For Linux
2.3.2 Verifying for Linux You can check whether the driver is loading by using following commands: # lsmod | grep ixgbe # ifconfig –a If there is a device name, ethX, shown on the monitor, the linux driver is load. Then, you can use the following command to activate the ethX. - Page 8 Computer failed to start after inserting the PCIe 10G SFP+ Network • Card Turn off the computer, remove the PCIe Dual Port Gigabit Server Adapter, and try to restart the computer. If the computer starts successfully, it means that the card has not been inserted into the PCI Express slot correctly.
