Motherboard User's Guide

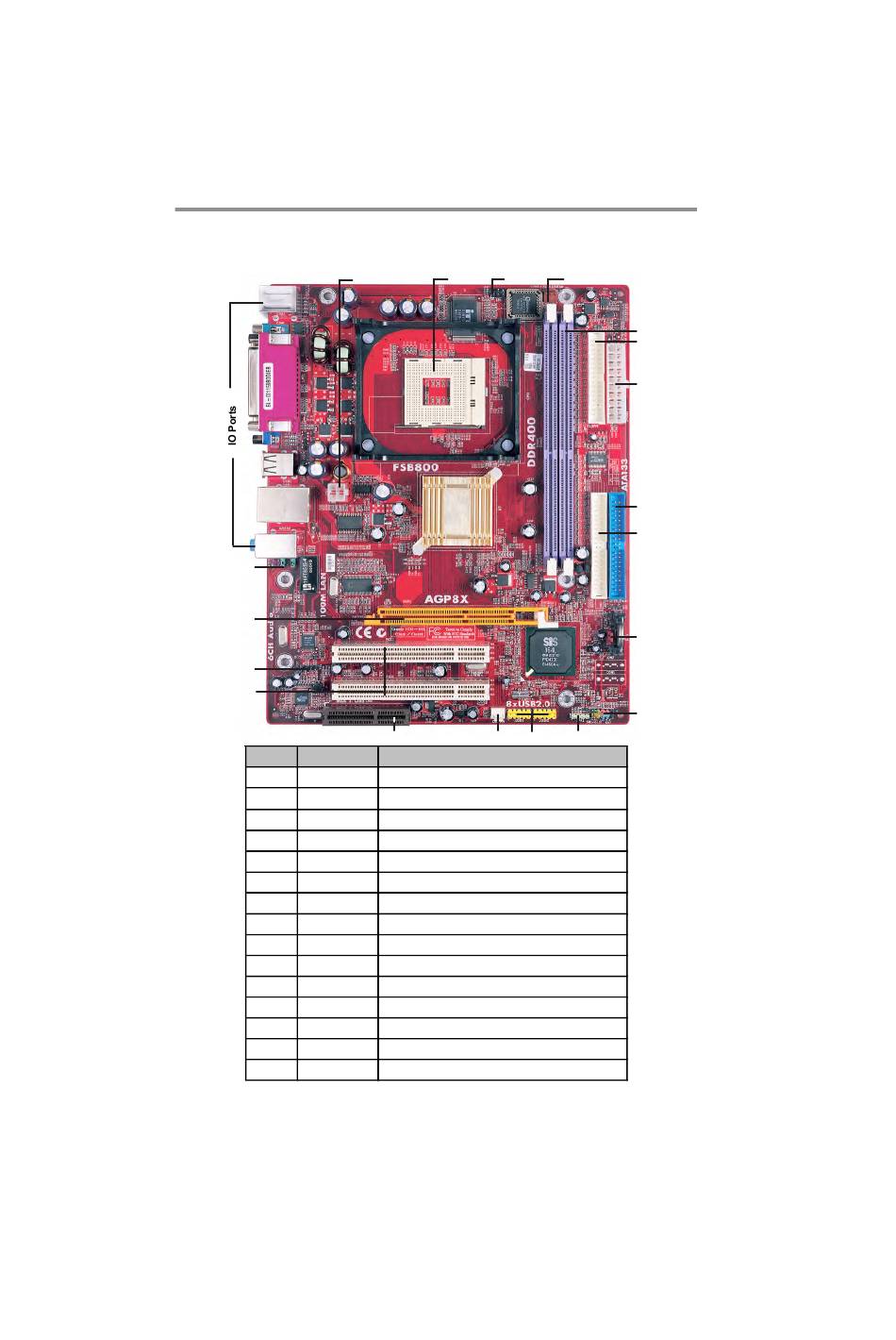

Motherboard Components

19
18
17
16
ITEM LABEL
1 ATX1
2 CPU Socket Socket-478 for Pentium 4 CPUs
3 IR1
4 CPUFAN
5 DDR1/2
6 FLOPPY
7 ATXPW1
8 IDE1
9 IDE2
10 JP3
11 SW1
12 SPK1
13 JUSB1/2
14 CHSFAN
15 CNR1
2 3
1
15 14
COMPONENTS
Standard 4-Pin ATX Pow er connector
Infrared header
CPU Fan connector(3PIN)
184-pin DDR SDRAM sockets
Floppy Disk Drive connector
Standard 20-Pin ATX Pow er connector
Primary IDE connector
Sceondary IDE connector
Clear CMOS jumper
Front Panel Sw itch/LED header
Speaker header
Front Panel USB headers
System Fan connector
CNR slot
6
4
5
6
7
8
9
10
11
13 12
