Manual

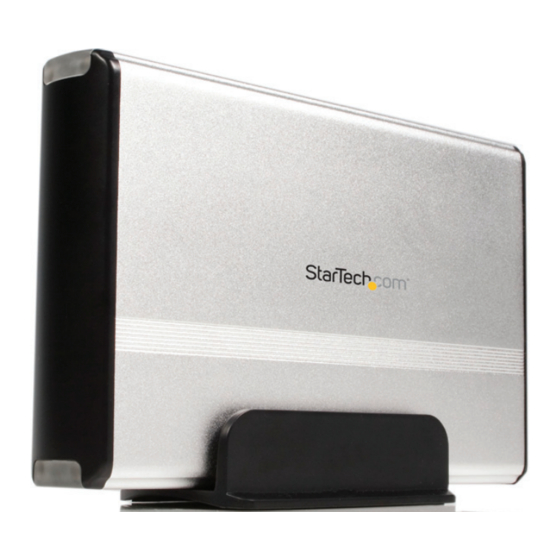

3.5in Silver USB 2.0 to SATA External Hard
Drive Enclosure
SAT3510U2V / SAT3510U2VGB / SAT3510U2VEU
SAT3510BU2V / SAT3510BUVGB / SAT3510BUVEU
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 12/15/2011
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com SAT3510U2V
Summary of Contents for StarTech.com SAT3510U2V
-
Page 1: Drive Enclosure
DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 12/15/2011... -
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Hardware Guide ..................2 Front Panel View ............................2 Rear Panel View ............................2 Installation ....................3 Hardware Installation ..........................3 Driver Installation ............................6 Specifications ..................7 Technical Support ..................8 Warranty Information ................8 Instruction Manual... -
Page 4: Introduction
Introduction Thank you for purchasing a StarTech.com SAT3510U2V / SAT3510BU2V InfoSafe 3.5” USB 2.0 SATA Aluminum Hard Drive Enclosure. This cost-effective storage solution suits a wide variety of applications including file and application sharing between desktop and notebook computers, data archiving, or simply backing up existing hard drives to preserve data security. -
Page 5: Hardware Guide
Hardware Guide Front Panel View Screw Kit Power/Activity LED Power Adapter Power/Activity LED USB A-B Cable Rear Panel View Power Adapter Port On/Off Switch Plastic Stand USB type B Port Instruction Manual... -
Page 6: Installation
Installation WARNING! Hard drives and storage enclosures require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution. Be sure that you are properly grounded by wearing an anti-static strap when handling computer components or discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. - Page 7 3. With the hard drive connected to the front panel, turn the drive over to expose it’s base. Fasten the hard drive to the front panel rails on both sides, using the screws provided (2): 4. Fasten the front panel (with drive attached) to the body of the Enclosure; be cautious that the drive and front panel are properly aligned with the body of the Enclosure, to prevent damage to the LEDs.
- Page 8 5. Fasten both sides of the case to lock the hard drive in place: 6. Fasten the rear panel to the Drive Enclosure on both sides using the screws (2) provided. Instruction Manual...
-
Page 9: Driver Installation
7. Once the drive has been secured within the Enclosure, connect the DC 12V power adapter to the power adapter port. Connect the remaining end of the power adapter to an available power outlet. 8. Connect the USB A-B cable to the USB B port on the rear panel of the Enclosure, then connect the remaining end of the cable to the host computer. -
Page 10: Specifications
Specifications Bus Type USB 2.0 Chipset SunPlus SPIF301 Maximum Date Transfer Rate 480 Mbps Solid Green -Power status LED Indicators Blinking Green - Read/Write Drive Activity Enclosure Casing Material Aluminum Power Adapter 12V DC, 2000mA 193 mm x 113 mm x 31 mm Dimensions (L x W x H) (7.6”... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
