Black Box LBNC01A-KIT User Manual

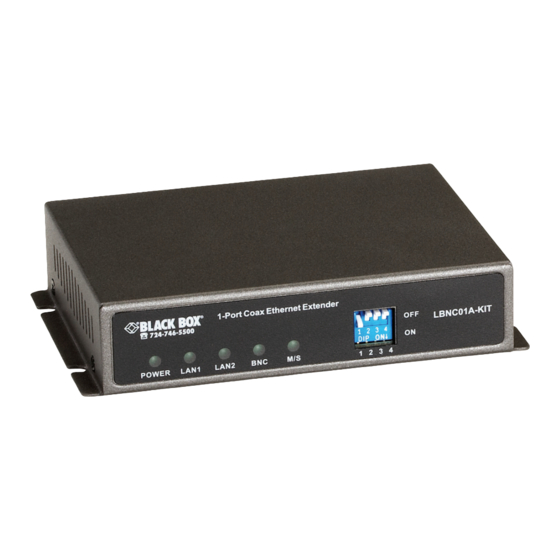

1-port coax ethernet extender kit
Hide thumbs

Advertisement

Quick Links

1-Port Coax Ethernet Extender Kit
Extend Ethernet with 100-/60-Mbps
downstream/upstream connections
over coaxial cable.
Bridges 10BASE-T/100BASE-TX Ethernet interface.
Supports connections up to 4000 feet (1219 m).
Select from Fast and Interleaved modes.
Provides low latency for video/voice/data applications.
Auto MDI-X for 10BASE-T/100BASE-TX Ethernet LAN.
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) •
Customer
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 •
Support
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 •
Information
Web site: www.blackbox.com • E-mail: info@blackbox.com

BLACK BOX

LBNC01A-KIT
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the LBNC01A-KIT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Box LBNC01A-KIT

Summary of Contents for Black Box LBNC01A-KIT

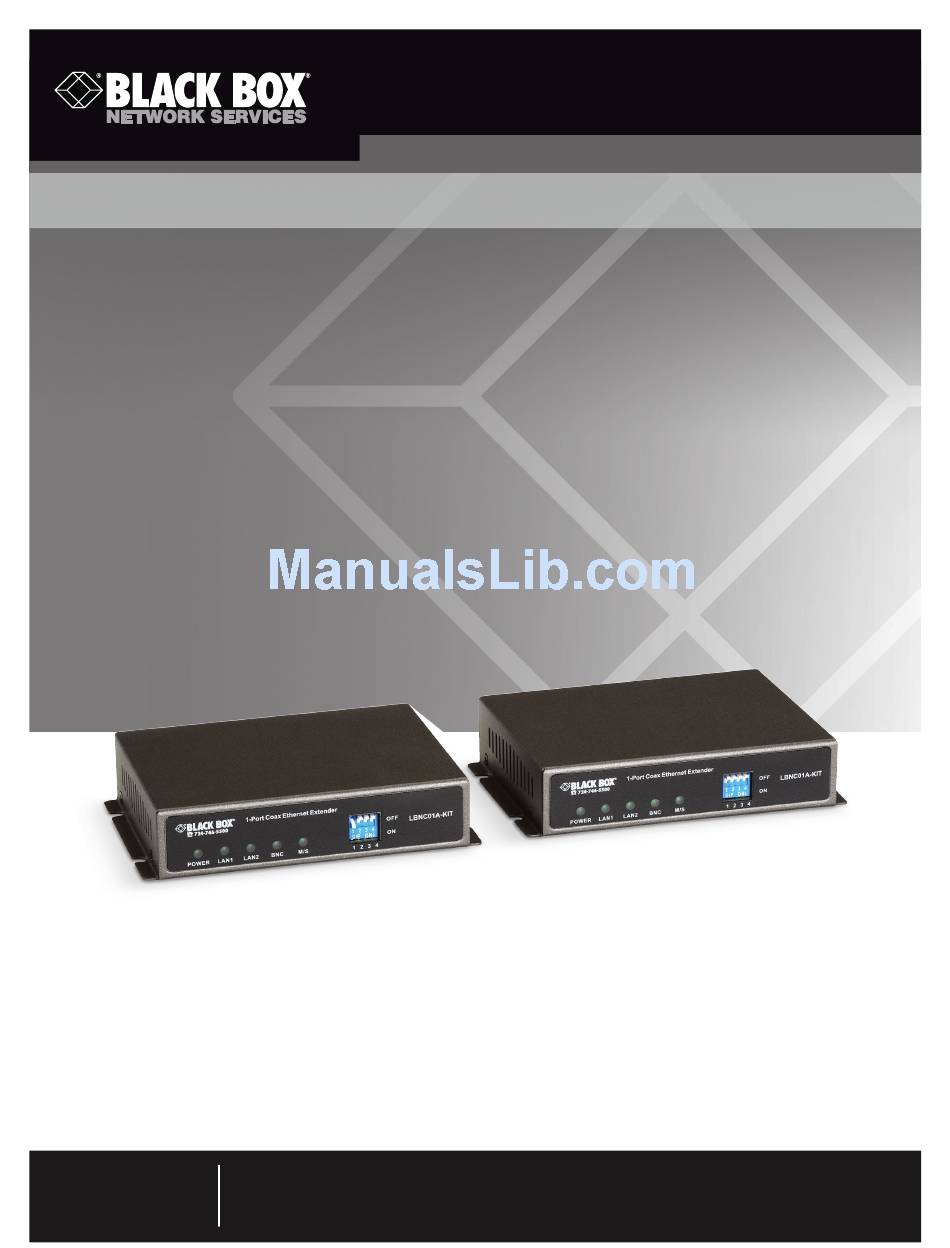

  • Page 1: Black Box

    Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) • Customer FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 • Support Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 • Information Web site: www.blackbox.com • E-mail: info@blackbox.com...
  • Page 2 1-Port Coax Ethernet Extender Kit Trademarks Used in this Manual Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.
  • Page 3 FCC and IC RFI Statements Federal Communications Commission and Industry Canada Radio Frequency Interference Statements This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial environment.
  • Page 4 1-Port Coax Ethernet Extender Kit Normas Oficiales Mexicanas (NOM) Electrical Safety Statement INSTRUCCIONES DE SEGURIDAD 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura. 3.
  • Page 5 European Community (CE) Electromagnetic Compatibility Directive European Community (CE) Electromagnetic Compatibility Directive This equipment has been tested and found to comply with the protection requirements of European Emission Standard EN55022/ EN61000-3 and the Generic European Immunity Standard EN55024. EMC: EN55022(2003)/CISPR-2(2002): Class A IEC61000-4-2 (2001): 4 KV CD, 8 KV AD IEC61000-4-3( 2002): 3 V/m IEC61000-4-4(2001): 1 KV (power line), 0.5 KV (signal line)

  • Page 6: Table Of Contents

    1-Port Coax Ethernet Extender Kit 1. Specifications ......................................7 2. Overview ......................................... 8 2.1 Introduction ...................................... 8 2.2 Features ......................................8 2.3 Application ....................................... 8 2.4 What’s Included ....................................9 2.5 LED Description ....................................9 2.6 Front and Back Panels ..................................9 3.

  • Page 7: Specifications

    Chapter 1: Specifications 1. Specifications Data Rate (Maximum): 100/60 Mbps Transmission Distance (Maximum): 4000 feet (1219 m) Flow Control: Half-/full-duplex MDI-X: Automatic Standards: ITU-T G.993.1/2, SG15Q4 DMT compliant, trellis code with 1024 DMT bins, EMI emissions compliant, FCC Class A, CE, IEEE 802.3/IEEE 802.3u Ethernet, 10BASE-T/100BASE-TX Connectors: (2) RJ-45, (1) BNC Indicators: (5) LEDs: Power, LAN1, LAN2, BNC, M/S...

  • Page 8: Overview

    With plug-and-play features and minimum installation time, you can configure the LBNC01A-KIT as either master for the central side or slave for the remote side via DIP switches. The LBNC01A-KIT conforms to the ITU-T G.993.1 and G.993.2 to meet VDSL/VDSL2 and SG15Q4 DMT for network requirements.

  • Page 9: What's Included

    Chapter 2: Overview 2.4 What’s Included Your package should include the following items. If anything is missing or damaged, please contact Black Box Technical Support at 724-746-5500. • (2) 1-Port Coax Ethernet Extenders • (2) 5-VDC, 1-A power adapters • This user’s manual on CD-ROM 2.5 LED Description...

  • Page 10: Installation

    1-Port Coax Ethernet Extender Kit 3. Installation Because the LBNC01A-KIT is preconfigured for basic applications, you can install it quickly. Follow these steps: 1. Connect the line interface between the units via BNC coaxial cable. 2. Connect the Ethernet interface.

  • Page 11: Dip Switches

    Chapter 4: DIP Switches 4. DIP Switches Table 4-1 describes the DIP switches used to configure the extender. Table 4-1. DIP switches and their functions. DIP Switches SW-1 SW-2 SW-3 SW-4 Definition CO/Remote Impulse Noise Data Rate Protection Mode Interleaved 50/20 Mbps 9 dB Remote...
  • Page 12 About Black Box Black Box Network Services is your source for an extensive range of networking and infrastructure products. You’ll find everything from cabinets and racks and power and surge protection products to media converters and Ethernet switches all supported by free, live 24/7 Tech support available in 30 seconds or less.
