Black Box LBPS01A-KIT Manual

Hide thumbs

Advertisement

Quick Links

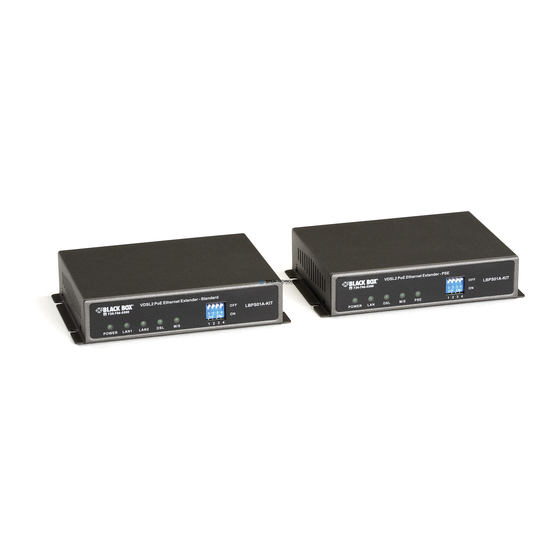

VDSL2 PoE Ethernet Extender Kit, PSE
Extends Ethernet with 100-/60-Mbps
downstream/upstream connections
over ordinary voice-grade copper.
Kit includes two extenders—one works as PoE power source
equipment and the other is a standard extender.
Bridges 10BASE-T/100BASE-TX Ethernet interface.
Supports connections up to 4000 feet (1219.2 m).
Select from Fast and Interleaved modes.
Provides low latency for video/voice/data applications.
IEEE 802.3af PoE compliant.
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) •
Customer
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 •
Support
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 •
Information
Web site: www.blackbox.com • E-mail: info@blackbox.com
LBPS01A-KIT

Advertisement

loading
Need help?

Need help?

Do you have a question about the LBPS01A-KIT and is the answer not in the manual?

Questions and answers

Related Manuals for Black Box LBPS01A-KIT

Summary of Contents for Black Box LBPS01A-KIT

  • Page 1 Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) • Customer FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 • Support Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 • Information Web site: www.blackbox.com • E-mail: info@blackbox.com...
  • Page 2 VDSL2 PoE Ethernet Extender Kit, PSE Trademarks Used in this Manual Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.
  • Page 3 FCC and IC RFI Statements Federal Communications Commission and Industry Canada Radio Frequency Interference Statements This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart J of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial environment.
  • Page 4 VDSL2 PoE Ethernet Extender Kit, PSE Normas Oficiales Mexicanas (NOM) Electrical Safety Statement INSTRUCCIONES DE SEGURIDAD 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura. 3.
  • Page 5 CE Statement European Community (CE) Electromagnetic Compatibility Directive This equipment has been tested and found to comply with the protection requirements of European Emission Standard EN55022/EN61000-3 and the Generic European Immunity Standard EN55024. EMC: EN55022(2003)/CISPR-2( 2002): Class A IEC61000-4-2 (2001): 4 KV CD, 8 KV AD IEC61000-4-3( 2002): 3 V/m IEC61000-4-4(2001): 1 KV (power line), 0.5 KV (signal line) Page 5...

  • Page 6: Table Of Contents

    VDSL2 PoE Ethernet Extender Kit, PSE 1.Specifications ......................................7 2. Overview ........................................ 8 2.1 Introduction ...................................... 8 2.2 Features ......................................8 2.3 Application ....................................... 8 2.4 What’s Included ....................................9 2.5 LED Descriptions ....................................9 2.6 Front and Back Panels ..................................10 3.

  • Page 7: Specifications

    Chapter 1: Specifications 1. Specifications Data Rate (Maximum): 100/60 Mbps Transmission Distance (Maximum): 4000 ft. (1219 m) Flow Control: Half-/full-duplex, autodetects for 10BASE-T/100BASE-TX MDI-X: Automatic Standards: ITU-T G.993.1/2, SG15Q4 DMT compliant, trellis code with 1024 DMT bins, EMI emissions compliant, FCC Class A, CE, IEEE 802.3/IEEE 802.3u Ethernet, 10BASE-T/100BASE-TX, IEEE 802.3af PoE PoE Power Reception Supports: Endpoint: via twisted-pair Pins 1, 2, 3, 6 and 320 mA @ 48V DC Connectors: PSE: (1) RJ-11, (1) RJ-45;...

  • Page 8: Overview

    At 100-/60-Mbps downstream/upstream, LBPS01A-KIT supports transmission distances up to 500 feet (152.4 m), and at 28-/ 0.3-Mbps it supports up to 4000 feet (1219 m). Using power sourcing equipment (PSE), the LBPS01A-KIT provides power over the Ethernet cable to the 802.3af-compliant powered device.

  • Page 9: What's Included

    Chapter 2: Overview 2.4 What’s Included Your package should include the following items. If anything is missing or damaged, please contact Black Box Technical Support at 724-746-5500. • (1) VDSL2 PoE Ethernet Extender (PSE) • (1) VDSL2 PoE Ethernet Extender (Standard) •...

  • Page 10: Front And Back Panels

    VDSL2 PoE Ethernet Extender Kit, PSE 2.6 Front and Back Panels Figures 2-2 through 2-4 show the front and back panels of the extenders and describe their components. DIP Switches LED Indicators Figure 2-2. Front panel, VDSL2 PoE Ethernet Extender (PSE), PSE unit. Power Input RJ-11 Connector RJ-45 Connector...

  • Page 11: Installation

    Chapter 3: Installation 3. Installation Because the VDSL2 PoE Ethernet Extenders are preconfigured for standard applications, they can be installed quickly. Follow these steps: 1. Connect the line interface between the units via RJ-11 cable. 2. Connect the Ethernet interface using RJ-45 cable. 3.

  • Page 12: Dip Switches

    VDSL2 PoE Ethernet Extender Kit, PSE 4. DIP Switches Table 4-1. DIP switches and their functions. DIP Switches SW-1 SW-2 SW-3 SW-4 Definition Master/Slave Impulse Noise Data Rate Protection Mode Master Interleaved 50/20 Mbps 9 dB Slave Fast Full Rate 6 dB Standard extender PSE extender...
  • Page 13 About Black Box Black Box Network Services is your source for an extensive range of networking and infrastructure products. You’ll find everything from cabinets and racks and power and surge protection products to media converters and Ethernet switches all supported by free, live 24/7 Tech support available in 60 seconds or less.
