CHAPTER 1 Product Overview
1.3 PRIMEQUEST 2000 series configuration

1.3.1 Hardware configuration

Features of PRIMEQUEST 2400E
The features of the PRIMEQUEST 2400E are listed below.
- Up to two CPUs can be mounted to each SB
- Up to two SBs can be mounted
- Up to 4 HDDs can be mounted to each SB
- Up to four sockets SMP
- Up to two physical partitions (PPAR)
- Main hardware configuration
- Number of connected IOUs: 4
- Number of connected DUs: 2
- Number of PCI_Boxes: 4

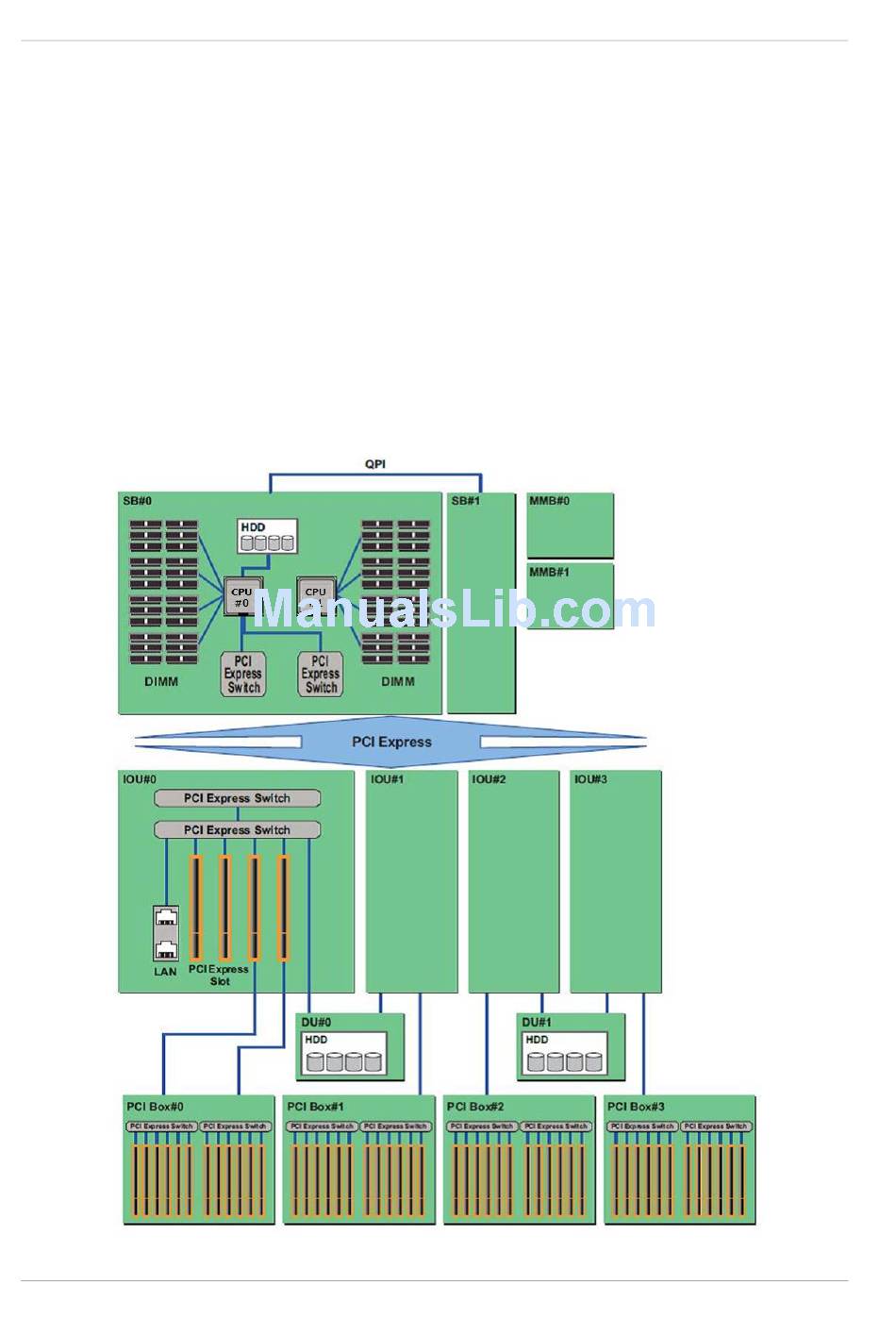

FIGURE 1.4 Hardware configuration image (PRIMEQUEST 2400E)

5 C122-B025-02EN
