CHAPTER 5 Partitioning

5.4 Reserved SB

TABLE 5.6 Minimum and maximum configuration of Extended Partitioning

Component
CPU
DIMM
PCI Express slot
Onboard VGA
Onboard USB
5.4 Reserved SB
For the details on the Reserved SB operating rules in the partitioning, see '3.2.3 Reserved SB' of the
"PRIMEQUEST 2000 Series Administration Manual" (C122-E175EN).
5.5

Partition configuration definition method

The partition configuration is defined using MMB Web-UI.
To do so, a partition is first created. Next, SB, IOU and Home SB, having specific partition identifiers, and
belonging to the partition are registered in the MMB Web-UI [Partition] → [Partition Configuration] window.
Then, the Memory Operation Mode and Reserved SB are set as needed.
For details on the setup procedure, see the "PRIMEQUEST 2000 Series Tool Reference" (C122-E177EN).
Remarks
The changes in the partition configuration are applied in the each partition unit when power cycled. The
changes are not applied when rebooting the partition. Be sure to stop the partition once and then operate.
5.6

Notes on the partition configuration

This section provides notes on the partition configuration. SB that operates a partition must use the CPUs
and memory. A partition configured with more than one SB (two or more SBS) must use the NTP.
For the details on the partition configuration, see '3.1 Partition configuration' of the "PRIMEQUEST 2000
Series Administration Manual" (C122-E175EN)
For details of the clock feature, see
Minimum configuration
One core
One GB
None
No use
None

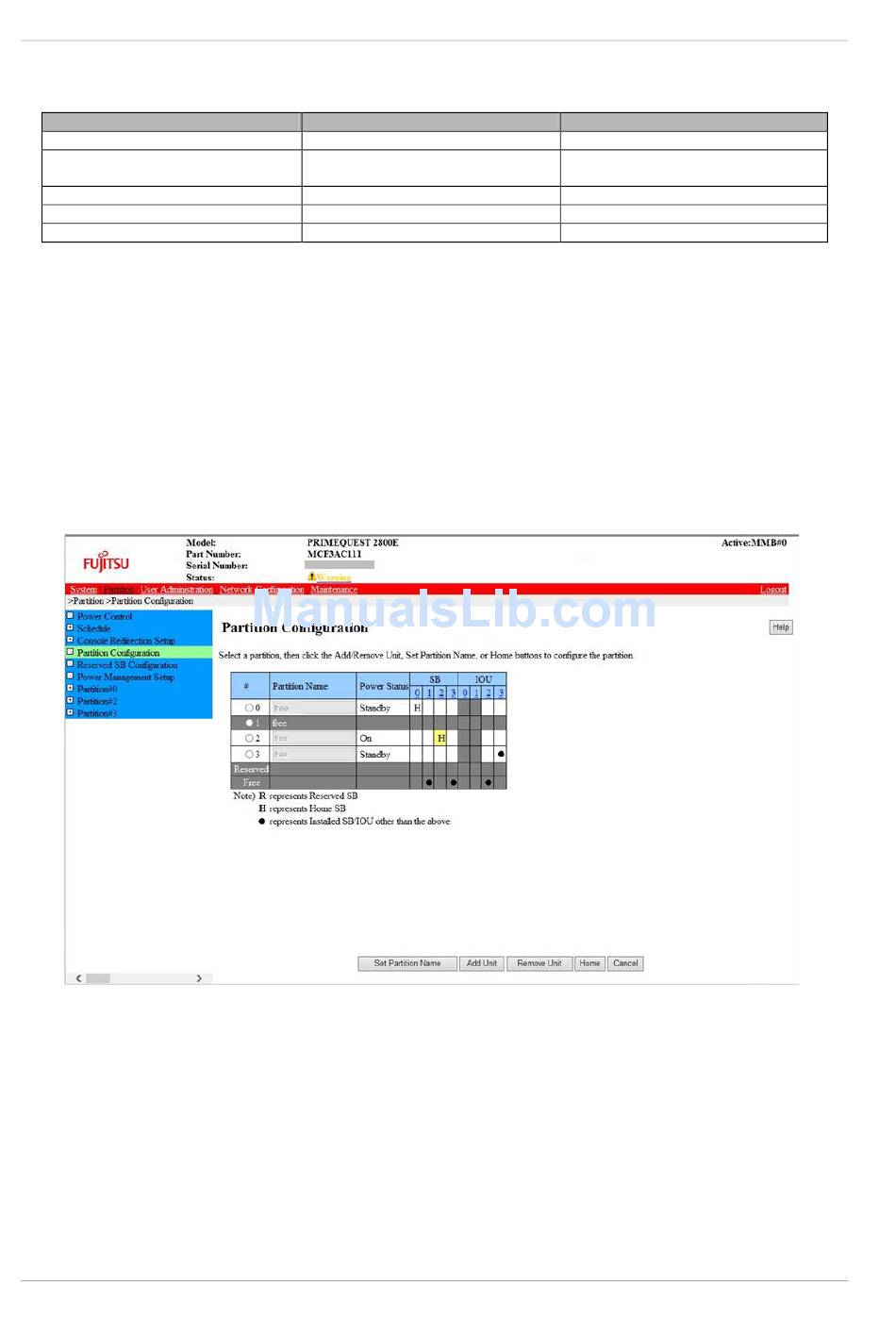

FIGURE 5.3 [Partition Configuration] screen

'4.6 Clock feature'.
79
Maximum configuration
All cores of all mounted CPUs
Minus 2 GB for all mounted memory
capacities
All PCI Express slots
Use
Four ports
C122-B025-02EN
