CHAPTER 2 Hardware Configuration

2.12 PCI Express slot

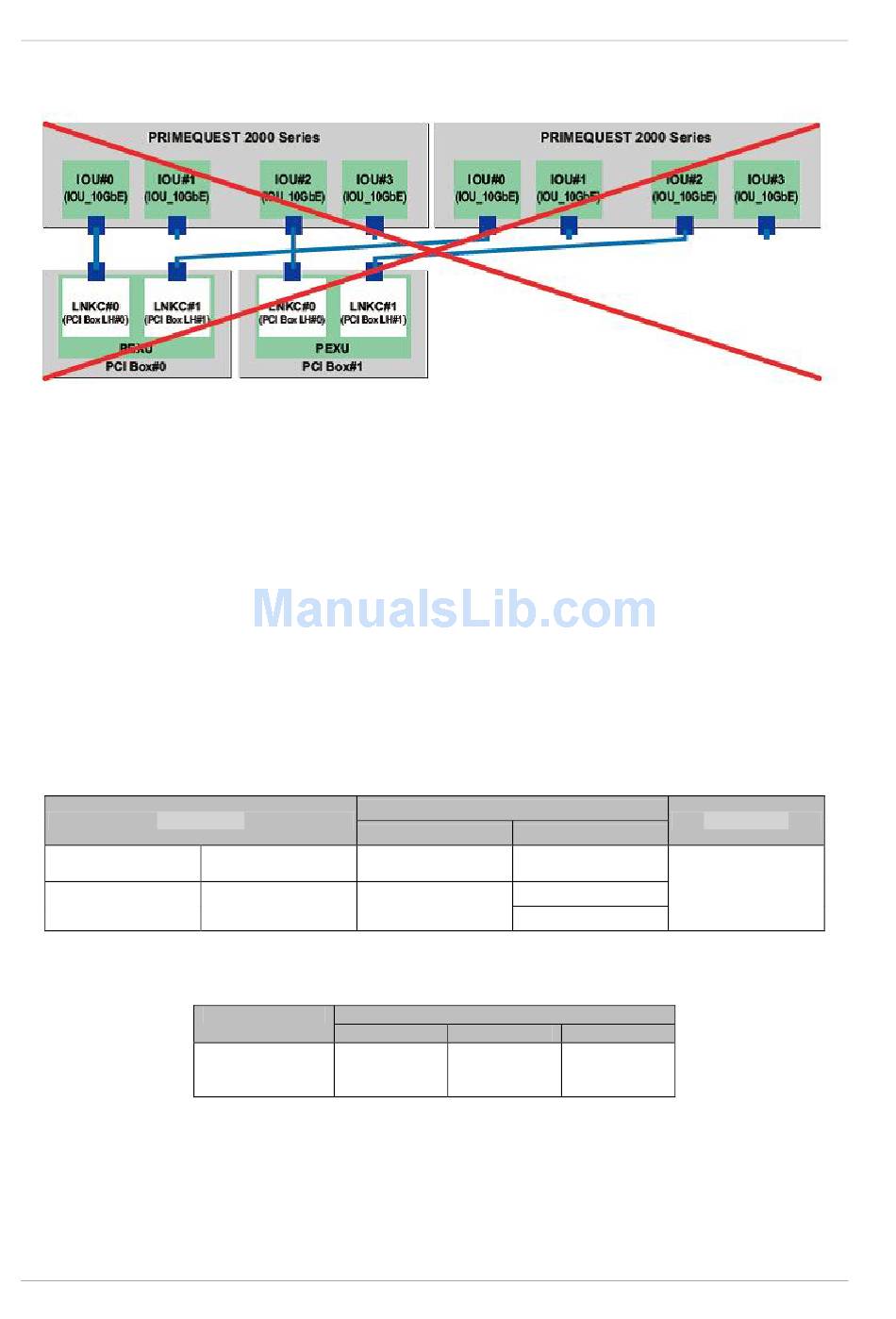

FIGURE 2.30 PCI_Box shared by different PRIMEQUEST cabinet (not permitted)

2.11.8 PCI_Box number

PCI_Box number can be set from 0 to 3 by using the switch provided in the PCI_Box.
2.12 PCI Express slot
The IOU is provided as the PCI Express slot in the PRIMEQUEST 2000 series. It is a shared component of
the PRIMEQUEST 2000 series. The following IOUs depend on the available PCI Express card and the
bandwidth type.
-
IOU_1GbE
-
IOU_10GbE

2.12.1 PCI Express slot (IOU) specifications

The specifications of the PCI Express slot (IOU) are listed in the following table.
Specification
IOU_1GbE
IOU_10GbE
The number of PCI Express slots is shown below.

2.12.2 PCI Express slot (PCI_Box) specifications

Extended I/O cabinet (cabinet (PCI_Box) is supported in the PRIMEQUEST 2000 series.
All slots are PCI Express Gen3 8lane (8Gbps) slots. There are 12 PCI Express slots for each PCI_Box.
All slots support PHP (PCI Hot Plug).

TABLE 2.16 PCI Express slot (IOU) specifications

PCI Express Gen3 Short
(8Gbps) 8 lane
PCI Express Gen3 Short
(8Gbps) 16 lane

TABLE 2.17 Maximum number of PCI Express slots

2400E
Number of 56 (*1)
PCI Express slots
(Short)
*1: Except PCI Express slots where the PCNC is mounted
overview
Length Height
Low Profile
Low Profile
Full Height
PRIMEQUEST
2800E
56 (*1) 16
55
PCI hot plug
Not supported
2800B
