Power Terminal Block
I/O Ports
LED Display Panel
Ethernet Port
Ethernet Ports
Ethernet Ports

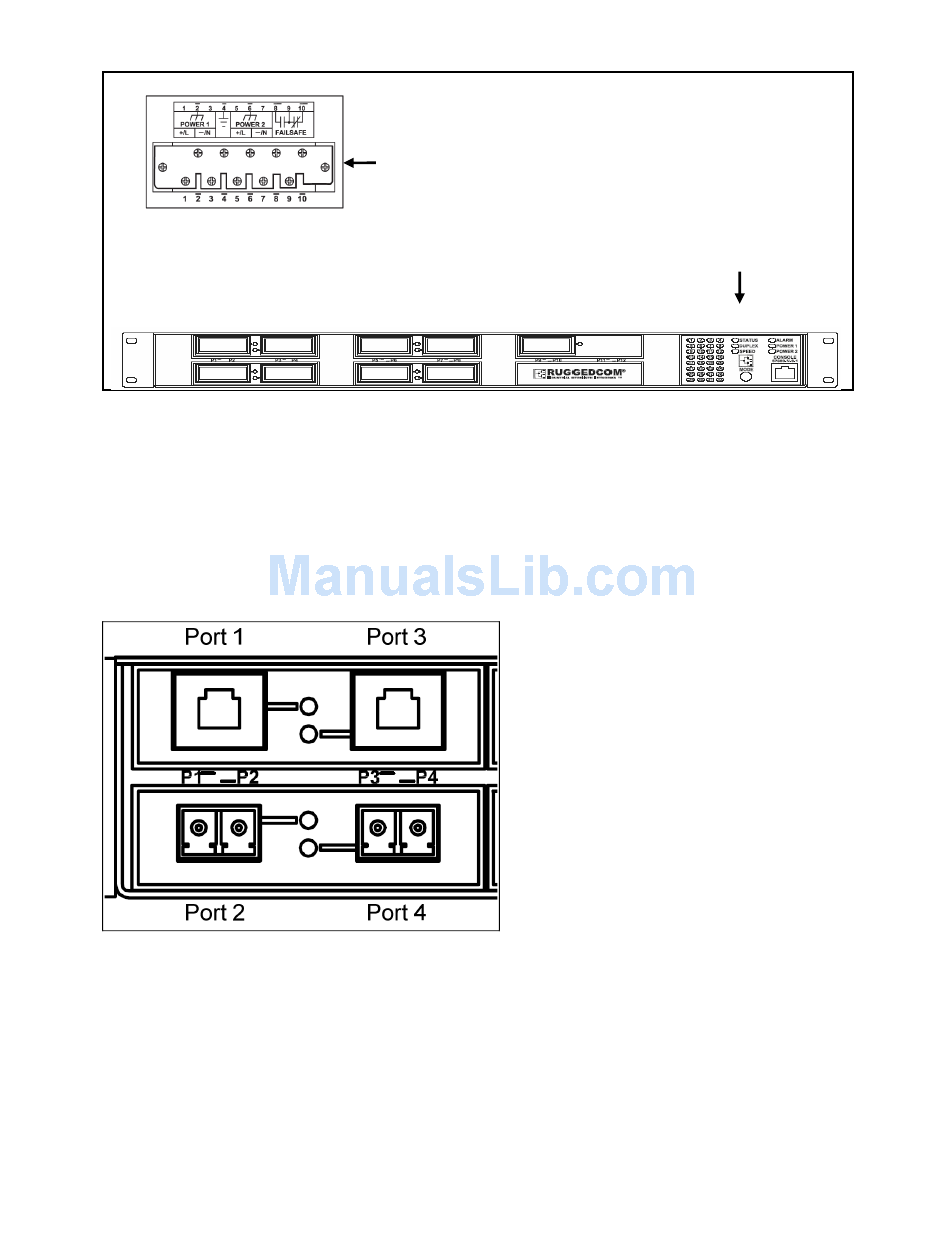

Figure 2: Ethernet, LED Status, and Power Panels

3.4 Ethernet Panel Description

Each Ethernet module is equipped with two LEDs that indicate link/activity status information. The
LED will be solid for ports with link, and will blink for activity. The diagram in Figure 3 highlights the
port and the associated link/activity LED.

Figure 3: Ethernet panel LED description

9
©
2008 RuggedCom Inc. All rights reserved
Rev105
