3.4.1 Fiber Optical Transceiver Orientation and Connection

Depending on the order code of the product, the RSG2000 series products can be equipped with

several different types of fiber optic ports. The Transmit (TX) and Receive (RX) connections of

each port must be properly connected and matched for proper link and operation. Modules

populated on the top row of the device typically have locking mechanisms or tabs towards the top

of the unit. Modules located on the bottom row of the device have locking mechanisms or tabs

towards the bottom of the device.

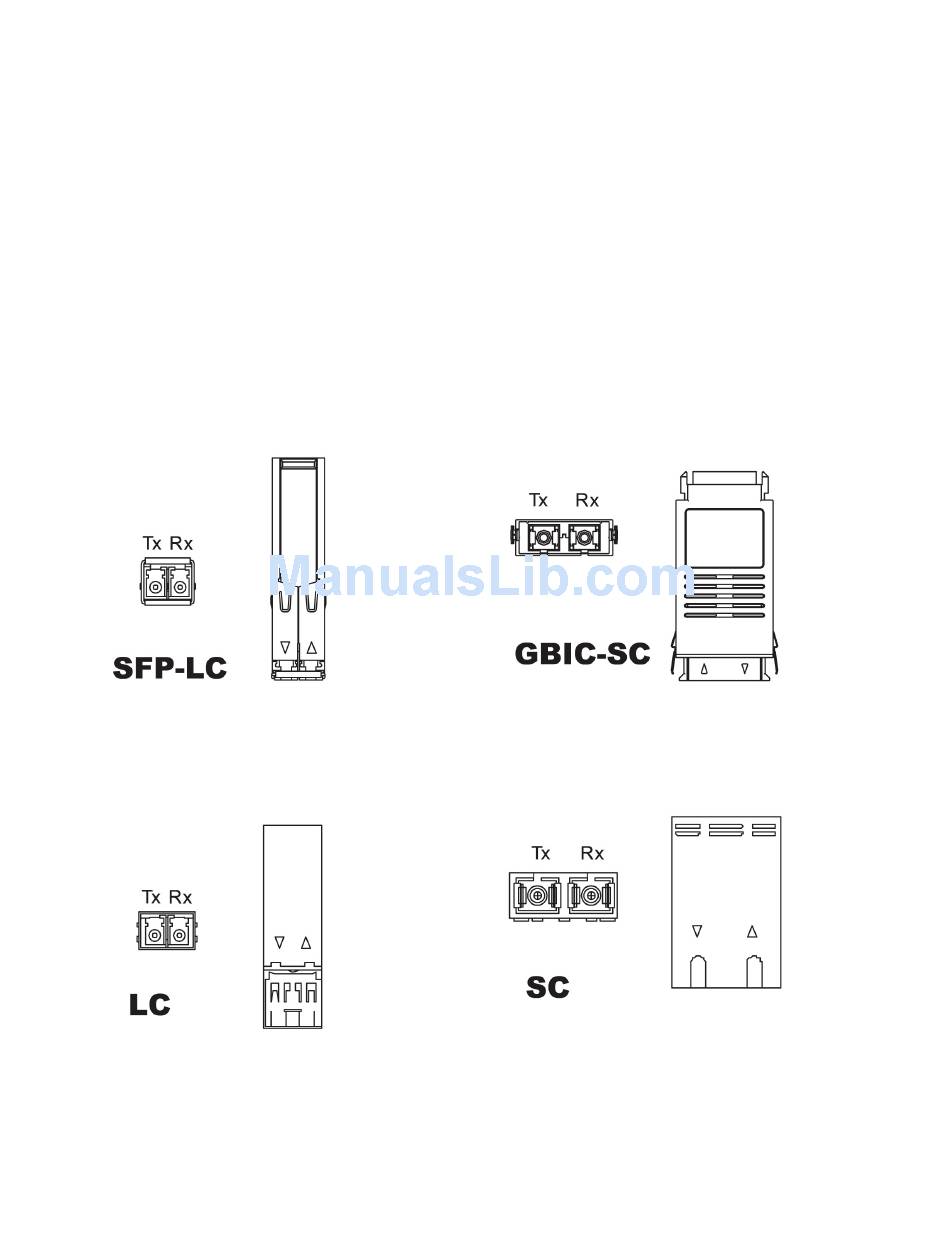

The drawings in the following figures show each fiber optical connector style with a side and top

view to allow the user to identify the proper cable connection orientation. If modules are populated

on the bottom row of the device, the transceiver orientation will be reversed (ie RX and TX will be

reversed).

Figure 4: 1000LX SFP (mini-GBIC) Module and

LC connector

Rev105
