Features; Figure 1-1. Omnibook - Front View - HP DesignJet 500 Service Manual

Features

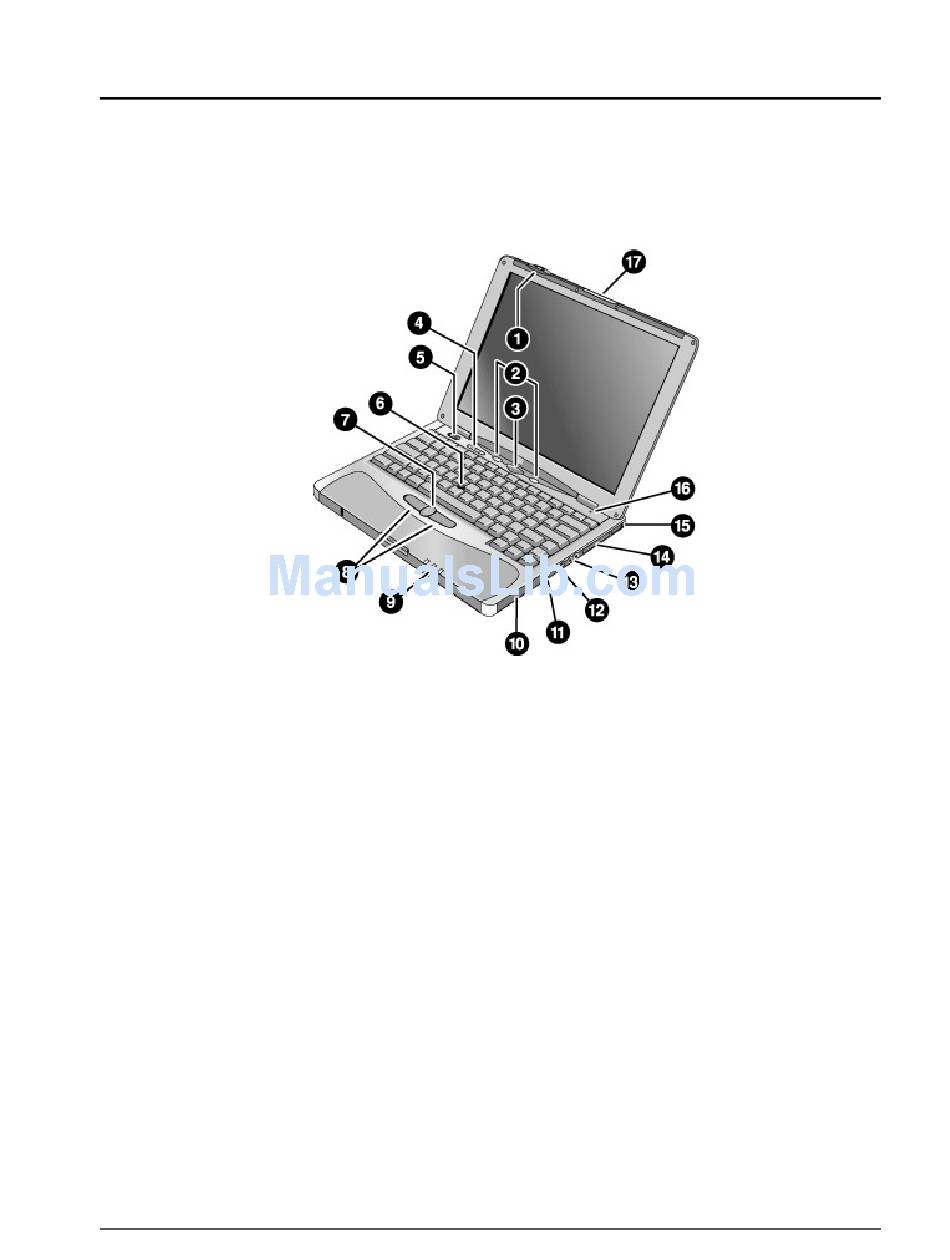

The following three illustrations show the computer's main external features. For an exploded view of
the computer, see page 4-2.
1. Wireless on-off button and indicator light
(on certain models).
2. Left and right One-Touch buttons (programmable).
3. Sleep button. Suspends and resumes operation.
4. Keyboard status lights: Caps Lock, Num Lock,
Keypad Lock, Scroll Lock.
5. Power slide button. Turns the computer on and
off.
6. Pointing stick (pointing device).
7. Scroll button.
8. Left and right click buttons.
HP Omnibook 500
Figure 1-1. Omnibook — Front View
9. Main status lights: power mode, hard disk activity,
main battery charge.
10. Hard disk drive.
11. Audio-off button and audio-off light.
12. Volume control.
13. Audio jacks: audio out (headphones), external
microphone.
14. PC Card slot.
15. PC Card eject button.
16. Built-in microphone.
17. Latch for opening the computer.
