Ap Discovery - Draytek VigorAP 800 User Manual

Policy
MAC Address Filter
Client's MAC Address
Add
Delete
Edit
Cancel
OK
Cancel
3 . 9 . 4 A P D i s c
3 . 9 . 4 A P D i s c
VigorAP 800 can scan all regulatory channels and find working APs in the neighborhood.
Based on the scanning result, users will know which channel is clean for usage. Also, it can
be used to facilitate finding an AP for a WDS link. Notice that during the scanning process
(about 5 seconds), no client is allowed to connect to Vigor.
This page is used to scan the existence of the APs on the wireless LAN. Yet, only the AP
which is in the same channel of VigorAP 800 can be found. Please click Scan to discover all
the connected APs.
VigorAP 800 User's Guide

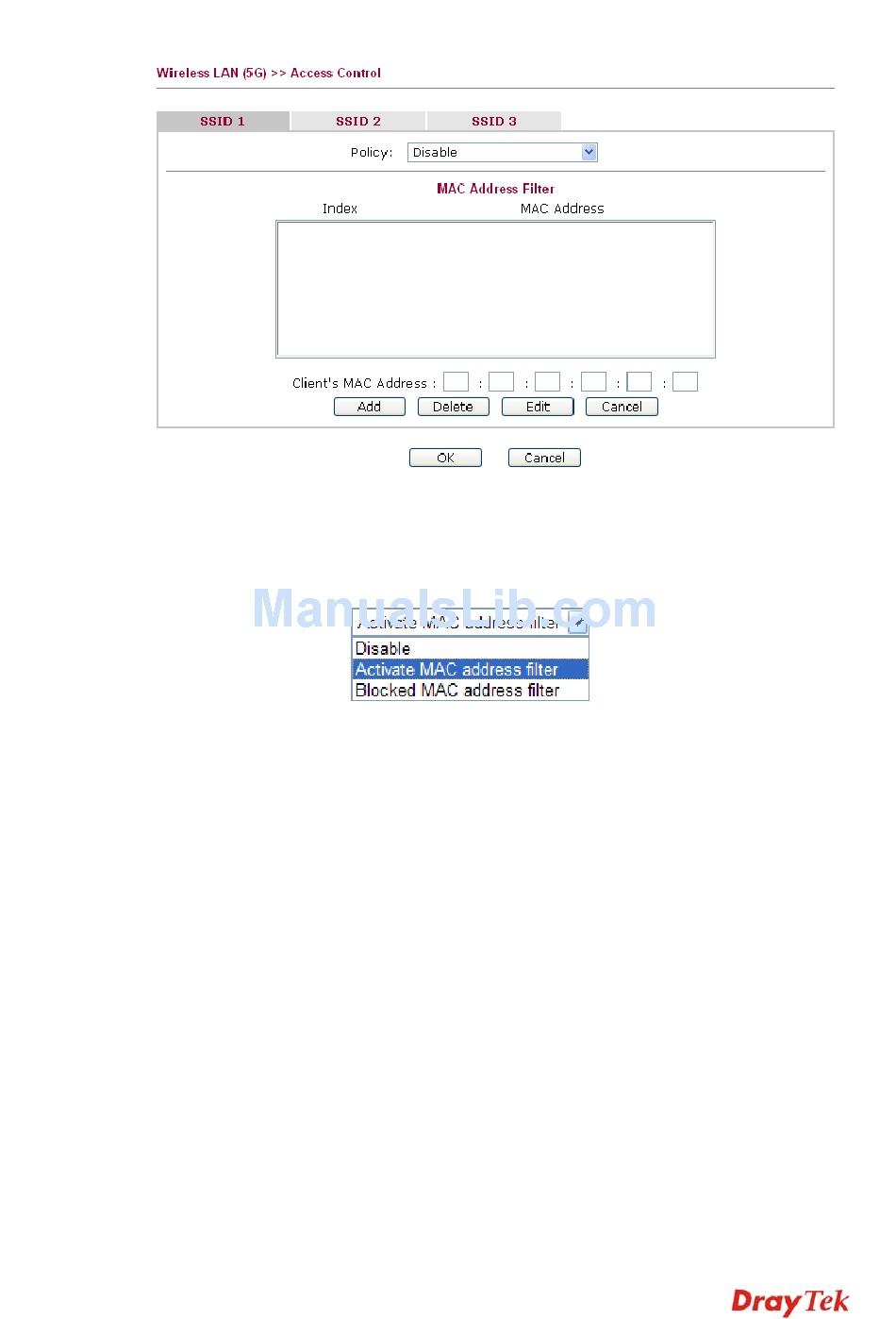

Select to enable any one of the following policy or disable the
policy. Choose Activate MAC address filter to type in the
MAC addresses for other clients in the network manually.
Choose Blocked WLAN from LAN will separate all the
WLAN stations from LAN based on the MAC Address list.
Display all MAC addresses that are edited before.
Manually enter the MAC address of wireless client.
Add a new MAC address into the list.
Delete the selected MAC address in the list.
Edit the selected MAC address in the list.
Give up the access control set up.
Click it to save the access control list.
Clean all entries in the MAC address list.
o v e r y
o v e r y
84
