Draytek VigorAP 800 User Manual page 60

Security
Peer Mac Address
Packet-OVERDRIVE
WMM Capable
Antenna
Tx Power
VigorAP 800 User's Guide
should be setup to the same Phy mode for connecting with each
other.
Select WEP, TKIP or AES as the encryption algorithm. Type the
key number if required.
Type the peer MAC address for the access point that VigorAP
800 connects to.
This feature can enhance the performance in data transmission
about 40%* more (by checking Tx Burst). It is active only when
both sides of Access Point and Station (in wireless client) invoke
this function at the same time. That is, the wireless client must
support this feature and invoke the function, too.

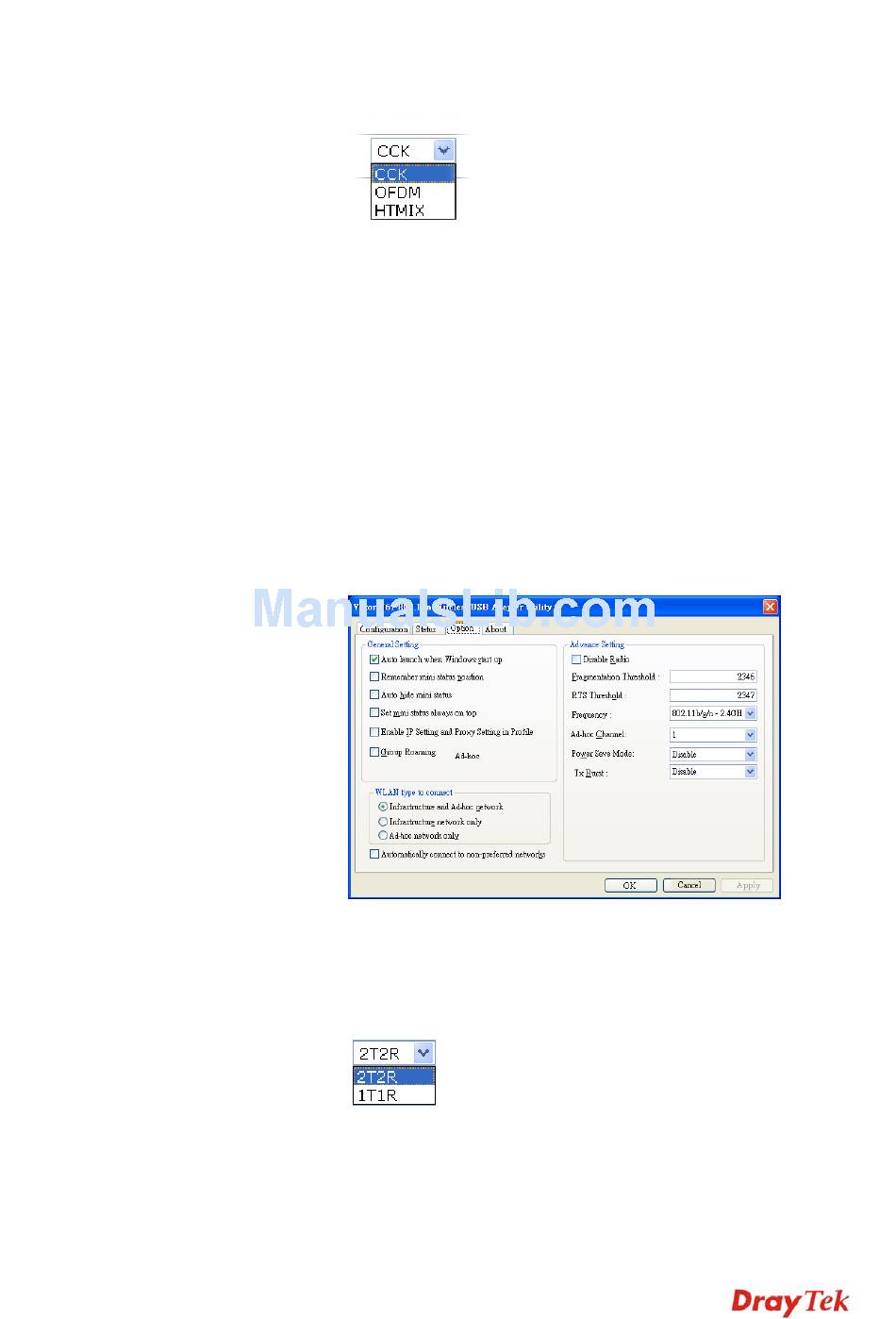

Note: Vigor N61 wireless adapter supports this function.
Therefore, you can use and install it into your PC for matching
with Packet-OVERDRIVE (refer to the following picture of
Vigor N61 wireless utility window, choose Enable for
TxBURST on the tab of Option).
To apply WMM parameters for wireless data transmission,
please click the Enable radio button.
VigorAP 800 can be attached with two antennas to have good
data transmission via wireless connection. However, if you have
only one antenna attached, please choose 1T1R.
The default setting is the maximum (100%). Lower down the
value may degrade range and throughput of wireless.
50
