WPA Algorithms
Pass Phrase
Key Renewal Interval
VigorAP 800 User's Guide

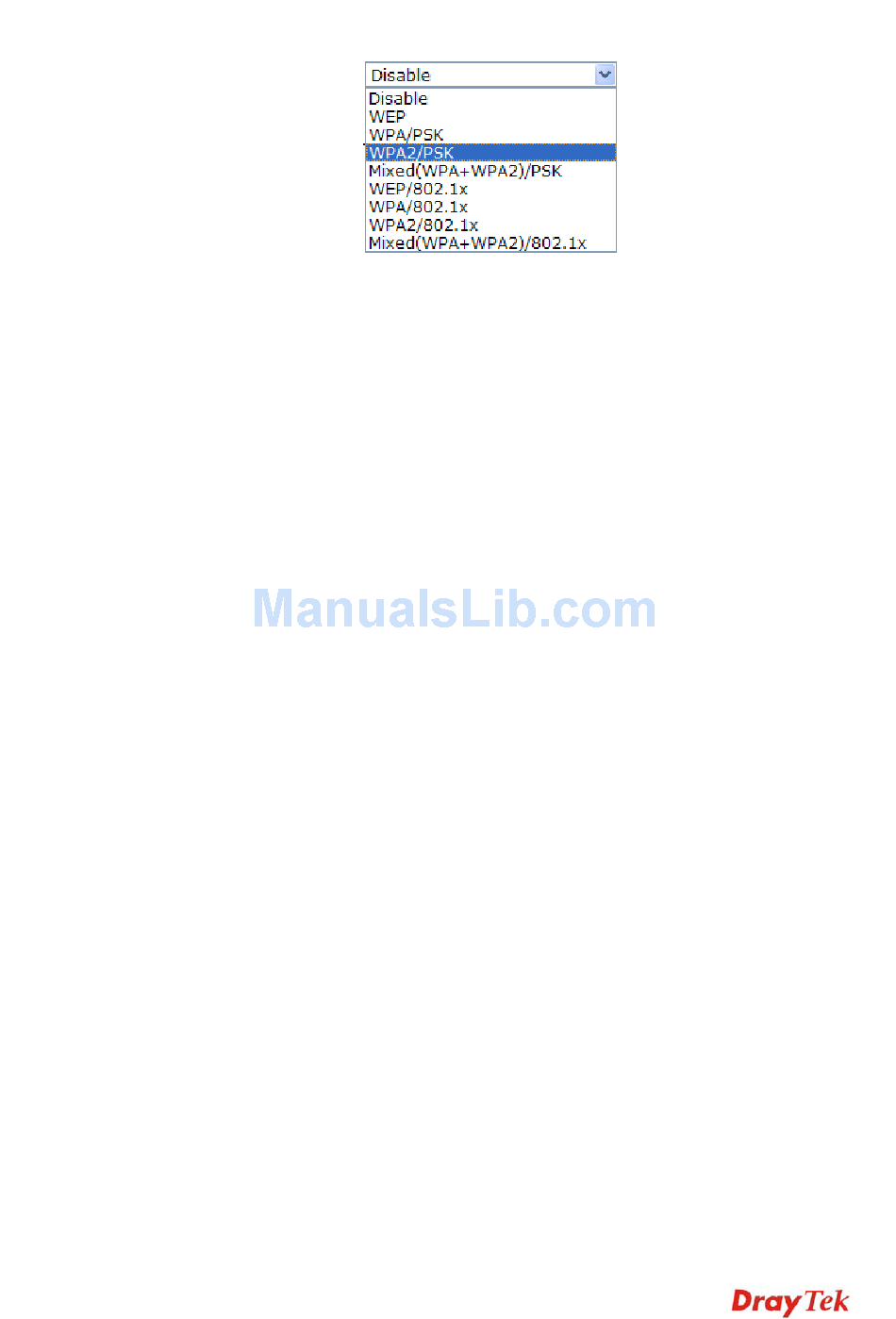

Disable - The encryption mechanism is turned off.
WEP - Accepts only WEP clients and the encryption key should
be entered in WEP Key.
WPA/PSK or WPA2/PSK or Mixed (WPA+WPA2)/PSK -
Accepts only WPA clients and the encryption key should be
entered in PSK. The WPA encrypts each frame transmitted from
the radio using the key, which either PSK (Pre-Shared Key)
entered manually in this field below or automatically negotiated
via 802.1x authentication.
WEP/802.1x - The built-in RADIUS client feature enables
VigorAP 800 to assist the remote dial-in user or a wireless
station and the RADIUS server in performing mutual
authentication. It enables centralized remote access
authentication for network management.
The WPA encrypts each frame transmitted from the radio using
the key, which either PSK (Pre-Shared Key) entered manually
in this field below or automatically negotiated via 802.1x
authentication. Select WPA, WPA2 or Auto as WPA mode.
WPA/802.1x - The WPA encrypts each frame transmitted from
the radio using the key, which either PSK (Pre-Shared Key)
entered manually in this field below or automatically negotiated
via 802.1x authentication.
WPA2/802.1x - The WPA encrypts each frame transmitted
from the radio using the key, which either PSK (Pre-Shared
Key) entered manually in this field below or automatically
negotiated via 802.1x authentication.
Select TKIP, AES or TKIP/AES as the algorithm for WPA. Such
feature is available for WPA2/802.1x, WPA/802.1x,
WPA/PSK or WPA2/PSK or Mixed (WPA+WPA2)/PSK
mode.
Either 8~63 ASCII characters, such as 012345678..(or 64
Hexadecimal digits leading by 0x, such as "0x321253abcde...").
Such feature is available for WPA/PSK or WPA2/PSK or
Mixed (WPA+WPA2)/PSK mode.
WPA uses shared key for authentication to the network.
However, normal network operations use a different encryption
key that is randomly generated. This randomly generated key
that is periodically replaced. Enter the renewal security time
(seconds) in the column. Smaller interval leads to greater
security but lower performance. Default is 3600 seconds. Set 0
to disable re-key. Such feature is available for
70
