Draytek VigorAP 800 User Manual page 41

Channel
Extension Channel
Rate
Packet-OVERDRIVE This feature can enhance the performance in data transmission
device with SSID 1. The MAC address of other SSIDs will
change based on this MAC address.

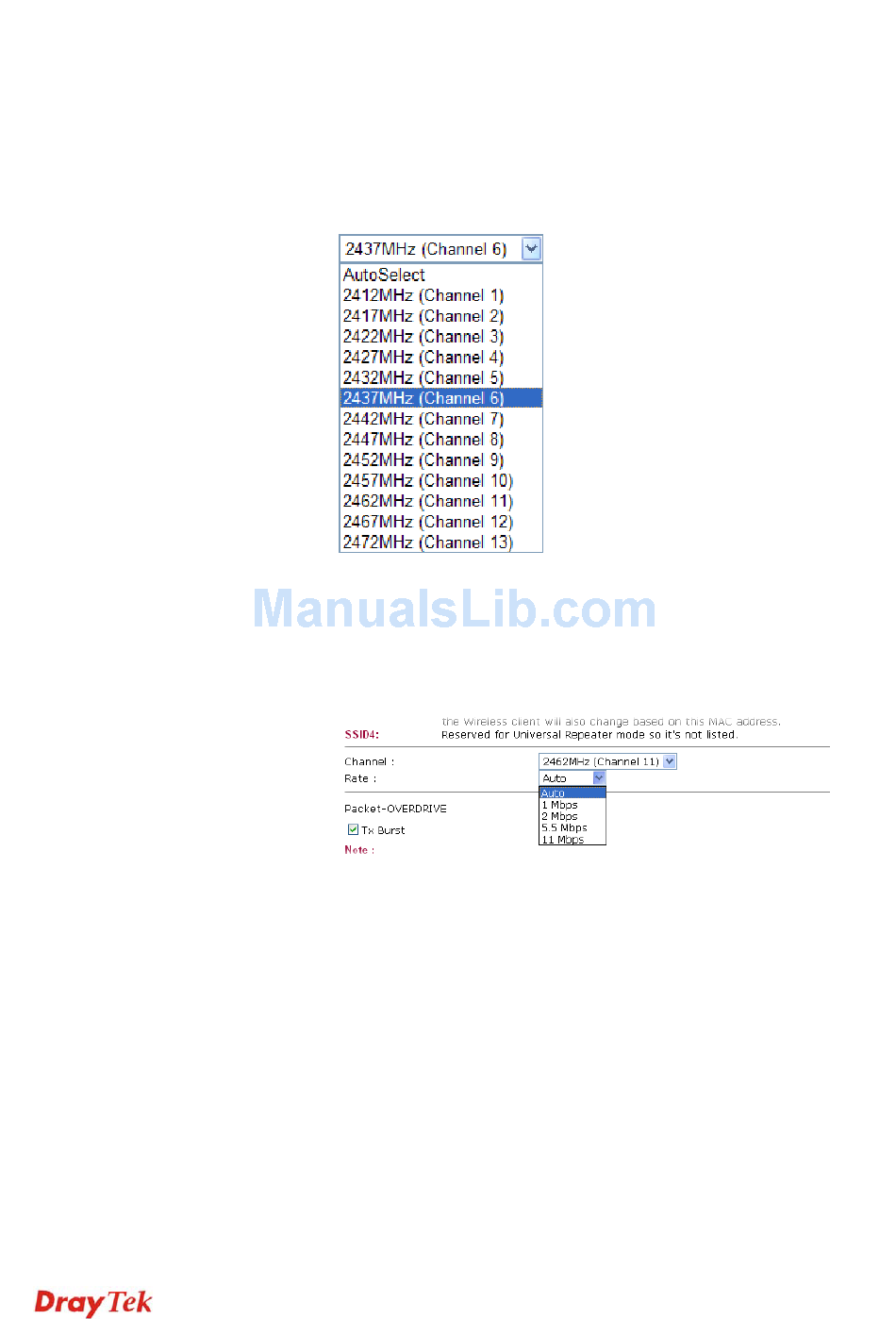

Means the channel of frequency of the wireless LAN. The default
channel is 6. You may switch channel if the selected channel is
under serious interference. If you have no idea of choosing the
frequency, please select AutoSelect to let system determine for
you.
With 802.11n, there is one option to double the bandwidth per
channel. The available extension channel options will be varied
according to the Channel selected above. Configure the extension
channel you want.
If you choose 11g Only, 11b Only or 11n Only, such feature will
be available for you to set data transmission rate.
about 40%* more (by checking Tx Burst). It is active only when
both sides of Access Point and Station (in wireless client) invoke
this function at the same time. That is, the wireless client must
support this feature and invoke the function, too.
Note: Vigor N61 wireless adapter supports this function.
Therefore, you can use and install it into your PC for matching
with Packet-OVERDRIVE (refer to the following picture of
Vigor N61 wireless utility window, choose Enable for
TxBURST on the tab of Option).
31
VigorAP 800 User's Guide
