Draytek VigorAP 800 User Manual page 66

Extension Channel
Rate
Phy Mode
Subnet
Security
Peer Mac Address
Packet-OVERDRIVE
VigorAP 800 User's Guide

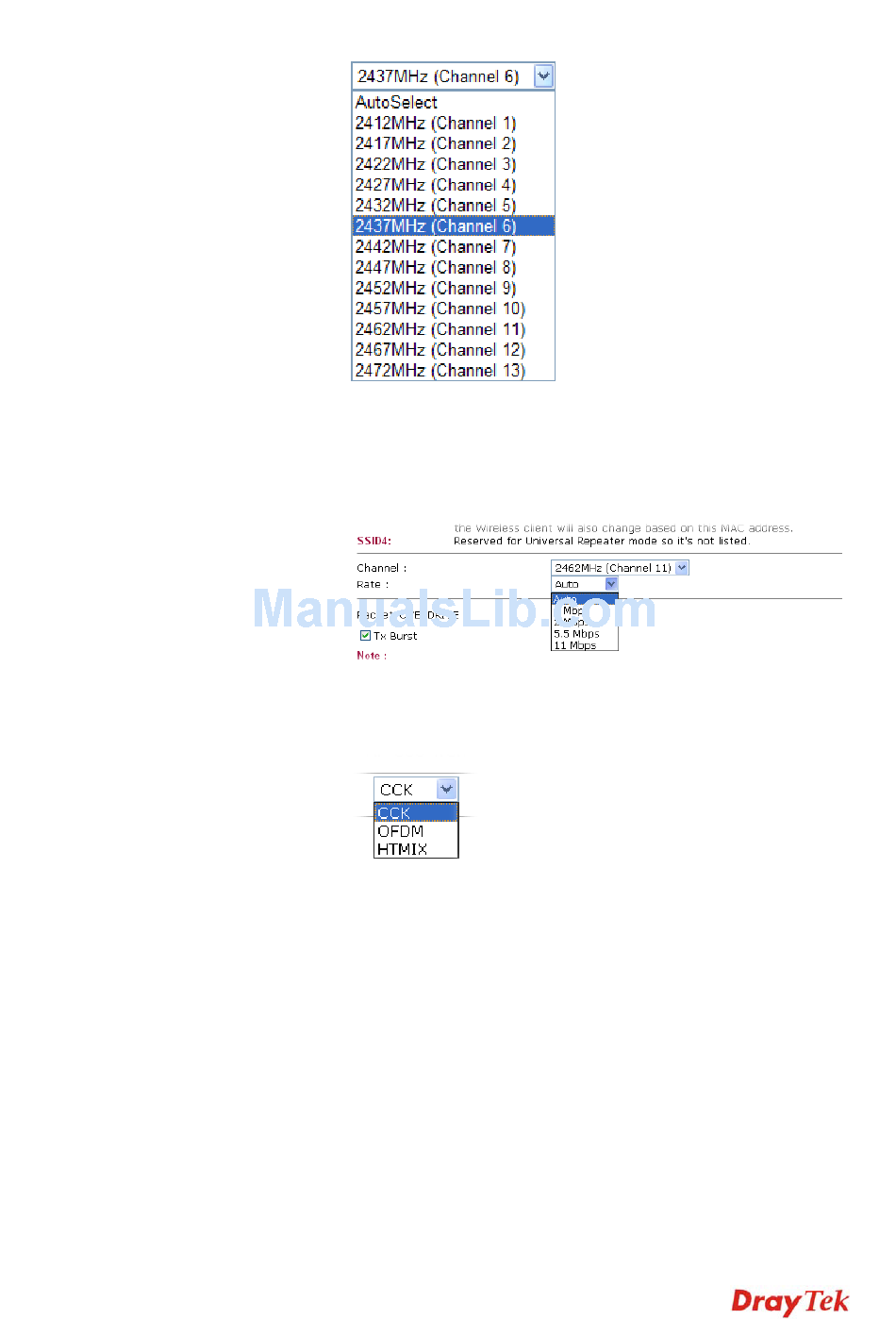

With 802.11n, there is one option to double the bandwidth per
channel. The available extension channel options will be varied
according to the Channel selected above.
If you choose 11g Only, 11b Only or 11n Only, such feature
will be available for you to set data transmission rate.
There are three types of transmission rates developed by
different techniques for Phy Mode. Data will be transmitted via
communication channel.
Choose LAN-A or LAN-B for each SSID.
Select WEP, TKIP or AES as the encryption algorithm.
Four peer MAC addresses are allowed to be entered in this page
at one time.
This feature can enhance the performance in data transmission
about 40%* more (by checking Tx Burst). It is active only
when both sides of Access Point and Station (in wireless client)
invoke this function at the same time. That is, the wireless client
must support this feature and invoke the function, too.
Note: Vigor N61 wireless adapter supports this function.
Therefore, you can use and install it into your PC for matching
with Packet-OVERDRIVE (refer to the following picture of
Vigor N61 wireless utility window, choose Enable for
TxBURST on the tab of Option).
56
