3 . 7 . 4 W P S
3 . 7 . 4 W P S

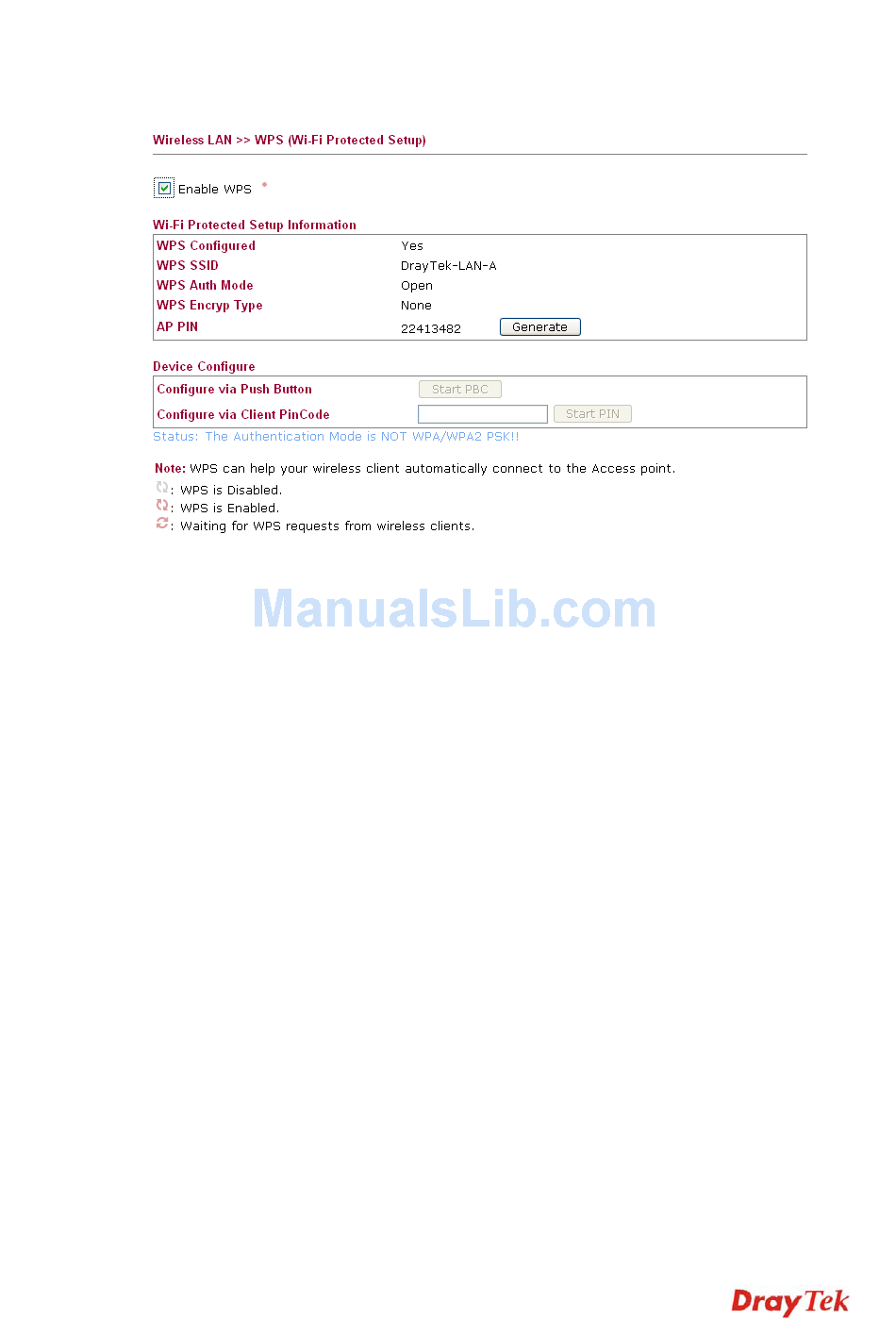

Open Wireless LAN>>WPS to configure the corresponding settings.
Enable WPS
WPS Configured
WPS SSID
WPS Auth Mode
WPS Encryp Type
AP PIN
Configure via Push
Button
Configure via Client
PinCode
3 . 7 . 5 A P D i s c
3 . 7 . 5 A P D i s c
VigorAP 800 can scan all regulatory channels and find working APs in the neighborhood.
Based on the scanning result, users will know which channel is clean for usage. Also, it can
be used to facilitate finding an AP for a WDS link. Notice that during the scanning process
(about 5 seconds), no client is allowed to connect to Vigor.
This page is used to scan the existence of the APs on the wireless LAN. Yet, only the AP
which is in the same channel of VigorAP 800 can be found. Please click Scan to discover all
the connected APs.
VigorAP 800 User's Guide
Check this box to enable WPS setting.
Display related system information for WPS. If the wireless
security (encryption) function of VigorAP 800 is properly
configured, you can see 'Yes' message here.
Display current selected SSID.
Display current authentication mode of VigorAP 800. Only
WPA2/PSK and WPA/PSK support WPS.
Display encryption mode (None, WEP, TKIP, AES, etc.) of
VigorAP 800.
The number displayed here is used for remote client entering the
registrar's PIN code in remote station to make a network
connection.
Click Start PBC to make a WPS connection within 2 minutes.
When using PinCode method, it is required to enter PIN Code
(Personal Identification Number Code, 8-digit numbers) into
Registrar.
o v e r y
o v e r y
