2 . 7 Q u i c k S t a
2 . 7 Q u i c k S t a

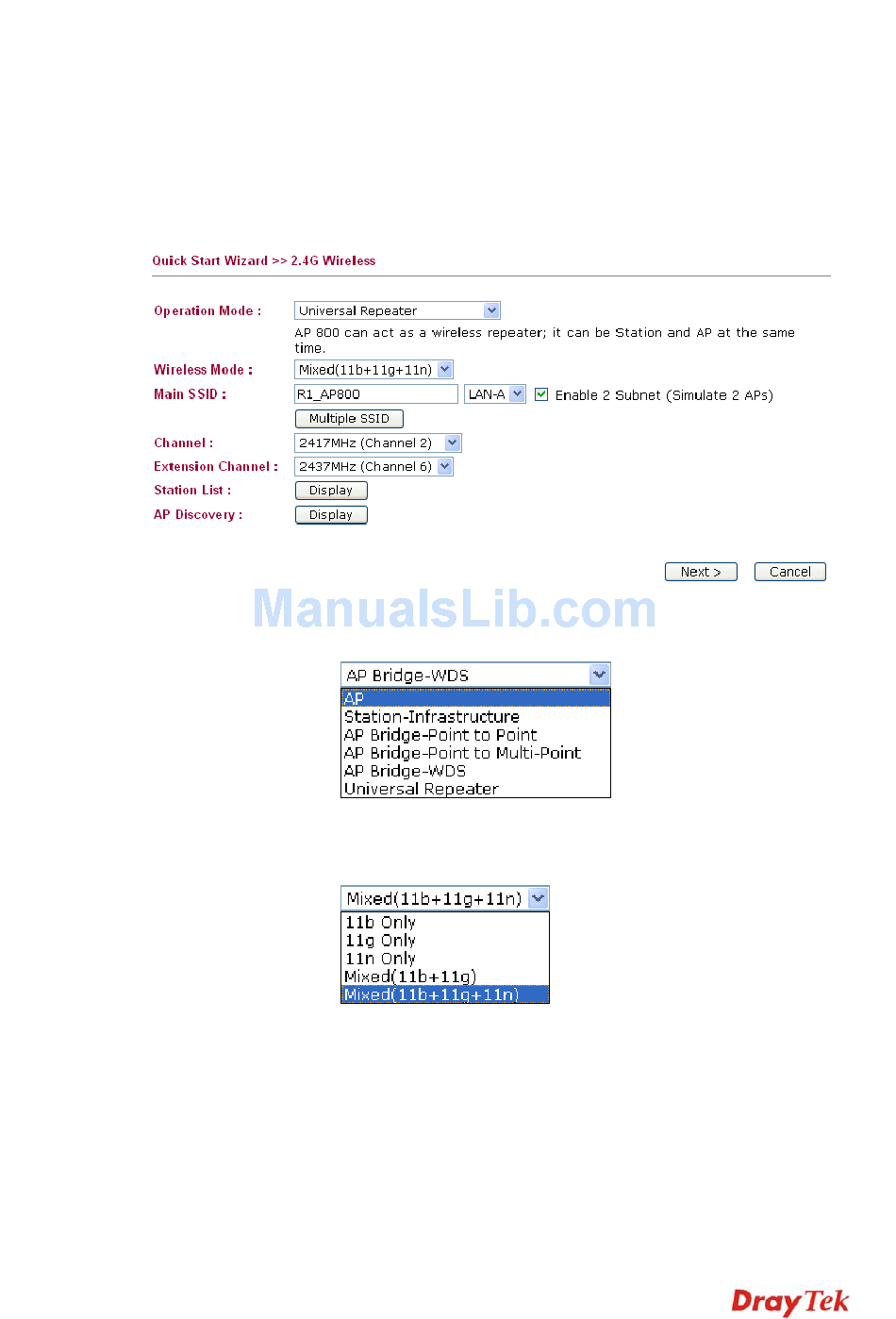

Quick Start Wizard will guide you to configure 2.4G wireless setting, 5G wireless setting
and other corresponding settings for Vigor Access Point step by step.
2 . 7 . 1 C o n f i g u
2 . 7 . 1 C o n f i g u
This page displays general settings for the operation mode selected.
Operation Mode
Wireless Mode
Main SSID
VigorAP 800 User's Guide
r t W i z a r d
r t W i z a r d
r i n g 2 . 4 G W i r e l e
r i n g 2 . 4 G W i r e l e
There are six operation modes for wireless connection. Settings
for each mode are different.
At present, VigorAP 800 can connect to 11b only, 11g only, 11n
only, Mixed (11b+11g) and Mixed (11b+11g+11n) stations
simultaneously. Simply choose Mixed (11b+11g+11n) mode.
Set a name for VigorAP 800 to be identified.
Enable 2 Subnet (Simulate 2 APs) - Check the box to enable the
function for two independent subnets. Once you enable this
function, LAN-A and LAN-B would be independent. Next, you
can connect one router in LAN-A, and another router in LAN-B.
Such mechanism can make you feeling that you have two
independent AP/subnet functions in one VigorAP 800.
If you disable this function, LAN-A and LAN-B ports are in the
same domain. You could only connect one router (no matter
s s S e t t i n g s – G e
s s S e t t i n g s – G e
16
n e r a l
n e r a l
