Installation and User Guide
V
™ Z
SHOT™ W
VIEW™ SR
ADDIO
OOM
ALL

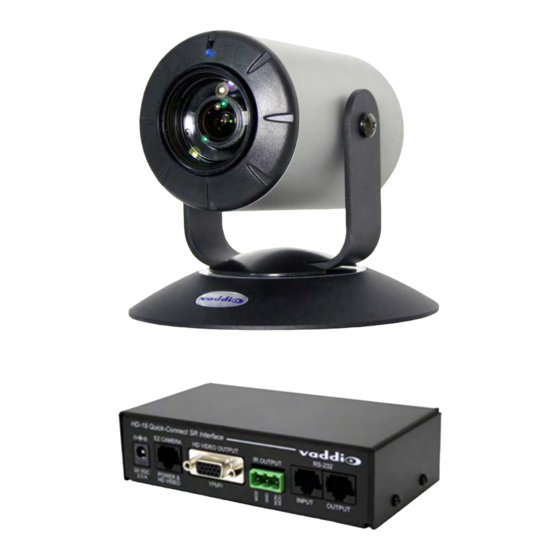

High Definition Point of View Camera System with 19X Optical Zoom
Model Number 999-6918-000 (North America)
Model Number 999-6918-001 (International)
© 2014 Vaddio - All Rights Reserved. ZoomSHOT WallVIEW SR - Document Number 342-0651 Rev B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VADDIO ZOOMSHOT WALLVIEW SR 999-6918-000
Summary of Contents for VADDIO ZOOMSHOT WALLVIEW SR 999-6918-000
- Page 1 SHOT™ W VIEW™ SR ADDIO High Definition Point of View Camera System with 19X Optical Zoom Model Number 999-6918-000 (North America) Model Number 999-6918-001 (International) © 2014 Vaddio - All Rights Reserved. ZoomSHOT WallVIEW SR - Document Number 342-0651 Rev B...
-
Page 2: Table Of Contents
Zoom SHOT WallVIEW SR ABLE OF ONTENTS Overview ..................................3 Unpacking: ................................. 4 Front View with Feature Call-outs .......................... 4 Image: ZoomSHOT HD PTZ Camera ....................... 4 Rear Panel Connections with Feature Call-outs ....................5 Image: ZoomSHOT HD Camera ........................ -
Page 3: Overview
Do not operate any device if it has been dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid conditions. -
Page 4: Unpacking
ZoomSHOT WallVIEW SR Camera System (North America): Part Number: 999-6918-000 One (1) ZoomSHOT HD Camera (998-6918-000) One (1) Vaddio IR SHOT Commander Remote One (1) Quick-Connect SR Interface One (1) 3-Position Phoenix-type Connector for IR Forwarding ... -
Page 5: Rear Panel Connections With Feature Call-Outs
Zoom SHOT WallVIEW SR Rear Panel Connections with Feature Call-outs Image: ZoomSHOT HD Camera ② ① ④ ③ 1) RS-232 & IR Out: The RS-232 accepts modified VISCA protocol for camera control, as well as transmits IR signaling received by the front IR receiver, which can be transmitted to third party devices. 2) EZ Power/Video Port: This RJ-45 connector is only used with the Quick-Connect SR, Quick-Connect DVI-D/HDMI SR Interface, Quick- Connect USB and USB Mini Interfaces to supply power and return HSDS (differential) video from the camera... -
Page 6: Quick-Connect Sr Interface
Zoom SHOT WallVIEW SR SR I UICK ONNECT NTERFACE Image: Rear Panel with Feature Call-outs ① ② ③ ④ ⑤ 1) Power Input: 5.5mm OD x 2.5mm ID coaxial connector for the provided PowerRite 24 VDC, 2.0 Amp power supply. 2) EZCamera Power &... -
Page 7: Step By Step Installation Instructions
To dress the cabling, push the extra cable back into the wall opening. Step 5: Connect the Vaddio 24 VDC, 2.0 Amp power supply to a power outlet and to the Quick Connect SR Interface. Power will travel down the EZ-POWER VIDEO Cat. 5 cable to the camera. The camera will boot up and in a few seconds, HSDS (differential) video will travel back down the Cat-5 cable and be ready to accept control information from the IR remote control or RS-232 camera controller. -
Page 8: Image: Basic Wiring Configuration
Zoom SHOT WallVIEW SR Image: Basic Wiring Configuration ZoomSHOT Rear View RS-232 & IR OUT Cat-5 For Zoom & CCU Control HSDS (differential) HD Video & 24 VDC Power One (1) Cat-5 Cable ← YPbPr (HSDS differential) → Power Rear Panel Quick-Connect SR Interface YPbPr 24VDC, 2.0 A... -
Page 9: Compliance And Ce Declaration Of Conformity - Zoomshot
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment. -
Page 10: Warranty Information
Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair. -
Page 11: Zoomshot Wallview Sr General Specifications
Zoom SHOT WallVIEW SR ZoomSHOT WallVIEW SR General Specifications: ZoomSHOT Camera System ZoomSHOT WallVIEW 999-6918-000 (North America) Part Numbers ZoomSHOT WallVIEW 999-6918-001 (International) 1/3-Type Exmor High-speed, Progressive Scan CMOS Sensor with 1.3 Megapixels Image Sensor HD: 1080/59.94/50/30/25, 1080i/59.94/50, 720p/59.94/50 Video Output Resolutions SD: 480p/59.94 &... -
Page 12: Appendix 1: Pin-Outs For Zoomshot Camera
Zoom SHOT WallVIEW SR 1: P SHOT C PPENDIX OUTS FOR AMERA Table EZCamera Power & HD Video RJ-45 Connector Pin-outs ZoomSHOT EZPOWER HD VIDEO PORT EZ POWER YPbPr Power+ HD VIDEO Power- PB - 12345678 Important Note: The EZ POWER HD VIDEO RJ-45 Connector is for use with the Quick-Connect SR, Quick-Connect DVI/HDMI SR, Quick-Connect USB and USB Mini Interfaces ONLY (568B Wiring Standard). -
Page 13: Communication Specification
TXD (to RXD of control source) NOTE: The Vaddio ZoomSHOT control protocol is similar, but not identical to the Sony® VISCA™ command set in order to be compatible with several popular control devices. Not all VISCA commands are supported and there are many ZoomSHOT specific commands in the following Command and Inquiry Lists. -
Page 14: Zoomshot Command List (2/2)
Zoom SHOT WallVIEW SR ZoomSHOT Command List (2/2) Command Set Command Command Packet Comments CAM_Memory Reset 8x 01 04 3F 00 0p FF 8x 01 04 3F 01 0p FF Recall 8x 01 04 3F 02 0p FF p:Memory No(=0-0xF) CAM_IDWrite 8x 01 04 22 0p 0q 0r 0s FF pqrs:0x0000 –... -
Page 15: Zoomshot Inquiry List (1/1)
Zoom SHOT WallVIEW SR ZoomSHOT Inquiry List (1/1) Inquiry Command Command Response Packet Comments CAM_PowerInq 8x 09 04 00 FF y0 50 02 FF y0 50 03 FF Off(Standby) CAM_ICRModeInq 8x 09 04 01 FF y0 50 02 FF On - ICR filter Out y0 50 03 FF Off –... - Page 16 ©2014 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice or obligation. Vaddio, ZoomSHOT, ProductionVIEW, WallVIEW, EZCamera, Quick-Connect and HSDS are trademarks of Vaddio. All...
