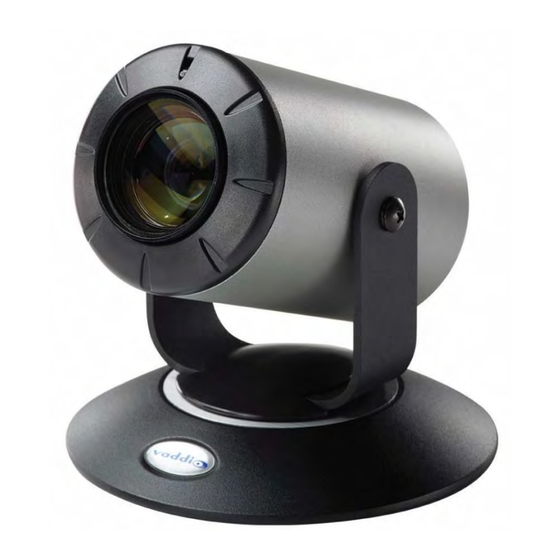

Installation and User Guide
V
™ Z
SHOT™ 20 HD POV C
ADDIO
OOM
AMERA
High Definition Camera System with 20X Optical Zoom for
use with the AV B
M
P
RIDGE
ATRIX
RO
Model Number 999-6920-000 (North America)
Model Number 999-6920-001 (International)
AV Bridge MATRIX PRO (Sold Separately)
ZoomSHOT 20 Camera for AV Bridge MATRIX PRO, Document Number 342-0962 Rev A
Page 1 of 18
Advertisement
Table of Contents
Related Manuals for VADDIO ZoomShot 999-6920-000
Summary of Contents for VADDIO ZoomShot 999-6920-000
- Page 1 Installation and User Guide ™ Z SHOT™ 20 HD POV C ADDIO AMERA High Definition Camera System with 20X Optical Zoom for use with the AV B RIDGE ATRIX Model Number 999-6920-000 (North America) Model Number 999-6920-001 (International) AV Bridge MATRIX PRO (Sold Separately) ZoomSHOT 20 Camera for AV Bridge MATRIX PRO, Document Number 342-0962 Rev A Page 1 of 18...
- Page 2 ZoomSHOT 20 for AV Bridge MATRIX PRO Inside Front Cover - Blank, Mostly ZoomSHOT 20 System for AV Bridge MARTIX PRO, Document Number 342-0962 Rev A Page 2 of 18...
-
Page 3: Table Of Contents
Step By Step Installation Instructions: ........................8 Vaddio IR SHOT Commander Remote ........................9 Image: Vaddio IR SHOT Commander Hand-held IR remote ................9 Table: ZoomSHOT 20 OSD Menu Structure ......................10 Compliance and CE Declaration of Conformity - ZoomSHOT 20 ................12 ... -
Page 4: Overview
Read and understand all instructions before using. Do not operate any device if it has been dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid conditions. -
Page 5: Unpacking
ZoomSHOT 20 System for use with the AV Bridge MATRIX PRO (Int’l): Part Number: 999-6920-000 One (1) ZoomSHOT 20, HD POV Camera (998-6920-000) One (1) Vaddio IR Shot Commander Remote (No Batteries) One (1) Thin Profile Wall Mount with Mounting Hardware Quick-Start Guide Notes: No other peripherals are included. -
Page 6: Rear Panel Connections With Callouts
ZoomSHOT 20 for AV Bridge MATRIX PRO Rear Panel Connections with Callouts Image: ZoomSHOT 20 HD Camera ② ① ④ ③ 1) RS-232 (Color Coded Blue): The RS-232 RJ-45 accepts modified VISCA protocol for camera control. 2) EZ-POWER VIDEO Port (Color Coded Orange): This RJ-45 connector is only used with the Quick-Connect SR, Quick-Connect DVI-D/HDMI SR Interface, Quick-Connect USB and USB Mini Interfaces to supply power and return HSDS (differential) video from the camera over Cat-5/5e/6 cable up to distance of 150’... -
Page 7: Diagram: Basic Wiring Configuration With Matrix Pro
ZoomSHOT 20 for AV Bridge MATRIX PRO Diagram: Basic Wiring Configuration with MATRIX PRO ZoomSHOT 20 HD POV Camera with AV Bridge Matrix PRO showing basic connectivity with color coded RJ-45 jacks. Obviously, there’s a whole bunch more stuff going on here with the MATRIX PRO, that’s why we suggested earlier that using the MATRIX PRO manual in conjunction with this brief manual for the ZoomSHOT 20 is probably your best bet. -
Page 8: Step By Step Installation Instructions
Using the HD VIDEO SELECT rotary switch and CAMERA SETTINGS dip switches on the back of the camera, set up the camera’s output resolution and functional preferences. There are tables on previous pages that identify the choices…maybe keep these tables handy for future use…or you can easily look them up on the Vaddio website (vaddio.com) when needed. -
Page 9: Vaddio Ir Shot Commander Remote
ZoomSHOT 20 and WideSHOT Camera Systems (shipped with these products) Vaddio ClearVIEW HD-18, HD-19, HD-20, PowerVIEW HD-22 and HD-30 The Vaddio IR Shot Commander is also compatible with the Sony® EVI series and the BRC series PTZ cameras. Image: Vaddio IR SHOT Commander Hand-held IR remote (Top View) - Page 10 ZoomSHOT 20 for AV Bridge MATRIX PRO SHOT 20 OSD M ABLE TRUCTURE Use this OSD menu with the IR SHOT Commander to make video adjustments (AWB, COLOR, EXP, etc…) on the HD-20SE Camera. Menu Controls Modes/Range Default Notes SSDR Dynamic Range Adjustment SSDR 0-15 *When Dynamic Range is ON...
- Page 11 ZoomSHOT 20 for AV Bridge MATRIX PRO ZoomSHOT 20 OSD Menu Structure (continued) Menu Controls Range/Modes Default Notes SPECIAL DAY/NIGHT> COLOR / B/W / AUTO COLOR Do not use DIS> OFF / ON Digital Image Stabilization - leave off DEFOG OFF / ON / MANUAL/AUTO Do not use COMM ADJUST>...
-
Page 12: Compliance And Ce Declaration Of Conformity - Zoomshot 20
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment. -
Page 13: Warranty Information
Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair. -
Page 14: General Specifications
ZoomSHOT 20 for AV Bridge MATRIX PRO ENERAL PECIFICATIONS ZoomSHOT 20 System for MATRIX PRO Part Numbers ZoomSHOT 20 System for AV Bridge Matrix PRO, 999-6920-000 (Worldwide) Image Sensor 1/2.8-Type Exmor CMOS Image Sensor Total/Effective Pixels 2.38 Million Total Pixels, 2.14 Million Effective pixels Video Output Resolutions HD: 1080/59.94/50/30/25, 1080i/59.94/50, 720p/59.94/50, 16:9 Aspect Ratio Lens/ Focal Length... -
Page 15: Communication Specification
TXD (to RXD of control source) No Flow control NOTE: The Vaddio ZoomSHOT 20 Control Protocol is similar, but not identical to, the Sony® VISCA™ command set in order to be compatible with several popular control devices. Not all VISCA commands are supported and there are many HD-Series specific commands in the following Command and Inquiry Lists. -
Page 16: Zoomshot 20 Command List (2/2)
ZoomSHOT 20 for AV Bridge MATRIX PRO ZoomSHOT 20 Command List (2/2) Command Set Command Command Packet Comments CAM_Backlight 8x 01 04 33 02 FF 8x 01 04 33 03 FF CAM_Aperture Reset 8x 01 04 02 00 FF 8x 01 04 02 02 FF Down 8x 01 04 02 03 FF Direct... -
Page 17: Zoomshot 20 Inquiry List (1/1)
ZoomSHOT 20 for AV Bridge MATRIX PRO ZoomSHOT 20 Inquiry List (1/1) Inquiry Command Command Response Packet Comments CAM_PowerInq 8x 09 04 00 FF y0 50 02 FF y0 50 03 FF Off(Standby) CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqr: 0-0x071A CAM_FocusPosInq 8x 09 04 48 FF... - Page 18 ©2015 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice or obligation. Vaddio, ZoomSHOT, ProductionVIEW, EZCamera, Quick-Connect and HSDS are trademarks of Vaddio. All other trademarks are...
