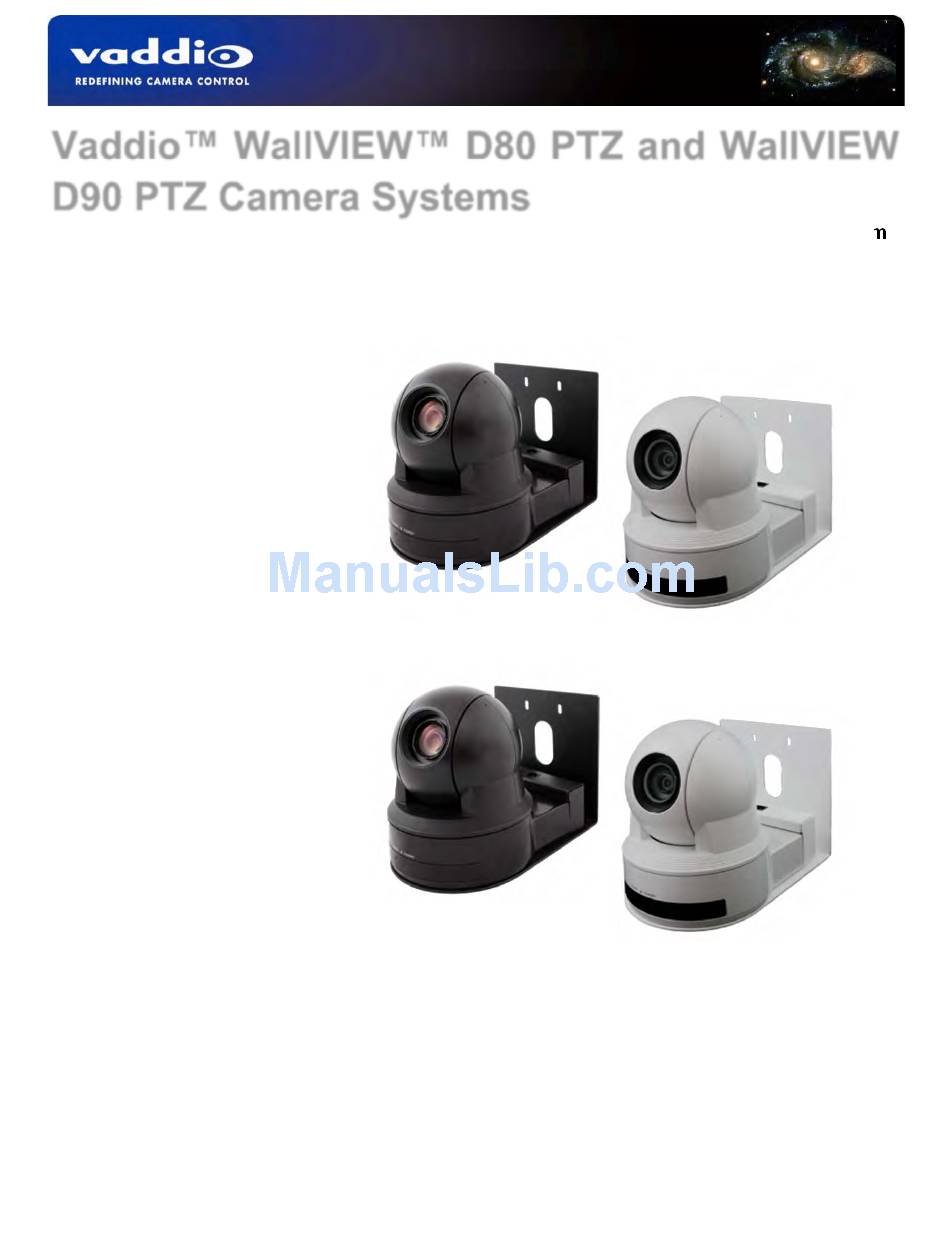

Installation and User Guide
Vaddio™ WallVIEW™ D80 PTZ and WallVIEW
D90 PTZ Camera Systems
Wall Mounted Pan/Tilt/Zoom Camera Systems using Vaddio's EZCamera™ Cabling System
Part Numbers:
WallVIEW D90 PTZ
999-2694-000 - NTSC - Black
999-2694-000W - NTSC - White
999-2694-001 - PAL - Black
999-2694-001W - PAL - White
WallVIEW D80 PTZ
999-2684-000 - NTSC - Black
999-2684-000W - NTSC - White
999-2684-001 - PAL- Black
999-2684-001W - PAL - White
© 2012 Vaddio - All Rights Reserved. Specifications are subject to change without prior notice. Document Number 342-0505 Rev A
Advertisement
Table of Contents
Related Manuals for VADDIO WallVIEW D80 PTZ
Summary of Contents for VADDIO WallVIEW D80 PTZ
- Page 1 WallVIEW D80 PTZ 999-2684-000 - NTSC - Black 999-2684-000W - NTSC - White 999-2684-001 - PAL- Black 999-2684-001W - PAL - White © 2012 Vaddio - All Rights Reserved. Specifications are subject to change without prior notice. Document Number 342-0505 Rev A...
-
Page 2: Table Of Contents
Table/Diagram: RS-232 OUT Connection for Daisy Chain Support, RJ-45 Pin-outs ........11 Image: Quick-Connect Box ..........................11 Table/Diagram: Power/Video Connection, RJ-45 on Quick-Connect Box ............11 © 2012 Vaddio - All Rights Reserved. Document Number 342-0505 Rev A Page 2 of 12... -
Page 3: Overview
Read and understand all instructions and warranty statements before using. Do not operate any device if it has been dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid conditions. -
Page 4: Unpacking
999-2684-001W - PAL - White One (1) Sony EVI-D80P/W - White, PAL Camera One Peripheral Set with Euro and UK Power Cords, White Mount and Shoe © 2012 Vaddio - All Rights Reserved. Document Number 342-0505 Rev A Page 4 of 12... -
Page 5: Installation
All cabling is routed to the head-end using Cat-5 cabling with the EZCamera Cabling system. Note: The WallVIEW D80 PTZ and the WallVIEW D90 PTZ can be located 200’ (61m) from the Quick-Connect Box with power supply at the head end. -
Page 6: Diagram: Daisy Chain Control Configurations
WallVIEW D80 PTZ and WallVIEW D90 PTZ Manual Diagram: Daisy Chain Control Configurations The WallVIEW D80 PTZ and WallVIEW D90 PTZ are capable of supporting a daisy chain control configuration using a non-Vaddio controller (Sony Joystick or correctly written Crestron or AMX program). Vaddio controllers support only direct connect, star wiring configurations for control because daisy chaining introduces another level of fault (Murphy’s Law) that makes for some tricky, time consuming system troubleshooting. -
Page 7: Image: Pcba Inside The Shoe
Video RCA Image: Attaching the Shoe WallVIEW D80 PTZ - White shown with EZCamera Cable Shoe. Carefully slide the shoe into place taking care to seat the male connections firmly into place. Do not force the shoe onto the connectors. It should slide into place and make positive connection with a minimum of effort. -
Page 8: Finishing The Install
Verify all connections. Connect only the Vaddio supplied power supply to an AC outlet. Power will travel down the Cat-5 cable to the shoe, which regulates and supplies 12 VDC to the camera. The camera will “Home” to a centered position ready for control information from the provided Vaddio IR Remote Commander or RS-232 camera controller of the integrators’... -
Page 9: Warranty Information
Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty and is found to be defective. If the product is out of warranty, Vaddio will test then repair the product or products. -
Page 10: Appendix 1
Not Used Pin - 6 Digital GND Pin - 7 RXD (from TXD of control source) Pin - 8 TXD (to RXD of control source) © 2012 Vaddio - All Rights Reserved. Document Number 342-0505 Rev A Page 10 of 12... -
Page 11: Table/Diagram: Rs-232 Out Connection For Daisy Chain Support, Rj-45 Pin-Outs
Y (Luminace) 12345678 Pin - 5 Video GND Pin - 6 C (Chrominance) Pin - 7 Video GND Pin - 8 Composite Video (CVBS) © 2012 Vaddio - All Rights Reserved. Document Number 342-0505 Rev A Page 11 of 12... - Page 12 ©2012 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice. Vaddio, WallVIEW, Quick-Connect, EZCamera, EZCable, and PowerRite are trademarks of Vaddio. All other trademarks ©...
