VADDIO WallVIEW 70 PTZ Features & Specifications

WallVIEW
Pan/Tilt/Zoom Camera System

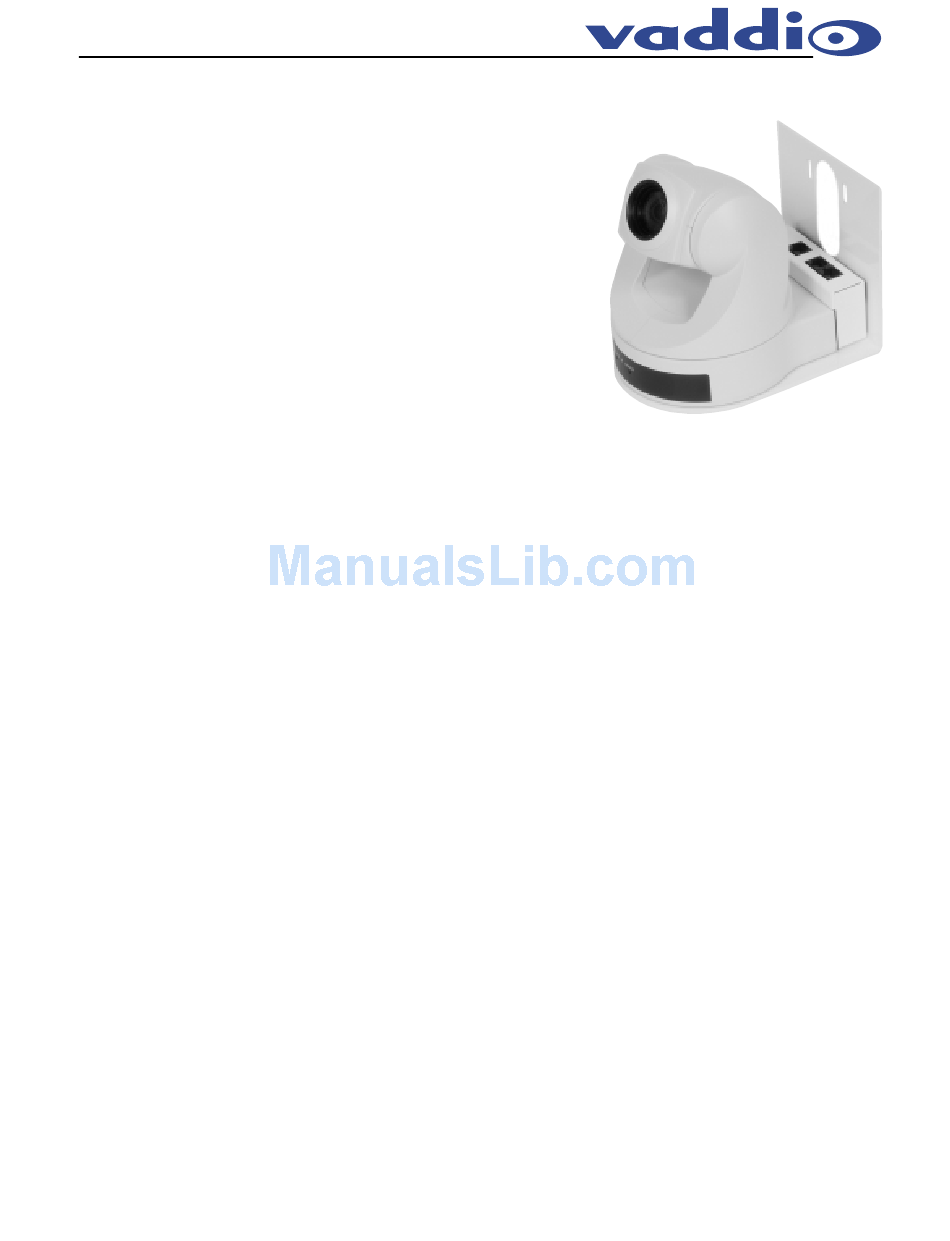

Vaddio's WallVIEW 70 PTZ is a complete Wall-Mounted
Pan/Tilt/Zoom Camera System. The system includes
®
a Sony EVI-D70 PTZ Camera, a thin profile
wall-mount bracket for the camera and a Vaddio
™
EZCamera Cabling System. The EZCamera Cabling
System allows the installer to use Cat. 5 cabling to run
power, video and camera control. Also included is
Vaddio's PowerRite
system regulates the right amount of power needed for the camera over Cat. 5 cabling.
What's Included
The Vaddio WallVIEW 70 PTZ includes the
following items:
• Sony EVI-D70C/W PTZ Camera
• Vaddio IR Remote Commander for Sony
cameras
• Vaddio EZCamera Cable Shoe Interface
• Thin profile wall-mount bracket (matching
color)
• 12' (3.66m) S-Video cable
• 12' (3.66m) Composite video cable with
(RCA connectors)
• Vaddio Quick-Connect Box
• EZCamera Control Adapter
• 15 VDC PowerRite Power Supply with power
cable, EURO and UK power cables are included
with PAL cameras
• Mounting hardware

Technical Features

Sony EVI-D70 PTZ Camera
A ceiling and wall-mountable PTZ camera
equipped with a 18X optical and 12X digital
zoom lens. A wider pan and tilt range, VISCA
camera control, six preset positions and a IR
remote control.
™
™
Power Supply. The PowerRite
70 PTZ

Thin Profile Camera Wall-Mount Bracket

Custom PTZ camera wall-mount bracket
designed exclusively for the Sony EVI-D70
Camera. Heavy-duty metal construction with
cable access openings for in-wall or exposed
wall installations. Includes tripod screw and
mounting hardware.

EZCamera Cabling System

Allows installer to use Cat. 5 cable to run power,
video and camera control. Video Balun technology
is used to extend the range of the video signal
and to allow it to work on Cat. 5 cable. The
Vaddio PowerRite Camera Power System
includes a high output power supply and a
power regulator to maintain the right voltage
over Cat. 5 cable.

EZCamera Shoe Interface

A plug-in shoe that intergrates the Sony EVI-D70
Camera to the EZCamera Cable System. The
shoe interface converts camera outputs to three
RJ-45 jacks. The first jack provides power and
video. The second jack provides primary
camera control signaling and the third provides
daisy-chain camera control to additional Sony
PTZ Cameras.

EZCamera Quick-Connect Box

This small interface box converts power, S-Video
and composite video into a single Cat. 5 cable.
