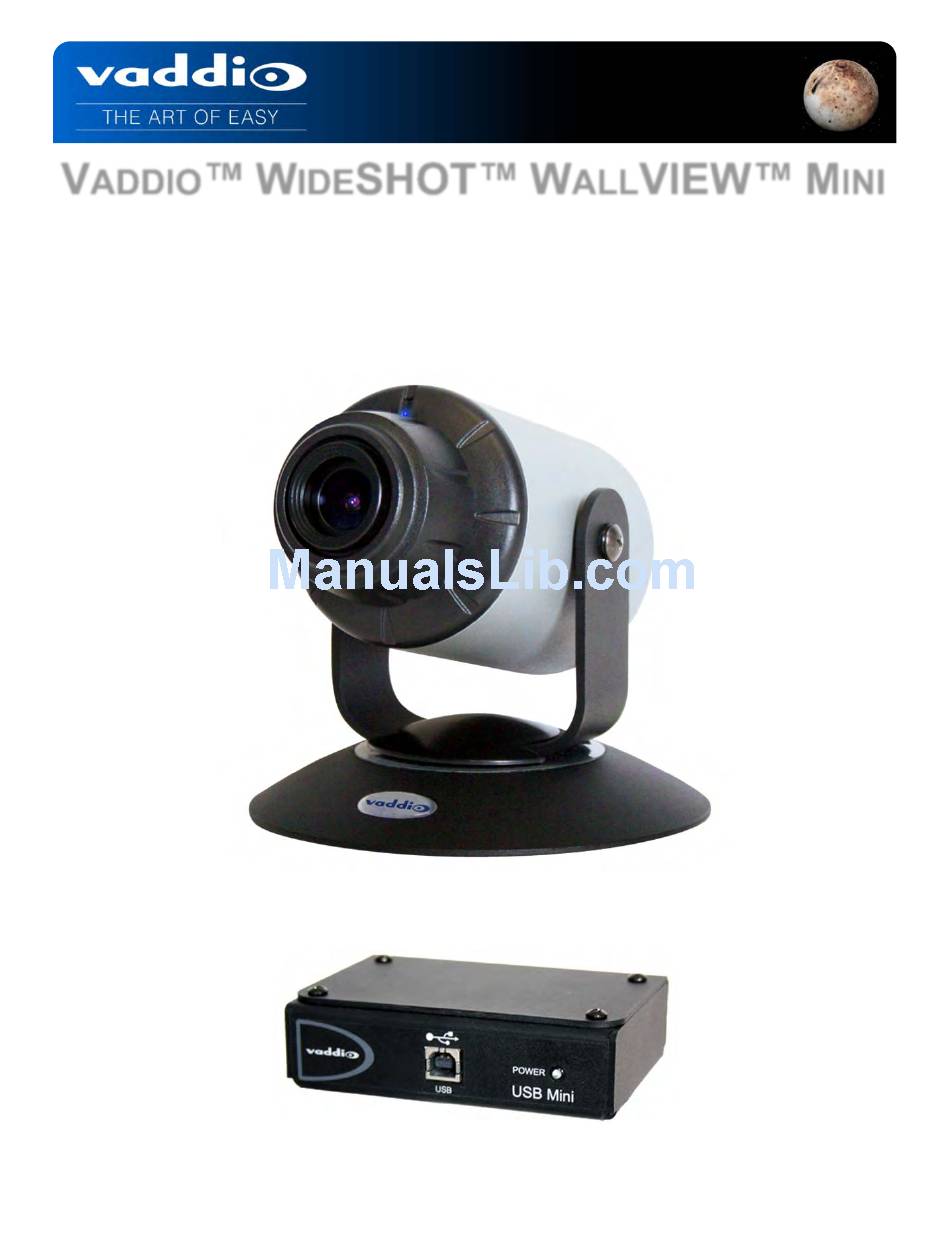

Installation and User Guide
V
™ W
SHOT™ W
VIEW™ M
ADDIO
IDE
ALL
INI
Wide Angle HD Point of View Camera System with a 82.2° Horizontal
Field of View and the Quick-Connect™ USB Mini Interface
Model Number 999-6911-100 (North America)
Model Number 999-6911-101 (International)
WideSHOT WallVIEW Mini, Document Number 342-0710 Rev. A
Page 1 of 32
Advertisement
Table of Contents
Related Manuals for VADDIO WIDESHOT WALLVIEW MINI 999-6911-100
Summary of Contents for VADDIO WIDESHOT WALLVIEW MINI 999-6911-100
- Page 1 Installation and User Guide ™ W SHOT™ W VIEW™ M ADDIO Wide Angle HD Point of View Camera System with a 82.2° Horizontal Field of View and the Quick-Connect™ USB Mini Interface Model Number 999-6911-100 (North America) Model Number 999-6911-101 (International) WideSHOT WallVIEW Mini, Document Number 342-0710 Rev.
- Page 2 WideSHOT WallVIEW Mini Inside Front Cover - Blank WideSHOT WallVIEW Mini, Document Number 342-0710 Rev A Page 2 of 32...
-
Page 3: Table Of Contents
WideSHOT WallVIEW Mini ABLE OF ONTENTS Overview ..........................................4 Unpacking ..........................................5 Front View with Feature Call-outs ..................................5 Image: WideSHOT HD Camera ..................................5 Setting the WideSHOT Lens ....................................6 Image: WideSHOT Focus Knob Removal ..............................6 Image: Adjusting the HD Varifocal Optical Zoom Lens ..........................6 Rear Panel Connections with Feature Call-outs .............................. -
Page 4: Overview
IR remote. The USB Mini is the latest product in the popular Vaddio Quick-Connect product line. Designed to address the demands of customers and integrators who required simple and effective USB 2.0, 720p/30 streaming and capture capabilities without the need for local analog or digital video outputs. -
Page 5: Unpacking
Part Number: 999-6911-001 One (1) WideSHOT HD Camera (998-6918-000) One (1) Vaddio IR SHOT Commander Remote with One-sheet Guide(Int’l pack-out) One (1) Quick-Connect USB Mini Interface (998-1105-039) One (1) 6’ (1.83m) USB 2.0 Type-A Male to Type-B Male Cable (Black) ... -
Page 6: Setting The Wideshot Lens
WideSHOT WallVIEW Mini Setting the WideSHOT Lens Image: WideSHOT Focus Knob Removal You may ask, “Why would anyone want to remove the focus knob?” The answer is directly correlated with the quality of this wide-angle HD lens. It is not a plastic “webcam”, but instead it is an exceptional quality glass lens, rated up to 3-megapixel with a 3.3mm to 10.5mm precision varifocal optical zoom lens with manual iris, focus and zoom controls. -
Page 7: Rear Panel Connections With Feature Call-Outs
WideSHOT WallVIEW Mini Rear Panel Connections with Feature Call-outs Image: WideSHOT HD Camera Rear View ② ① ④ ③ 1) RS-232 & IR Out: The RS-232 accepts modified VISCA protocol for camera control, as well as transmits IR signaling received by the front IR receiver, which can be transmitted to third party devices. The WideSHOT will not react to the remote if the IR is off. -
Page 8: Ir Shot Commander Remote
The Vaddio IR SHOT Commander, designed to work with the Vaddio ZoomSHOT and WideSHOT camera systems, is compatible with all the Vaddio PTZ cameras. The Vaddio IR SHOT Commander is compatible with the following Vaddio camera packages: All ZoomSHOT and WideSHOT Camera Systems are shipped with this IR remote. -
Page 9: Table: Wideshot Osd Menu Structure
WideSHOT WallVIEW Mini Table: WideSHOT OSD Menu Structure Use this OSD menu with the IR SHOT Commander Remote to make video adjustments (Picture, COLOR, EXP, etc…) on the WideSHOT Camera. Using the IR SHOT Commander Remote is the easiest way to set the camera’s color and overall picture attributes Menu Controls... -
Page 10: Quick-Connect Usb Mini
WideSHOT WallVIEW Mini USB M UICK ONNECT Image: Front Panel with Feature Call-outs ➋ ➊ 1) USB Port: USB Type-B port for connectivity to streaming or capture computer. 2) Power LED: Indicates presence of 24 VDC power for the Quick-Connect. The USB Mini will automatically show up as a native USB 2.0 device on the connected computer. -
Page 11: Diagram: Basic System Configuration Wideshot With Usb Mini
WideSHOT WallVIEW Mini Diagram: Basic System Configuration WideSHOT with USB Mini Local Two (2) Cat-5 Cables Power Distance up to 150’ (15.26m) 24 VDC ◄ ▶ HD Video from Camera - Power to Camera Serial Control (RS-232) WideSHOT HD Camera Quick-Connect USB Mini Rear Panel (above), Front Panel (below) USB 2.0... -
Page 12: Step By Step Wideshot Wallview Mini Installation Instructions
Verify the blue LED power light on the USB Mini and the blue LED on the Vaddio camera are illuminated. WideSHOT WallVIEW Mini, Document Number 342-0710 Rev A... -
Page 13: Usb Mini Details
USB Mini should show up on the connected computer as a UVC video USB 2.0 peripheral (more on this later). STEP 9: Connect the Vaddio 24 VDC, 2.08 Amp power supply to a power outlet and to the Mini USB Interface. -
Page 14: Framing The Wideshot's Video Shot
WideSHOT WallVIEW Mini SHOT’ RAMING THE IDEO When framing the shot with a WideSHOT Camera, consider and review the following elements: The area should be well lit and without reflective surfaces. For wall surfaces, use a flat paint or wall coverings to minimize audio reflections. Use neutral colors, for example; pale grey, pale blue or colors that are easy for any camera to process. -
Page 15: Compatibility
Linux Evolving Compatibilities: As more UC soft-client and lecture capture programs are released and gain popularity, Vaddio will provide a continuing research and development effort to ensure the compatibility with other manufacturer’s products. USB 2.0 UVC Drivers The USB 2.0 UVC (Universal Video Class) video driver resolution table is an internal list of resolutions available for the Host PC and the Quick-Connect USB to negotiate and use for any approved/tested USB application. -
Page 16: Internal Web Pages And Control
WideSHOT WallVIEW Mini NTERNAL AGES AND ONTROL The internal web pages will allow control of the Quick-Connect USB and control of the attached camera via a network connection. These web pages will allow the user or administrator to set security passwords, change the IP address, view diagnostics, access the firmware upgrade page and more! Quick-Connect USB Web Pages Tour: Screen Shot: Login... - Page 17 User can recall these presets by clicking on Custom A, B or C. 2) Preset Lighting Scenes Six preconfigured lighting presets were set by the technical folks at Vaddio (really…Scott set all the presets) that are meant to be used in certain lighting conditions or scenarios. These lighting presets include; Automatic, Incandescent Hi, Incandescent Lo, Fluorescent Hi, Fluorescent Lo and Outdoor (character limitations are why the names are spelled so gnarly).
- Page 18 WideSHOT WallVIEW Mini Screen Shot: Admin Menu - Camera Settings Page (Adjustable in web server mode only) The Camera Settings page provides the parameters to allow the end user to match the camera to the environment, set the CCU presets and make startup assignments. ➊...
- Page 19 WideSHOT WallVIEW Mini Gain: Move adjustment slider as required for amount of Iris Gain desired. Numeric value will be displayed in the box to the right of the slider. Auto White Balance check box: When checked, camera will operate in Auto White Balance Mode, when unchecked, the camera will be in Manual White Balance Mode to allow for adjustment of Red and Blue Gain.
-
Page 20: Screen Shot: Admin Menu - Networking
WideSHOT WallVIEW Mini Screen Shot: Admin Menu - Room Labels The Room Labels menu allows the administrator to label the company name, room name, room phone and help phone on a per USB Mini basis. The labels appear on every page at the top/middle of the page. Simply enter the room information and click Save. -
Page 21: Screen Shot: Admin Menu - Security
“admin” password at any given time. If changes are made, click on Save to store the change. Screen Shot: Admin Menu - Diagnostics Diagnostics menu button will display a set of self-diagnostics. These diagnostics may help the Vaddio technical support team diagnose a problem with the USB Mini and the attached camera. -
Page 22: Screen Shot: Admin Menu - System Menu
After clicking on “Begin Firmware Update…” a confirmation pop-up and warning will be displayed. Please contact Vaddio Technical Support for assistance with updates if required. Please read and completely understand the pop-up warnings as it is easy to lose patience waiting for updates. Click on continue to start the update. -
Page 23: Screen Shot: Admin Menu - Update In Progress
Screen Shot: Admin Menu - Help Service/Help information can be found under the Help menu. Support phone numbers and e-mail, manuals, FAQ’s and System information is listed on this page. Have this page open when calling Vaddio Tech Support. TECHNICAL SUPPORT NOTE: Please work with your Network Administrator prior to calling Vaddio for technical support. -
Page 24: Connecting The Usb Mini And Wideshot To The Pc And Program Of Choice
The Quick-Connect USB and attached camera are compatible with many programs and media players. The following is an attempt to generally describe the steps to plug in the QC-USB with a Vaddio camera and get an image in a couple of popular programs. -
Page 25: General Specifications
WideSHOT WallVIEW Mini ENERAL PECIFICATIONS WideSHOT WallVIEW USB Part Numbers WideSHOT WallVIEW Mini System 999-6911-100 (North America) WideSHOT WallVIEW Mini System 999-6911-101 (International) WideSHOT Camera Image Sensor 1/3-Type Progressive Scan CMOS Sensor with 1.3 Megapixels (720p native) Video Output Resolutions HD: 1080/59.94/50/30/25, 1080i/59.94/50, 720p/59.94/50 SD: 480p/59.94 &... -
Page 26: Compliance And Ce Declaration Of Conformity For Wideshot
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment. -
Page 27: Compliance And Ce Declaration Of Conformity For Usb Mini
Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment. ICES-003 Compliance... -
Page 28: Warranty Information
Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair. -
Page 29: Appendix 1: Pin-Outs For Ez-Power Video Cameras And Usb Mini
WideSHOT WallVIEW Mini 1: P EZ-P USB M PPENDIX OUTS FOR OWER IDEO AMERAS AND Table: EZ-POWER VIDEO RJ-45 Connector Pin-outs Signal EZ-POWER Pin - 1 Power+ VIDEO Pin - 2 Power- Pin - 3 Pin - 4 12345678 Pin - 5 PB - Pin - 6 Pin - 7... -
Page 30: System Notes
WideSHOT WallVIEW Mini YSTEM OTES WideSHOT WallVIEW Mini, Document Number 342-0710 Rev A Page 30 of 32... - Page 31 WideSHOT WallVIEW Mini Inside Rear Cover - Blank WideSHOT WallVIEW Mini, Document Number 342-0710 Rev A Page 31 of 32...
- Page 32 ©2014 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice or obligation. Vaddio, WideSHOT, ZoomSHOT, WallVIEW, EZCamera, EZIM, Quick-Connect and HSDS are trademarks of Vaddio.
